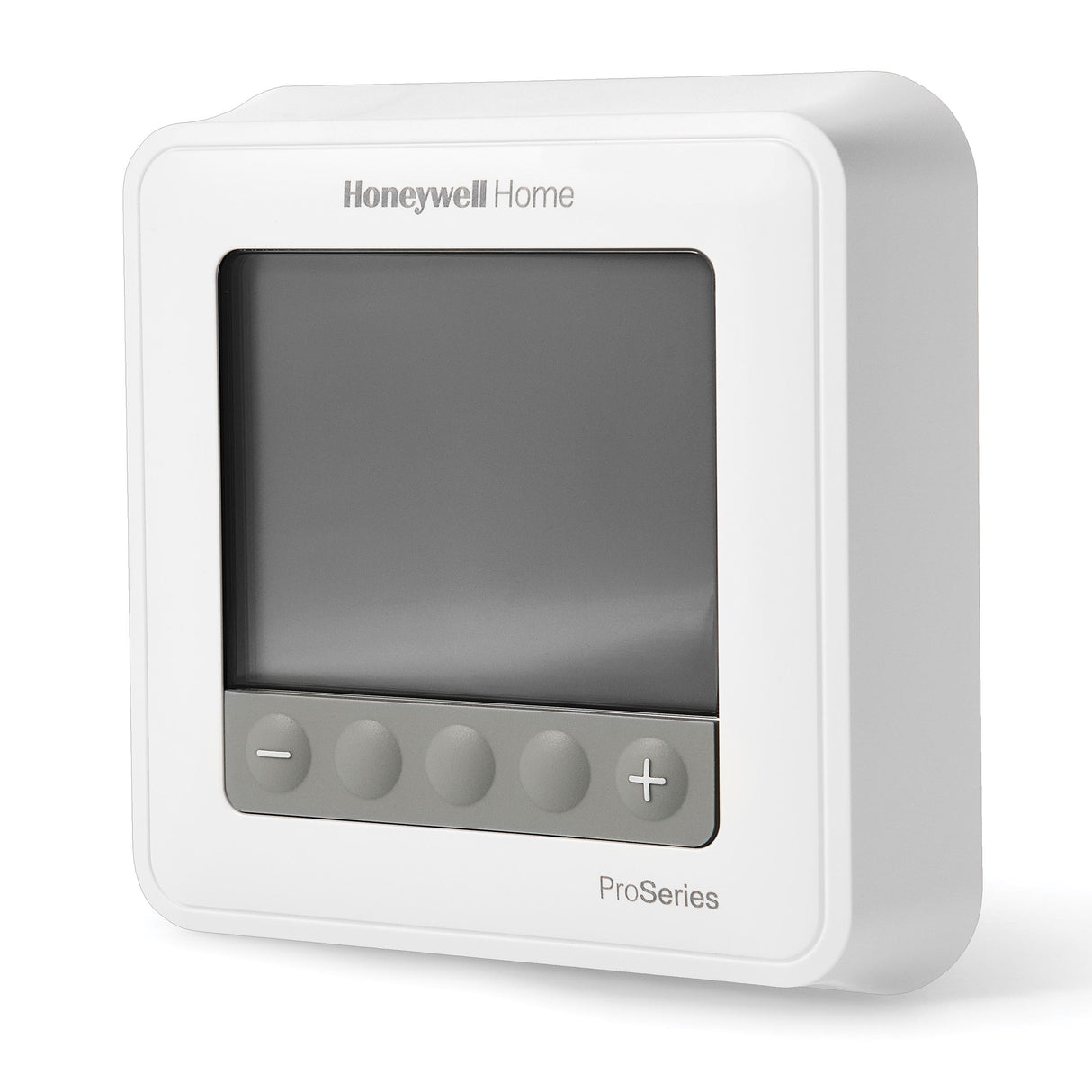

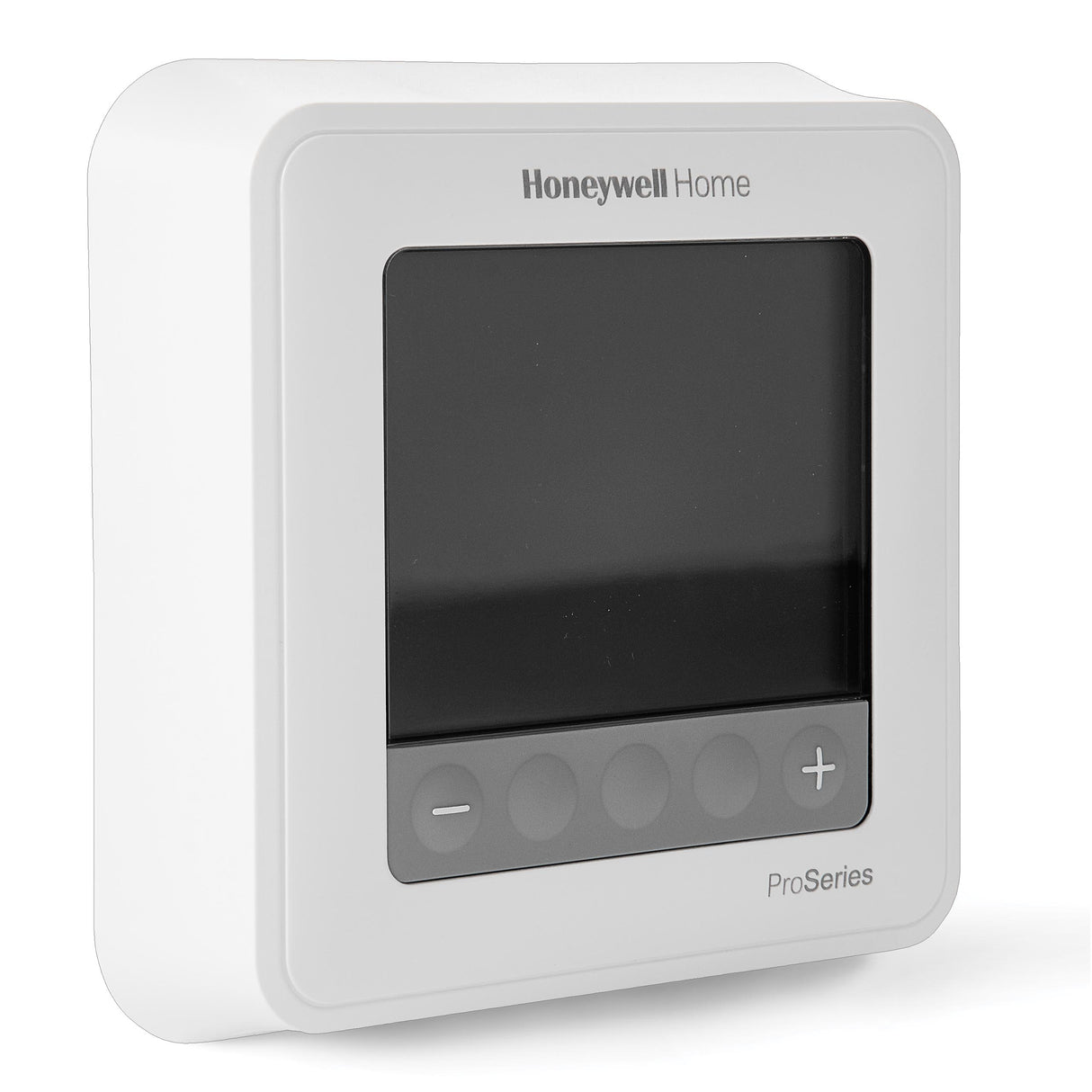

Honeywell Residential TH6100AF2004 T6 Pro Single Stage Heat Only Hydronic Programmable Thermostat

Product Description

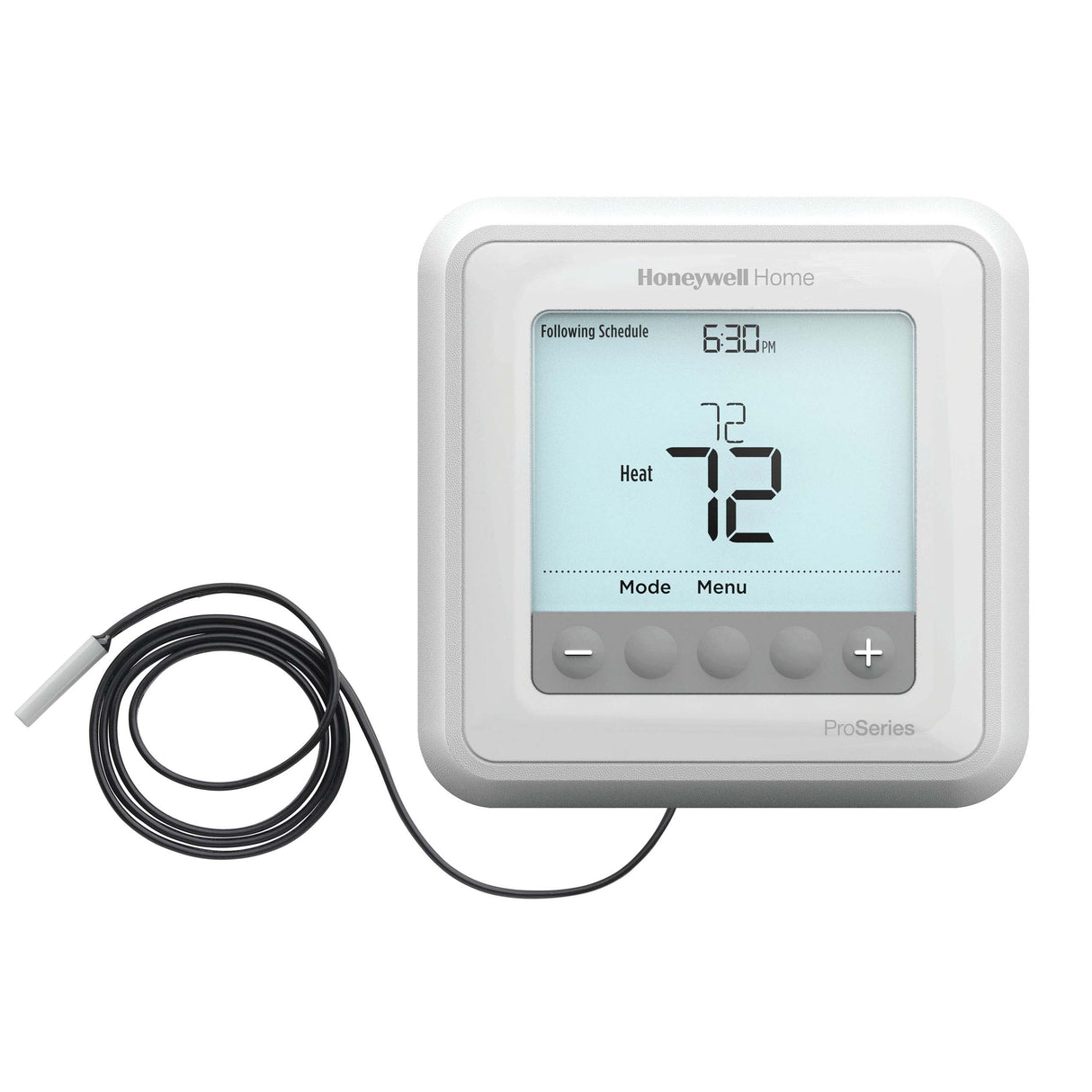

The Honeywell Residential TH6100AF2004 Programmable Thermostat is a 24-volt device designed to maximize energy efficiency in hydronic heating systems. It features customizable settings providing precise temperature control. The thermostat can control ambient air temperature, floor temperature, or both, with a range of 40-90°F. Includes a slab/floor sensor for accurate temperature control.

• Single-stage heat-only operation
• Programmable settings for optimal temperature management
• Optional AQ12C20 floor sensor for accurate temperature readings

Product Highlights

This thermostat offers reduced energy consumption through precise temperature control and enhanced comfort levels with customizable heating schedules.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: TH6100AF2004

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: TH6100AF2004
• Item Number: TH6100AF2004
• Type: Thermostat
• Product Line: T6
• Stages: Up to 1 Heat Hot Water and Steam
• Switch Contact Type: Digital
• Voltage Type: 24
• Programmable: Programmable
• Power Source: Battery, Hardwired
• Battery Type: AA
• Battery Included: Yes
• Product Height: 4 1/16 Inches
• Product Width: 4 1/16 Inches
• Product Depth: 1 1/12 Inches
• Warranty: 5 Years
• Application: Hot water heat only with floor sensor

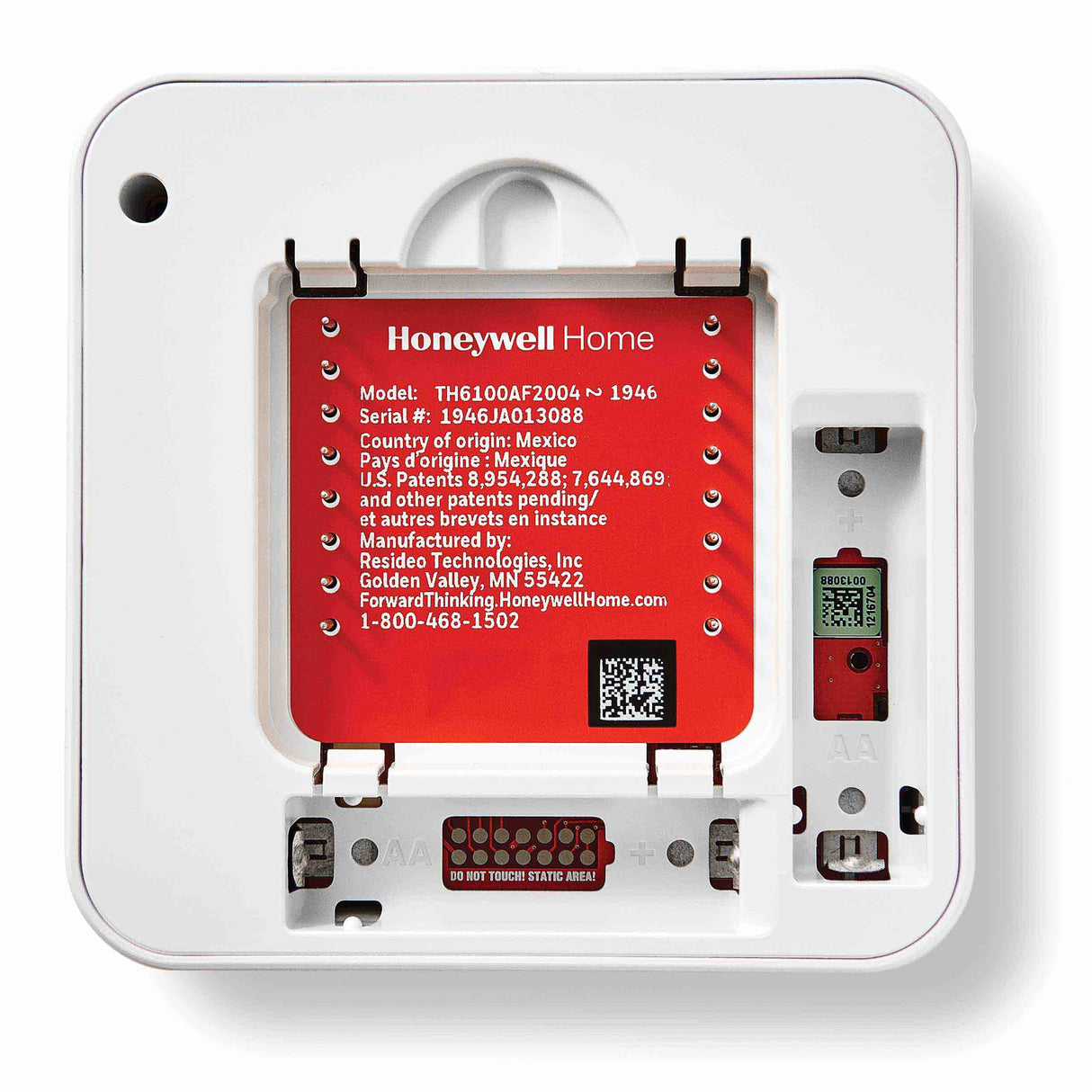

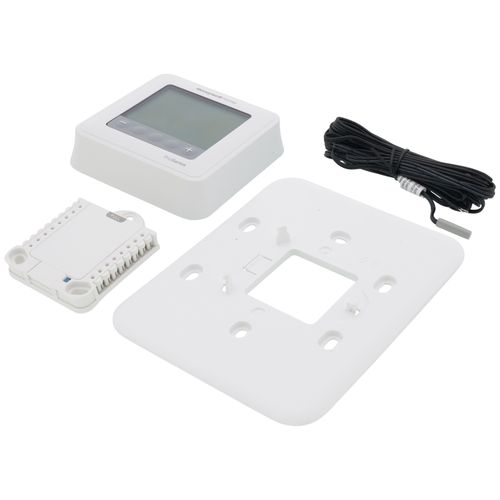

• UWP Mounting System: UWP Mounting System
• Electrical Ratings: 20 to 30 Vac
• Electrical Connections: Honeywell UWP Mounting System
• Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
• Supply Voltage: 20 to 30 Vac
• Switch Positions (System): HEAT-OFF
• Switch Positions (Fan): none
• Operating Temperature Range (F): 37 F to 102 F
• Shipping and Storage Temperature Range (F): – 20 F to 120 F
• LEDS: LED Back Light
• Differential Temperature (F): ± 1 F
• Ambient Temperature Range (F): 32 F to 120 F
• Switch Type: Relay
• Terminal Designations: RC, R, C, W, S, S
• Display: LCD
• Display Size: 5.44 sq. in.
• Temperature Control Mode Selections: Ambient Air Temperature
• Changeover: Heat Only
• Temperature Range (F): Heat: 40 F to 90 F
• Heat Current: 0.02-1.0 A
• External Sensors Available: Floor sensor (included) AQ12C20; Remote Indoor air (optional) — C7189U1005
• Power Type: Hardwired
• WiFi: No
• Voltage Rating: 20 to 30 V
• Amperage Rating: 0.02 to 1 A
• Frequency Rating: 50/60 Hz
• Mounting Type: UWP System
• Humidity Control: Yes
• Humidity Range: 5 to 90% RH (non-condensing)
• Wireless: No
• Voltage: 24V
• Modes of Operation: Heat; Off
• Programming Features: Frost Protection
• Program Type: Manual / Not Programmed; 7-Day Programmable
• Alerts and Reminders: Battery Replacement
• Display Type: LCD Screen
• Display Language: English
• Displayed Information: Indoor Temperature; Mode; Time
• Features: Backlit Display ; Smart Response
• Setting Temperature Range: 40°F – 90°F
• Temperature Rating: 37 to 102 deg F
• Humidity Rating: 5 to 90% Non-Condensing
• Accuracy: 1 deg F
• Mount: Square
• User Interface: Push Button
• Options: Large Display
• Operating Temp Range: 37°F to 102°F
• Dual Fuel: No
• Ambient conditions: 37 to 102°F, 5 to 90% RH, non-condensing
