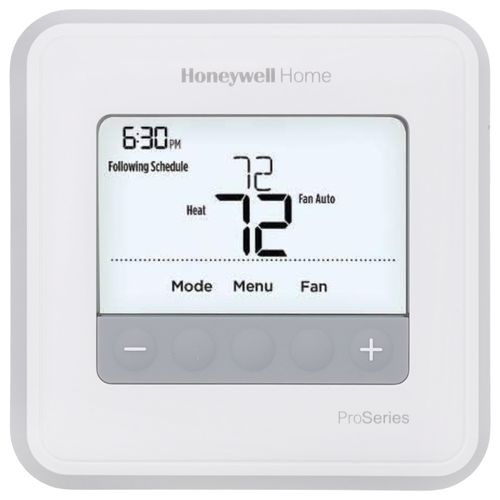

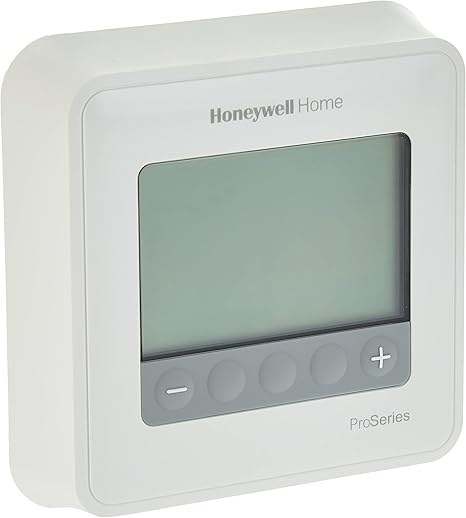

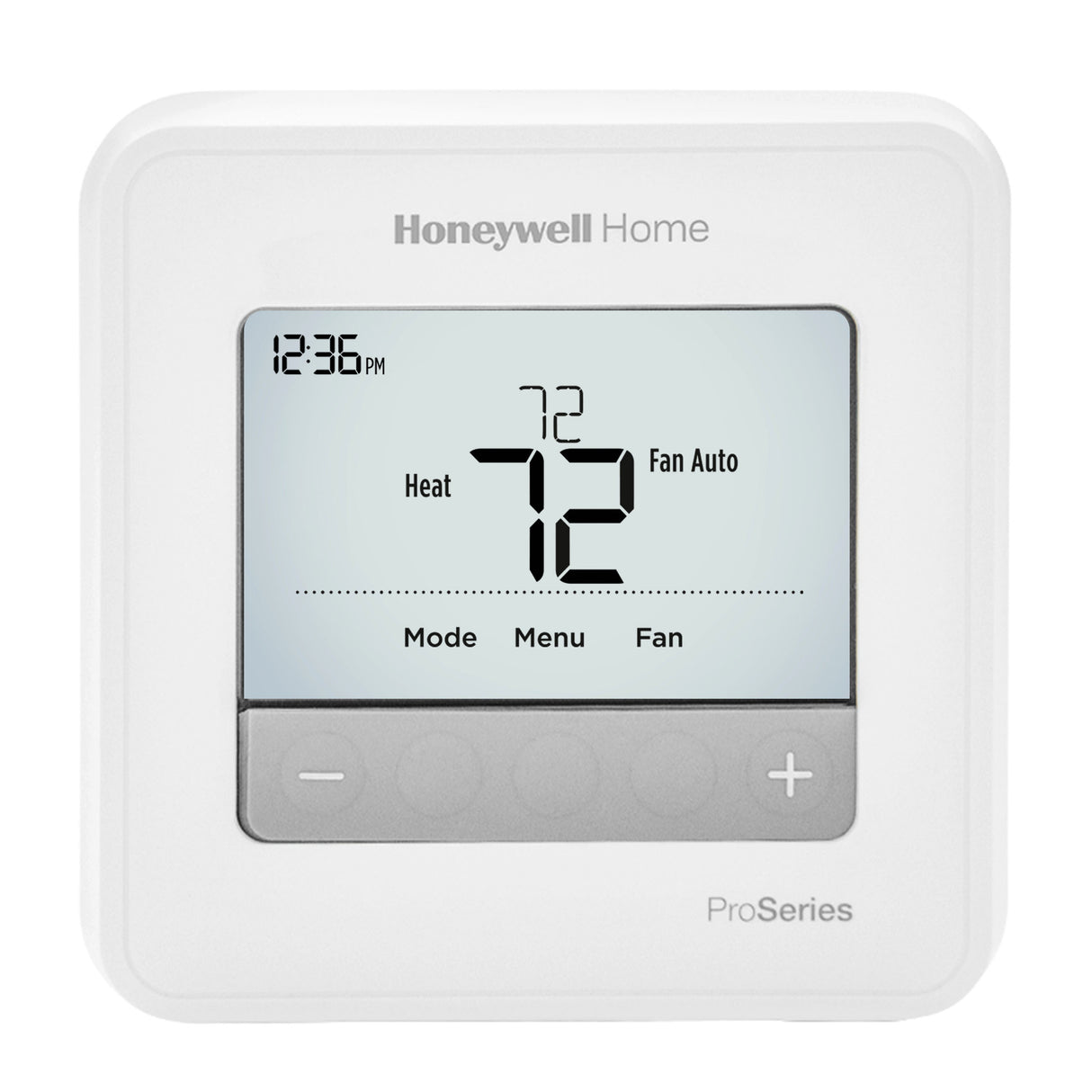

Honeywell Residential TH4110U2005 T4 Pro Programmable Thermostat 24V/Millivolt

Product Description

The HONEYWELL RESIDENTIAL TH4110U2005 T4 Pro programmable thermostat manages home heating and cooling with a user-friendly design. It features push-button control and offers flexible scheduling options, including 7-day, 5-2, and 5-1-1 programming. The thermostat also includes adaptive intelligent recovery, learning how long your system takes to reach the desired temperature.

• Offers 7-day, 5-2, and 5-1-1 programmable options.
• Features push-button control for easy adjustments.
• Equipped with adaptive intelligent recovery for optimal comfort.

Product Highlights

Easy to install and program, the T4 Pro provides simplified control over your home’s heating and cooling system with flexible scheduling.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: TH4110U2005
• Country of Origin: CHINA

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: TH4110U2005
• Application: Heat Pump, Single-Stage (Heat/Cool)
• Changeover: Auto, Manual
• Display: Digital
• Stages: 1 Heat/1 Cool
• Mount: Square
• User Interface: Push Button
• Options: Large Display, Auto Changeover
• Thermostat Type: Digital; Low Voltage; Programmable; Heatpumps Thermostat
• WiFi: No
• RedLINK: No
• Program Type: 5-2 Programmable; 7-Day Programmable; 5-1-1 Programmable; Scheduled Disabled
• Alerts and Reminders: Battery Replacement; Filter Change
• Display Language: English
• Displayed Information: Time; Mode; Indoor Temperature; Status Display; Backlit
• Energy Star Certified: No
• Features: Adaptive Intelligent Recovery; Backlit Display
• Power Source: Hardwired; Battery Operated
• Product Height: 4.06 in; 104 mm
• Product Width: 4.06 in; 104 mm
• Product Depth: 1.13 in; 29 mm
• Model Name: HONEYWELL – TH4110U2005/U – T4 Pro Thermostat, Programmable or Non-Programmable, 1H/1C
• Controller Type: Push Button
• Special Feature: Programmable
• Specific Uses For Product: Heat Pump
• Temperature Control Type: Heating, Cooling
• Connectivity Technology: Wired
• Included Components: HONEYWELL – TH4110U2005/U – T4 Pro Thermostat, Programmable or Non-Programmable, 1H/1C
• Voltage: 24 Volts
• Shape: Rectangular
• Display Type: 3.93 sq-in Medium, Soft Key Controls with LED Backlight
• Finish Type: White
• Control Type: Button Control
• Control Method: Remote
• Mounting Type: UWP mounting
• Style: Thermostat
• Backlight: Yes
• Number of Batteries: 2 AA batteries required.
• Series: T4 Pro
• Programs Per Week: 7 Days
• Fan Switching: Continuous, Cycled
• Voltage Rating: 20 – 30 VAC
• Includes: UW Mounting System, Honeywell Home Standard Installation Adapter (J-Box Adapter), Honeywell Home Decorative Cover Plate, Screws and Anchors, 2 AA Batteries, Installation Instructions and User Guide
• Amperage Rating: 0.02 to 1 A Cool, 0.02 to 1 A Heat, 0.02 to 0.05 A Fan
• Frequency Rating: 50/60 Hz
• Programmability: 7 days, 5-1-1 days, 5-2 days or Non-Programmable
• Switch Position: Heat-Off-Cool-Auto (System), Auto-On (Fan)
• Switch Type: Relay
• Differential Temperature: +/-1 deg F
• Temperature Settings: 40 to 90 deg F Heating, 50 to 99 deg F Cooling
• Temperature Rating: 37 to 102 deg F Operating, -20 to 120 deg F Storage, 32 to 120 deg F Ambient
• Humidity Rating: 5 to 90% RH Non-Condensing
• Accuracy: 0.5 deg F
• Cool Current: 0.02 to 1 A Running
• Terminal Designation: RC, R, C, W, O/B, Y, G, K, A
• Fan Current: 0.02 to 0.05 A
• Heat Current: 0.02 to 1 A
• Model: T4 Pro
• Battery Size: AA
• Control Style: Mechanical, Push Button, Digital
• Mounting: UW Mounting
• Thermostat Shape: Square
• Number of Periods per Programmable Day: 4
• Cool Stages: 1
• Wire Configuration: 4-Wire
• Heat Stages: 1
• Thermostat Programmable Days: 7- Day
• Sensor Technology: Temperature, Occupancy, Ambient Light
• Voltage Type: Low Voltage
• Items Included: User Guide, Anchors, 2 AA Batteries, Screws, Honeywell Home Standard Installation Adapter (J-box adapter), UW Mounting System, Installation Instructions, Honeywell Home Decorative Cover Plate, T4 Pro Thermostat
• Suitable For: Furnace
• Energy Star: Compliant
• Control Range: 37 Degrees to 102 Degrees F
• Manufacturer Color: White
• Supported Heating System: Air-source Heat Pump
• Equipment Type: Electronic Thermostat
• Display Color: Blue
• Mounting Style: Wall
• For Use With: Gas, Oil or Electric Heat with A/C, Warm Air, Hot Water, High-Eff
• Product Line: T4
• Switch Contact Type: Digital
• System Type: Heating + Cooling
• Programmable: Yes
• Battery Type: AA
• Battery Included: Yes
