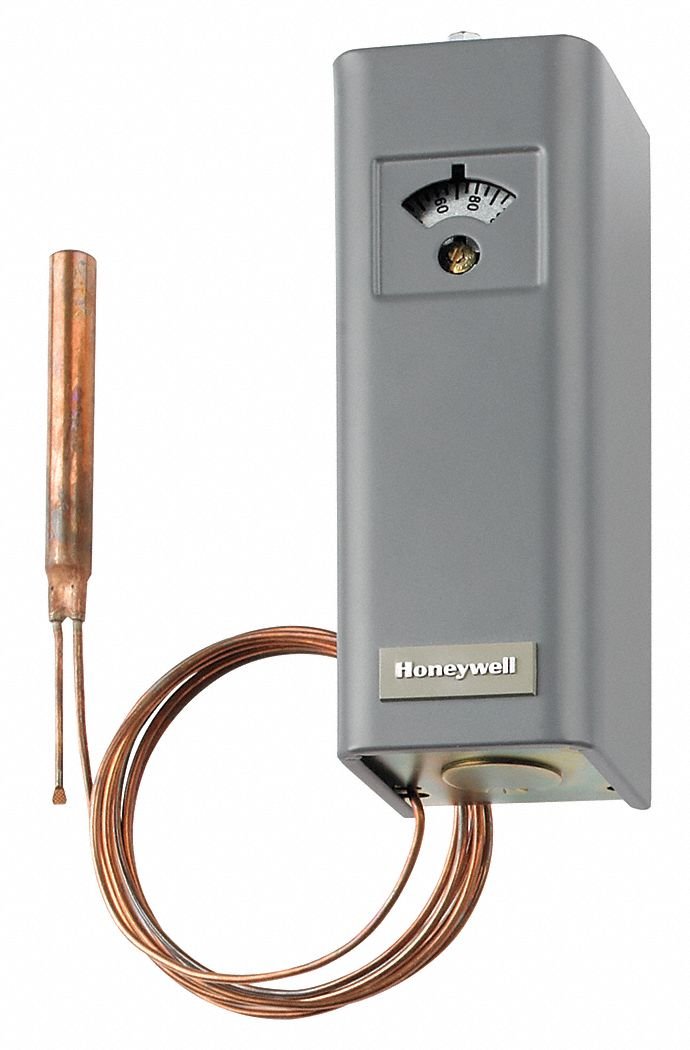

Honeywell T4031C1012 Line Voltage Mechanical Thermostat Heat Only 120 to 240VAC

Name: Honeywell T4031C1012 Line Voltage Mechanical Thermostat Heat Only 120 to 240VAC
Brand: HONEYWELL
SKU: T4031C1012
Price: 231.97 USD
Availability: InStock

$231.97

The Honeywell T4031C1012 is a line voltage mechanical thermostat. This heat-only thermostat operates on 120 to 240VAC. It is designed for precise temperature control in industrial and commercial applications.

Compare

Add to wishlist

SKU: T4031C1012 Categories: Line Voltage, Thermostats

Description

Product Description

Temperature range: 40 to 180 degrees Fahrenheit
5.5-foot capillary tube for flexible installation
Single Pole Single Throw (SPST) switch

Product Highlights

The Honeywell T4031C1012 thermostat features a SPST switch that ensures reliable performance. Its broad temperature range and 5.5-foot capillary make it suitable for various applications like bulk milk tanks, beverage machines, and crop drying.

Product Information

Standard Information

Brand: Honeywell
MPN: T4031C1012

Technical Specifications

Temperature Range: 40 to 180 degrees Fahrenheit
Voltage: 120/240VAC
Frequency: 50/60Hz
Contact Ratings (120VAC): 8.0 AFL, 48.0 ALR
Contact Ratings (240VAC): 5.1 AFL, 30.6 ALR
Capillary Length: 5.5 feet
Bulb Size: 2-7/8 inches long x 3/8 inch diameter
Setpoint Temperature Range: 40 to 180 degrees Fahrenheit
Maximum Operating Temperature: 205 degrees Fahrenheit
Dimensions: 5-5/8 inches high x 2 inches wide x 2-1/8 inches deep
Output: 1 SPST, break on temperature rise
Sensor Element: Copper
Number of Sensor Inputs: 1
Application: Line-voltage, low-voltage, or millivolt control of bulk milk tanks, beverage dispensing machines, ice cube machines, dishwashers, crop drying, tobacco curing, and similar applications
Country of Origin: United States

Additional information

Weight	20.71 lbs
Brand	HONEYWELL
Voltage	120/240VAC
