Honeywell Residential TH6210U2001 T6 Pro Programmable Thermostat 2 Heat/1 Cool

Product Description

The HONEYWELL RESIDENTIAL TH6210U2001 T6 Pro Programmable Thermostat streamlines product selection and installation. This programmable digital thermostat is designed for 1-stage heat/1-stage cool conventional or up to 2-stage heat/1-stage cool heat pump systems. It features a standard footprint and simple interface with a large backlit display.

• Push-button programmable with flexible scheduling.
• Offers multiple programmability modes: 5+2 / 5+1+1 or 7-Day, as well as non-programmable.
• Displays time, mode, ambient and setpoint temperature simultaneously.

Product Highlights

The T6 Pro enhances the thermostat experience with flexible scheduling and a simple interface. Features a large, illuminated display and multiple programmability modes.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: TH6210U2001

Technical Specifications

• Application: Heat Pump
  Multi-Stage (Heat/Cool)
• Changeover: Manual
  Auto
• Display: Monochrome
• Stages: 1 Heat/1 Cool
  2 Heat/1 Cool (Heat Pump)
• Mount: Square
• User Interface: Push Button
• Options: Large Display
  Auto Changeover
• Programmability: 7 Day
  5-2 Day
  5-1-1 Day
  Programmable
• Power Method: Hardwired
  Battery
• Operating Temp Range: 37°F to 102°F
• Humidity Range: 5 to 90% RH (non-condensing)
• Humidity Control: Yes
• Wireless: No
• Voltage: 24V
• Thermostat Type: Programmable; Digital; Low Voltage
• WiFi: No
• RedLINK: No

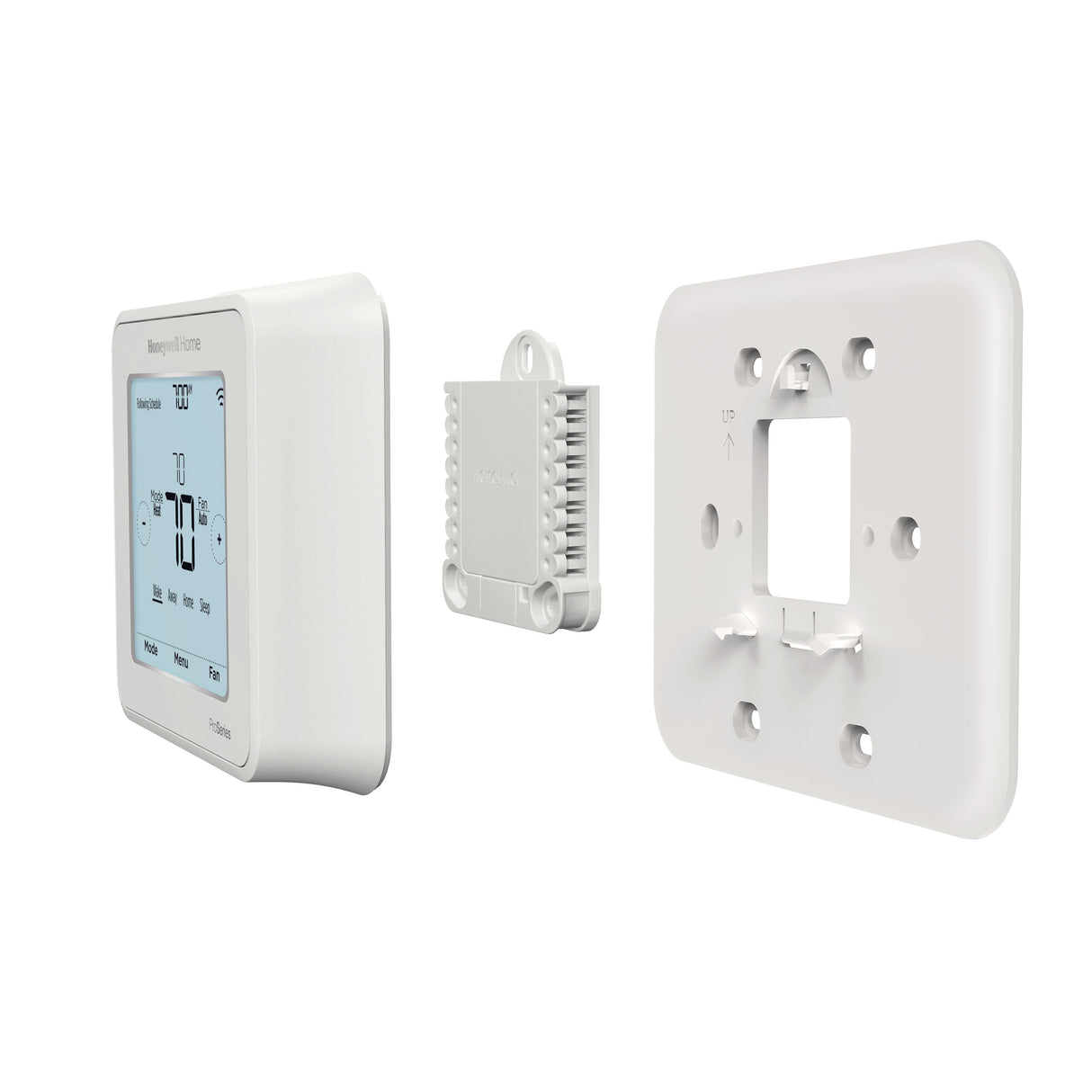

• Includes: T6 Pro Thermostat; UWP Wall Plate; Decorative Cover Plate; Screws and anchors; 2 AA Batteries; Literature
• Utility Rewards: No
• Modes of Operation: Heat; Cool; Emergency Heat; Off; Auto
• Program Type: 5-2 Programmable; 7-Day Programmable; 5-1-1 Programmable; Scheduled Disabled
• Fan Function: Cycled; Continuous
• Alerts and Reminders: High Indoor Temperature; Low Indoor Temperature; Heat Pump Error; Battery Replacement; Filter Change
• Display Type: LCD Screen
• Display Language: English
• Energy Star Certified: No
• Features: Adaptive Intelligent Recovery; Backlit Display ; Filter Change Reminder
• Power Source: Hardwired; Battery Operated
• Product Height: 4.06 in; 104 mm
• Product Width: 4.06 in; 104 mm
• Product Depth: 1.09 in; 28 mm
• Warranty: 5 Years
• Fan Settings: Auto, On, Circ
• Interface: Button
• Display Size: 5.44 sq in.
• Electrical Ratings: 24V (20-30 Vac, 0.02-0.50A or 0.02-1.00A – varies by terminal)
• Terminal Designations: R, RC, C, W, O/B, W2-AUX, E, Y, Y2, G, L/A, K, S
• Dual Fuel: No
• Setting Temperature Range: Heat 40°F – 90°F / Cool 50°F – 99°F
• Ambient conditions: 37 to 102°F, 5 to 90% RH, non-condensing
