Honeywell Residential TH7220U1035 7-Day Touchscreen Programmable Thermostat with Automatic/Manual Changeover

Product Description

The HONEYWELL RESIDENTIAL TH7220U1035 is a 24V programmable thermostat that offers advanced control for conventional and heat pump applications. It features a user-friendly touchscreen interface for setting schedules and adjustments. With automatic/manual changeover, it seamlessly switches between heating and cooling modes based on temperature preferences. The 7-day programmable feature allows for customized temperature settings.

• 7 Day Programmable
• Touchscreen interface
• Automatic/manual changeover

Product Highlights

This thermostat is compatible with 2H-2H/Heatpump 2H-1C applications and has a programmable temperature range of 40 to 90 degrees Fahrenheit.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: TH7220U1035
• Country of Origin: US

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: TH7220U1035
• Application: Conventional Systems, Heat Pumps with Auxiliary Heat
• Stages: 2 Heat/2 Cool, 2 Heat/1 Cool Heat Pump
• Programmability: 7 Day, Programmable
• User Interface: Push Button
• Voltage: 24V
• Options: Works with Sensor, Password Lockout, Fan Control, Auto Changeover
• Mount: Horizontal
• Humidity Control: No
• Wireless: No
• Product Features: Selectable: Programmable or Non-Programmable; The L terminal is an input or output.
• Thermostat Type: Programmable
• Smart Home Integration: No
• Display Type: Touch Screen
• Touchscreen: Yes
• Modes of Operation: Heat, Cool, Auto, Off
• Program Type: 7-Day Programmable
• Heat-Cool Changeover: Auto Changeover, 3 ° temperature difference
• Number of Batteries: 2
• Battery Size: AA
• Battery Type: Alkaline
• Warranty: 5 Years
• RedLINK: No
• Sensor Type: Thermistor
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Operating Relative Humidity (Max): 90% RH, non-condensing
• Operating Relative Humidity (Min): 5% RH, non-condensing
• Backlight Options: On/Off in Idle
• Fan Function: On, Auto
• Compatible Sensor: Outdoor Temperature Sensor, Room Temperature Sensor
• Demand Response: No
• Running Current: 1.0 A
• Temperature Accuracy: 1 °F, 0.5 °C
• Auto Changeover: Yes
• Mounting Type: Horizontal Mount
• Power Supply Frequency: 50 Hz, 60 Hz
• Mounting Location: Wall, Internal
• Product Height: 3.75 in, 96 mm
• Product Width: 6 in, 152 mm
• Product Depth: 1.38 in, 35 mm
• Model Name: TH7220U1035 23519884
• Product Dimensions: 1.38″D x 6″W x 3.75″H
• Controller Type: Touchscreen
• Special Feature: Programmable
• Specific Uses For Product: HVAC
• Temperature Control Type: digital
• Power Source: Battery or Hardwired
• Voltage Rating: 20 to 30 Volt AC at 50/60 Hertz
• Current Rating: 1 Amp Running (Heating/Cooling), 0.6 Amp Running (Fan)
• Temperature Rating: 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
• Size: 3-3/4 Inch Height x 6 Inch Width x 1-3/8 Inch Depth

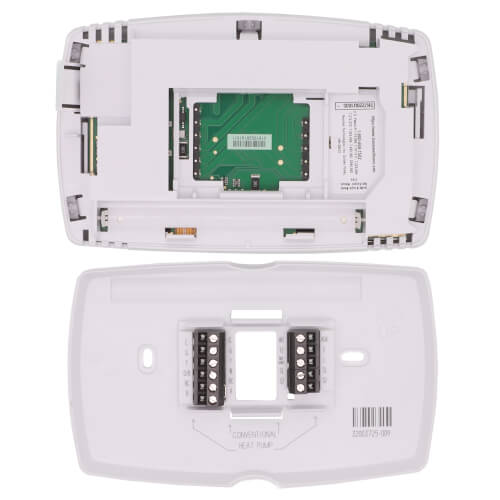

• Terminal Designations: R, RC, W-O/B, Y, G, C, W2-Aux, Y2/E, L, S1, S2
• Humidity Range: 5 to 90 Percent RH Non-Condensing
