Honeywell Residential TH8110R1008 All New Visionpro 8000 Touchscreen Thermostat With Redlink Technology REPLACES TH8110U1003

Product Description

The HONEYWELL RESIDENTIAL TH8110R1008 All New Visionpro 8000 Touchscreen Thermostat features Redlink Technology for residential or commercial use. This thermostat is 7 day programmable and compatible with heat pumps (1H/1C) and conventional systems (1H/1C). The touchscreen interface provides ease of use and control. It can replace the TH8110U1003 model.

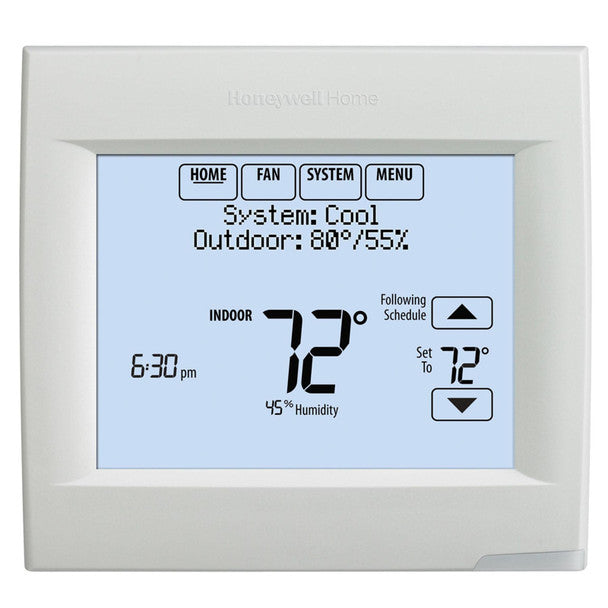

• Touchscreen interface for ease of use and control
• RedLink Technology for wireless communication and remote access
• 7-day programmable schedule for customized temperature settings

Product Highlights

This thermostat is suitable for residential or commercial applications. It has a 7-day programmable schedule and is compatible with heat pumps and conventional systems.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: TH8110R1008
• Country of Origin: Mexico

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: TH8110R1008
• Item Number: TH8110R1008
• Application: 1H/1C Conventional Systems, Heat Pumps with No Auxiliary Heat
• Product Features: Smart Schedule – programs in seconds for any lifestyle, RedLINK® 2.0 wireless communication, The thermostat can be wired directly to the equipment, used with the THM5421R1021 Equipment Interface Module or used with the THM4000R1000 TrueZONE Wireless Adapter., Works with the RedLINK® 2.0 accessories including the RedLINK® Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote and Wireless Vent and Filter Boost Remote. ENERGY STAR® Certified
• Thermostat Type: Programmable, Digital, Low Voltage, RedLINK
• Stages Cool: 2
• Stages Heat: 4
• Smart Home Integration: No
• Display Type: Touch Screen
• Display Size: 10 sq in
• Touchscreen: Yes
• Display Language: English
• Displayed Information: Indoor Temperature, Indoor Humidity, Outdoor Temperature, Outdoor Humidity, Time, Status Display
• Modes of Operation: Heat, Off, Cool, Auto
• Program Type: 7-Day Programmable, Manual / Not Programmed
• Energy Star Certified: Yes
• Alerts and Reminders: Customizable Service Reminders
• Power Supply: Battery, Hardwired
• Power Source: Hardwired, Battery Operated
• Number of Batteries: 4
• Battery Life: 1 Years
• Battery Size: AA
• Battery Type: Alkaline
• Warranty: 5 Years
• Includes: VisionPRO® 8000 thermostat, Wall anchors, Screws
• For Use With: Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK® 2.0 accessories
• Communication Type: RedLINK, WiFi
• WiFi: No
• WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
• Z-Wave: No
• RedLINK: Yes
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 120 °F, 49 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Operating Relative Humidity (Max): 90% Non-condensing
• Operating Relative Humidity (Min): 5% Non-condensing
• Backlight Options: Adjustable
• Fan Function: On, Auto, Circulating
• Clock Type: Year Clock
• Demand Response: No
• Electrical Connection Type: Screw terminals
• Mounting Type: Horizontal Mount
• Power Supply Frequency: 50 Hz, 60 Hz
• Set point Temperature (Max): Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C
• Set point Temperature (Min): Heat: 40 °F, Heat: 5 °C, Cool: 50 °F, Cool: 10 °C
• Mounting Location: Wall
• Product Height: 4.63 in, 118 mm
• Product Width: 4.94 in, 126 mm
• Product Depth: 1.13 in, 29 mm
• Terminal Designations: C, G, K, R, RC, S1 S1, W-O/B, Y
• System Switching: Heat-Off-Cool-Auto
• Fan Switching: Auto-On-Circulate-Follow Schedule
• Display Color: Blue
• Key Pad Lockout: Yes
• Automatic Changeover: Yes
• Humidification Control: Yes
• Dehumidification Control: Yes
• Programmable Fan: No
