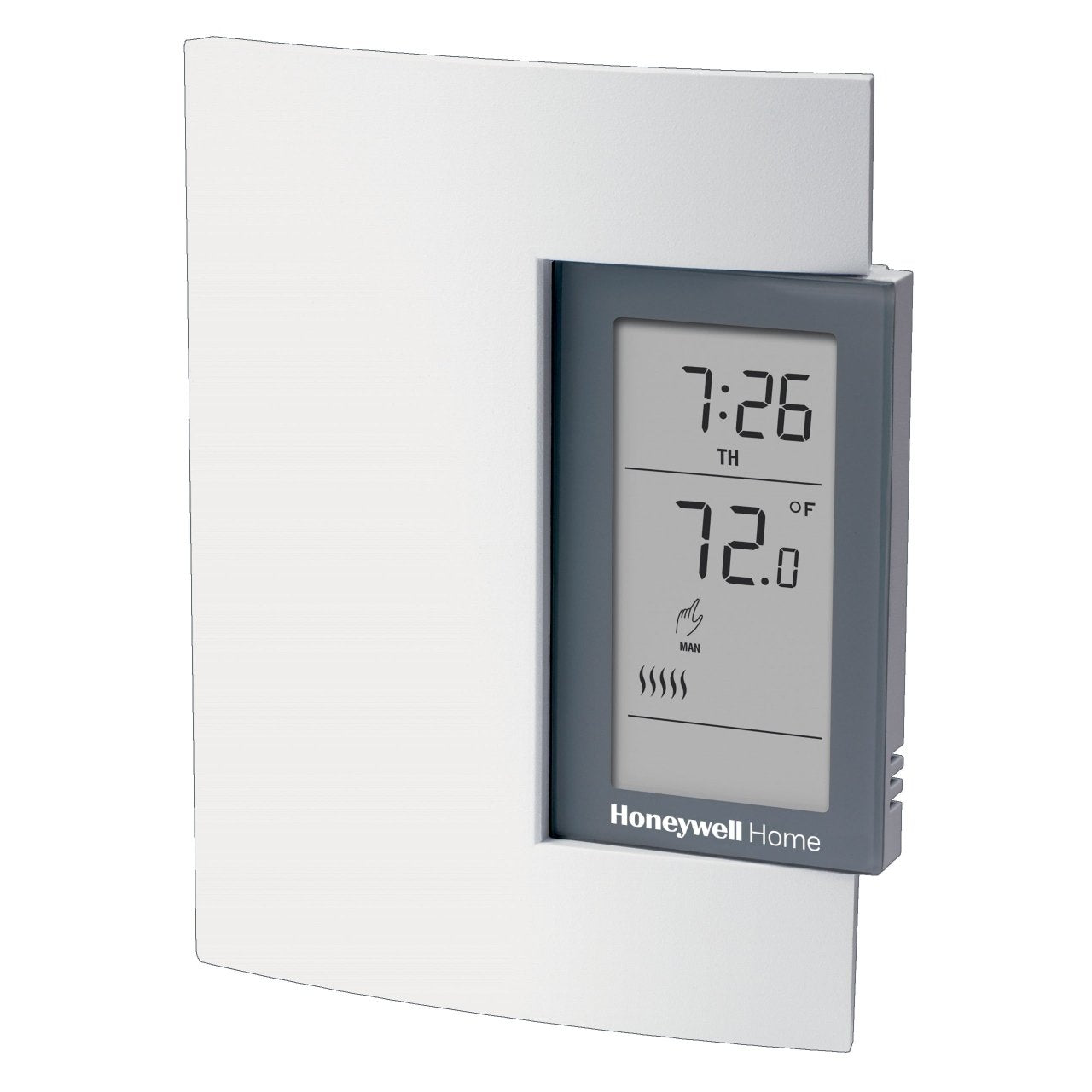

Resideo TL8100A1008/U 7-Day Programmable Electronic Thermostat

Product Description

The RESIDEO TL8100A1008/U hydronic thermostat offers energy savings with programmable control for various applications, eliminating the need for multiple thermostats. It controls 2-way and 3-way zone valves or circulator pumps and is designed for hydronic heating systems, allowing customized scheduling to optimize comfort and energy savings.

• 7-Day Programmable
• LCD Screen Display
• Designed for hydronic heating systems

Product Highlights

This thermostat is for gas, oil, and electric systems, including hot water heating, hot air systems, and millivolt systems. It features customizable scheduling for comfort and energy savings.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TL8100A1008/U
• Country of Origin: China

Technical Specifications

• Color: White
• RedLINK: No
• Includes: Power base, Screws, Solderless connectors for copper wires
• Warranty: 2 Years
• Clock Type: Week Clock
• Application: Electric Heating, Baseboard Heater, Radiant Ceiling, Convector or Fan-forced Heater
• Battery Size: AA
• Display Type: LCD Screen
• Programmable: Yes
• Programmability: 7-Day
• Thermostat Type: Programmable, Line Voltage
• Number of Batteries: 2
• System Mode Options: Heat
• Temperature Accuracy: 0.5, 1
• Smart Home Integration: No
• Temperature Setting Range: 40 °F to 85 °F, 5 °C to 30 °C
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 0% Non-condensing
• Works With Resideo Applications: Not Applicable
• Stages: 1 Heat
• Display Size: 10 sq in
• Displayed Information: Indoor Temperature, Status Display, Time/Date, Mode Icons
• Modes of Operation: Heat
• Programming Features: Economy Mode, Holiday Mode, Temporary Override
• Program Type: 7-Day Programmable
• Power Supply: Battery Powered, Hardwired
• Power Source: Battery Operated, Hardwired
• Battery Type: Alkaline
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 122 °F, 50 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Electrical Connection Type: Screw terminals
• Mounting Type: Vertical Mount
• Voltage Rating: 120/240 VAC
• Switch Type: Relay
• Sensing Element: Thermistor
• Differential Temperature: 0.1 deg F, 0.1 deg C
• Temperature Settings: 40 to 85 deg F
• Temperature Rating: 32 to 122 deg F
• Humidity Rating: 0 to 95% Non-Condensing
• Accuracy: 1 deg F
• Terminal Designation: R, W
• Electrical Connection: Screw Terminal
• Product Height: 4.9 in, 124 mm
• Product Width: 3.8 in, 97 mm
