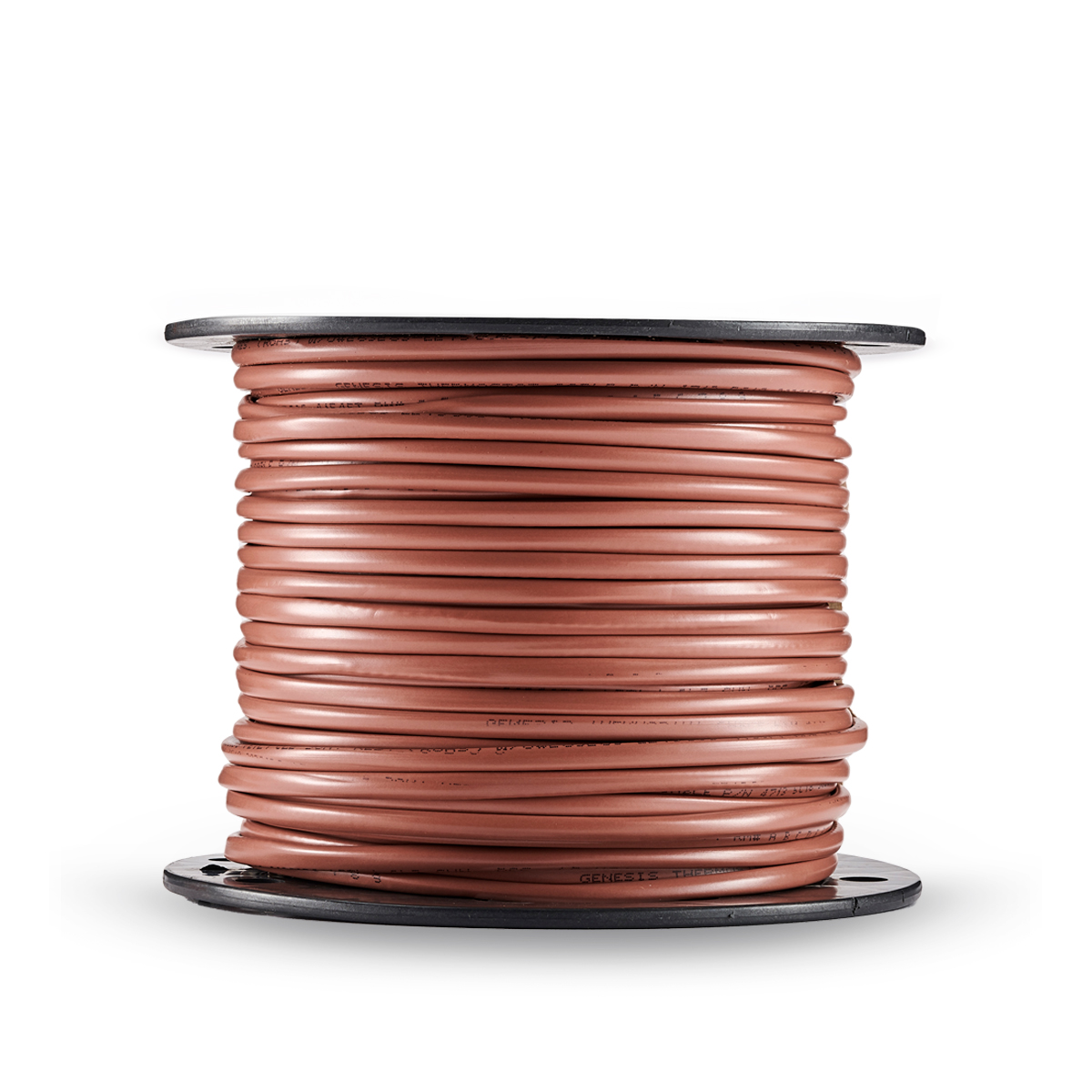

Southwire Company 47120307 Honeywell Genesis General Purpose Thermostat Cable 150 VAC (4) 18 AWG 4 x 250 Ft. Reels

Product Description

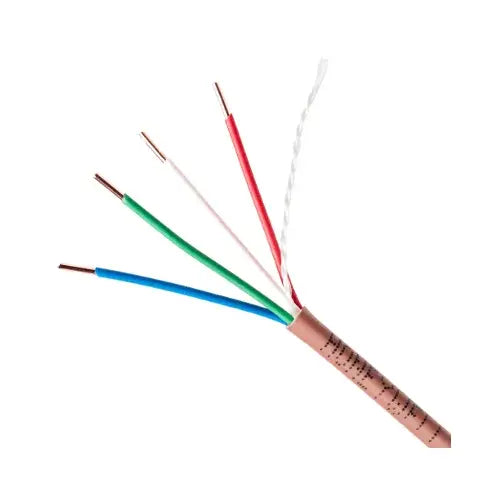

The Honeywell Genesis 47120307 General Purpose Thermostat Cable is designed for the power requirements of the circuit, ensuring proper power and control function. Ideal for new and existing HVAC equipment. This cable features a bare solid copper conductor, polypropylene insulation, and a PVC jacket. It is rated for 150 VAC and temperatures from -20 to 60 deg C.

• Designed for the power requirements of the circuit
• Ideal for both new and existing HVAC equipment
• Features bare copper conductors for excellent conductivity

Product Highlights

The Honeywell Genesis 47120307 thermostat cable ensures proper power and control function for HVAC equipment with its durable construction and optimized design.

Product Information

Standard Information

• Brand: SOUTHWIRE COMPANY
• Manufacturer Part Number: 47120307

Technical Specifications

• Conductor Size: 18 AWG
• Conductor Type: Bare Solid Copper
• Insulation Material: Polypropylene
• Jacket Color: Brown
• Jacket Material: PVC
• Length: 1000 ft
• Number of Conductors: 4
• Packaging Type: Spool
• Resistance: 6.5 Ohm
• Series: Genesis
• Strands: Solid
• Temperature Rating: -20 to 60 deg C
• Type: General Purpose
• Voltage Rating: 150 VAC
• Nominal Total Weight (lbs/1000′): 25
• Nominal Total Weight (kgs/km): 38
• Outside Diameter: 0.157 in
• Insulation Thickness: 0.006 in
• Jacket Thickness: 0.015 in
• Capacitance: 25 pF/ft
• Impedance: 100 Ohm
• Insulation Color: Assorted
• Model No.: 47120307
