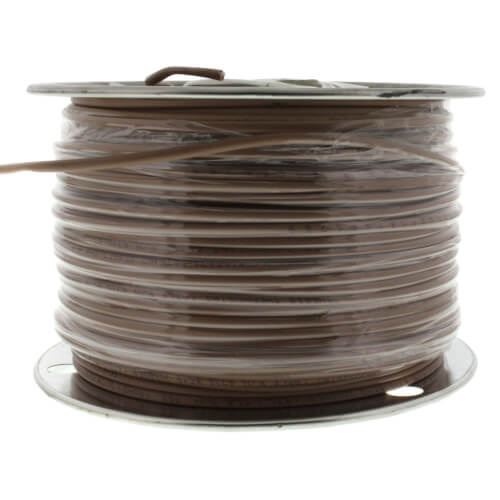

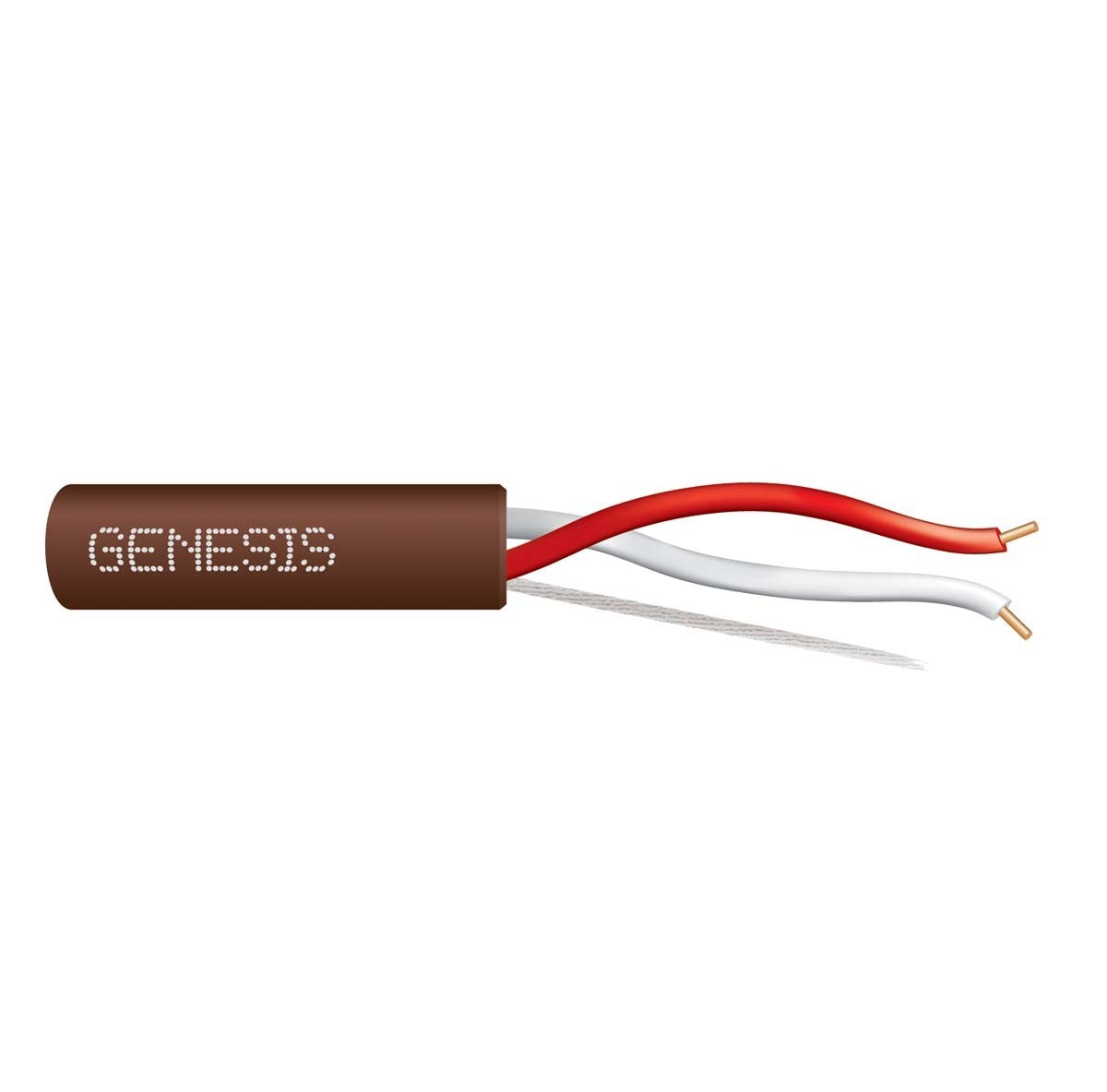

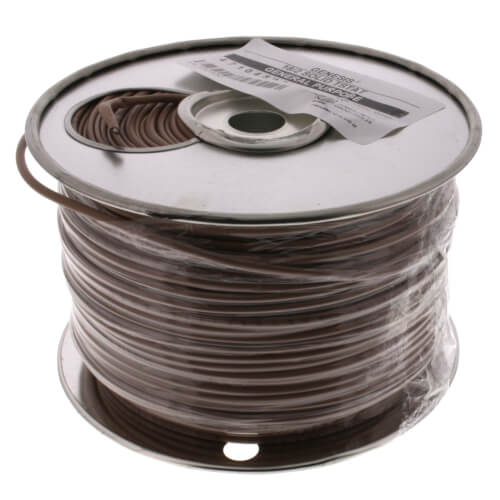

THERMOSTAT 47104807 THERMOSTAT 18/2 AWG Solid Thermostat Cable

Product Description

The THERMOSTAT 47104807 is designed for wiring thermostat controls and HVAC systems. This thermostat cable features two 18 AWG solid bare copper conductors. It is suitable for various low-voltage applications. The polypropylene insulation and PVC jacket ensure durability. This cable is rated CL2 and withstands sunlight exposure.

• Features bare copper conductors for effective conductivity
• Sunlight-resistant with a durable PVC jacket
• Includes a rip cord for easy jacket removal

Product Highlights

This product is ideal for power-limited circuits and ensures reliable performance in temperature ranges from minus twenty to sixty degrees Celsius.

Product Information

Standard Information

• MPN: 47104807
• UPC: 226561

Technical Specifications

• Wire Gauge: 18 AWG
• Number of Conductors: 2
• Conductor Material: Bare Copper
• Stranding: Solid
• Length: 500 ft
• Rated Voltage (Max): 150 Volts
• Operating Temperature (Min): -20 °C
• Operating Temperature (Max): 60 °C
• Jacket Material: PVC
• Cable Listing: CL2, Sunlight Resistant
• Nominal Outer Diameter: 0.136 inches
• Conductor Insulation Material: Polypropylene
• Shielding: Unshielded
• DC Resistance (Max): 6.52 Ohms / 1000 ft at 20 °C
• Nominal Total Weight: 14 lbs/1000′
• Cable Rating: General Purpose
