HONEYWELL 67160307 Honeywell Genesis Hybrid Thermostat Wire 250ft

Product Description

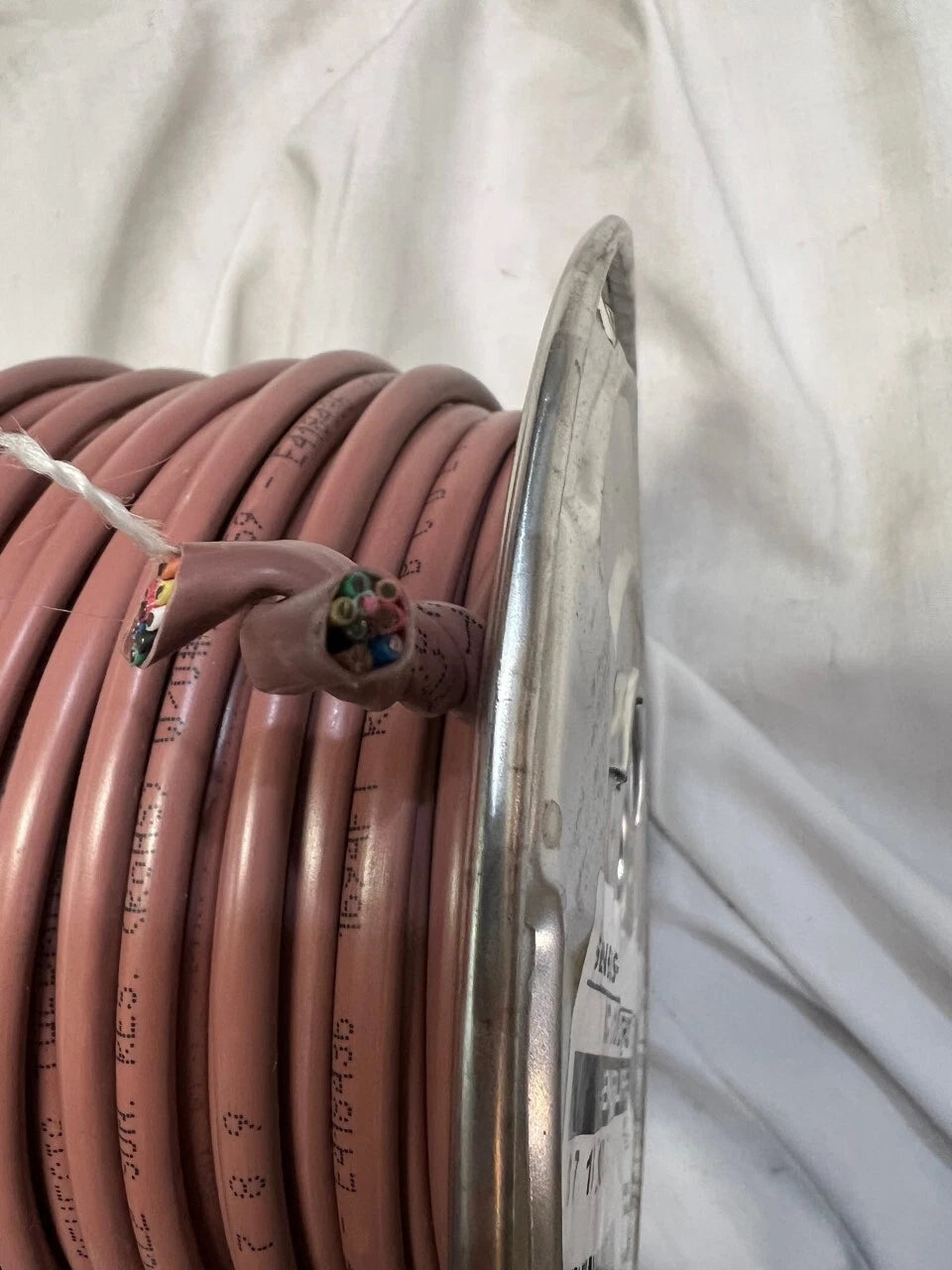

The HONEYWELL Genesis 67160307 is a hybrid thermostat wire designed for various HVAC applications. This wire features eight conductors: one 18 AWG and seven 20 AWG solid bare copper conductors. Each conductor is insulated with polypropylene and encased in a durable PVC jacket. It is suitable for thermostat applications with a maximum operating voltage of 150 volts and supplied on a two hundred fifty-foot reel.

• Features one 18 AWG and seven 20 AWG conductors.
• Operating temperature ranges from negative twenty degrees Celsius to sixty degrees Celsius.
• Compliant with RoHS standards and has a UL 1685 Vertical Tray flame rating.

Product Highlights

This wire is ideal for connecting thermostats in residential and commercial settings, ensuring reliable performance.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: 67160307

Technical Specifications

• Conductor Gauge: 18 AWG, 20 AWG
• Conductor Material: Bare Copper, Solid
• Conductor Count: 8
• Operating Voltage: 150V Max
• Operating Temperature: -20°C to 60°C
• RoHS Compliant: Yes
• Flame Rating: UL 1685 Vertical Tray
