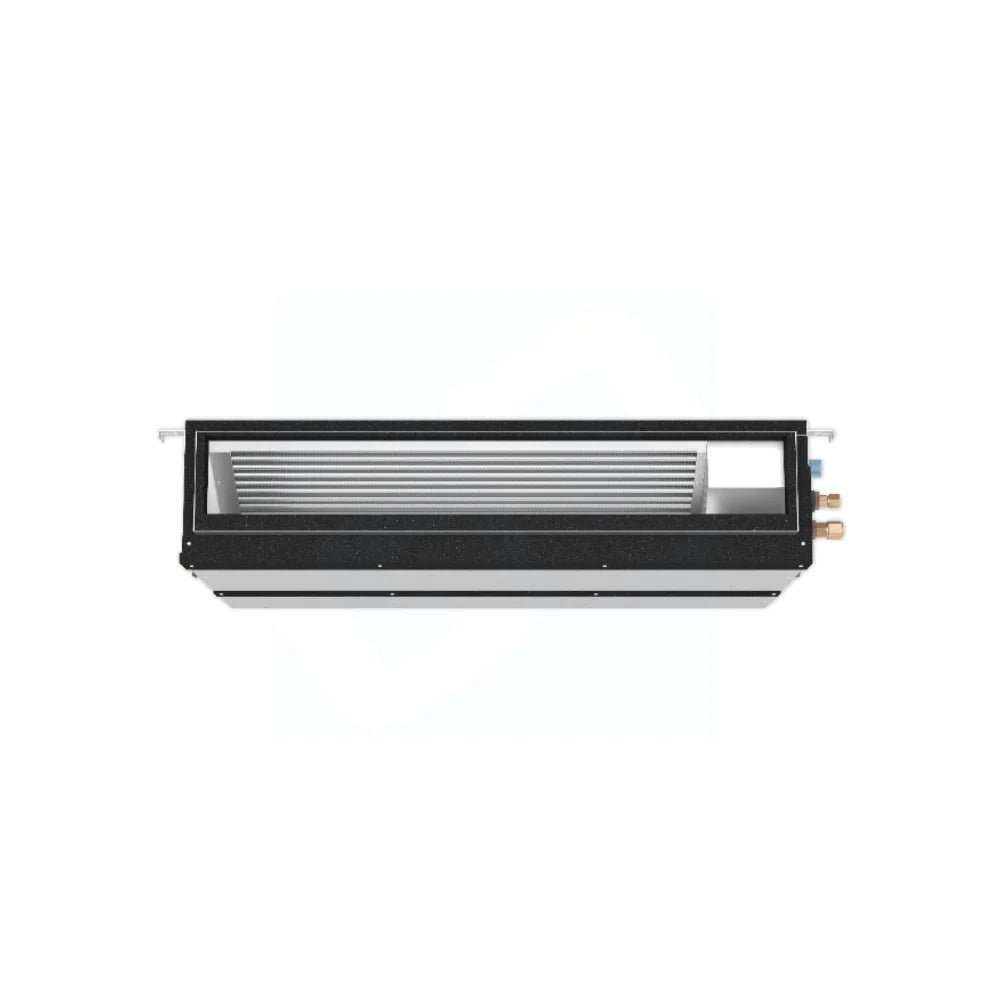

Mitsubishi SEZ-AD09NL M-Series Concealed Duct Unit – Multi or Single-Zone – 9k BTU – R-454B

Product Description

The Mitsubishi Electric SEZ-AD09NL is a horizontal ducted indoor unit tailored for mini-split air conditioning systems. This unit effectively provides heating and cooling for one or two rooms and fits various configurations, including single-zone and multi-zone setups. It is suitable for short duct runs and can be discreetly installed in areas like attics, ceilings, or within wall structures.

• Features a built-in condensate lift mechanism.

• Offers various control options, including a comfort app for remote management.

• Designed for quiet operation.

Product Highlights

This ducted indoor unit is ideal for climates that require efficient temperature control in multiple areas within a home or office.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC

• MPN: SEZ-AD09NL

• Type: Concealed Duct

• Product Sub-line: M-Series

• Refrigerant Type: R-454B

• Installation Location: Indoor

Technical Specifications

• Operating Mode: Heating and Cooling

• Indoor Unit Size(s): 9

• UPC: 192890003732

• Cooling BTU: 9000

• Cooling Capacity: 8100 BTU

• Heating Capacity: 10900 BTU

• Moisture Removal: 1.7 Pints/Hour

• Maximum Air Flow: 317 CFM

• Minimum Air Flow: 194 CFM

• Minimum Sound Level: 30 dB

• Maximum Sound Level: 23 dB

• Voltage: 208/230 Volts

• Phase: 1

• Frequency: 60 Hz

• Gas Connection Size: 3/8 Inch

• Liquid Connection Size: 1/4 Inch

• Product Height: 7 7/8 Inches

• Product Width: 31 1/8 Inches

• Product Depth: 27 9/16 Inches

• Product Weight: 42 Pounds

• Shipping Weight: 62 Pounds

• ETL Listed: Yes
