MITSUBISHI ELECTRIC

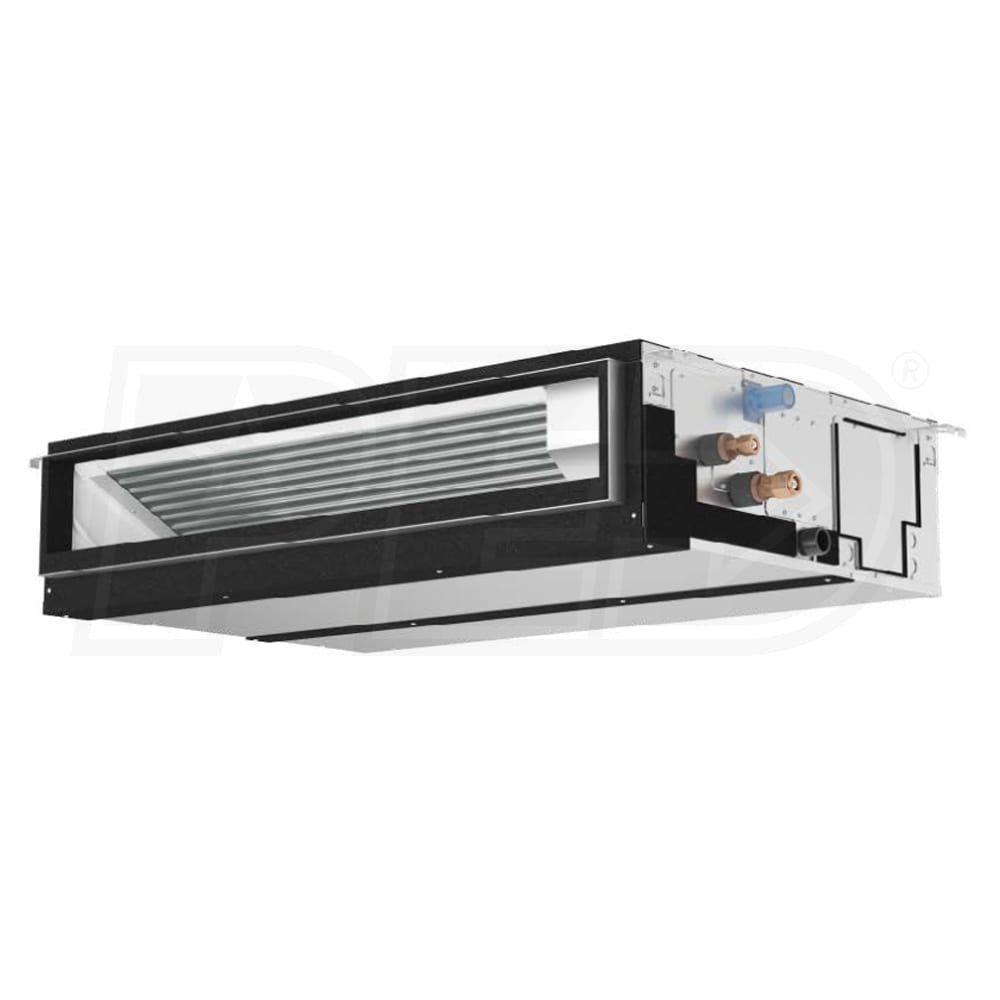

Mitsubishi Electric PEAD-AA42NL Concealed Duct Indoor Unit

$3,838.42

The Mitsubishi Electric PEAD-AA42NL is a concealed duct heat pump mini split indoor unit designed for single-zone systems. This product is made to be hidden within short duct runs. It supports both heating and cooling functions while using R-454B refrigerant.

Compare
Add to wishlist
SKU: PEAD-AA42NL Categories: ,
Description

Product Description

The Mitsubishi Electric PEAD-AA42NL is a concealed duct heat pump mini split indoor unit designed for single-zone systems. This product is made to be hidden within short duct runs. It supports both heating and cooling functions while using R-454B refrigerant. The unit offers multiple modes and fan speed options to meet different room needs. It includes an internal drainage system for moisture removal.

  • Concealed duct design for unobtrusive installation.
  • Supports heating and cooling operations.
  • Uses R-454B refrigerant.

Product Highlights

This unit is ideal for settings that require efficient heating and cooling with minimal visibility, ensuring convenience and comfort.

Product Information

Standard Information

  • Product Line: P-Series
  • Product Category: Mini Split System Components

Technical Specifications

  • Type: Concealed Duct
  • Operating Mode: Heating and Cooling
  • Refrigerant Type: R-454B
  • Cooling Capacity: 42000 BTU
  • Heating Capacity: 48000 BTU
  • Moisture Removal: 10.8 Pints/Hour
  • Maximum Air Flow: 1483 CFM
  • Minimum Air Flow: 1042 CFM
  • Sound Level: 37 dB (minimum) to 45 dB (maximum)
  • Voltage: 208/230 Volts
  • Phase: 1
  • Frequency: 60 Hz
  • Gas Connection Size: 5/8 Inch
  • Liquid Connection Size: 3/8 Inch
  • Dimensions: 9 7/8 Inches Height x 55 1/8 Inches Width x 28 7/8 Inches Depth
  • Weight: 86 Pounds
  • ETL Listed: Yes
  • AHRI Certified: Yes
  • Parts Warranty: 5 Years
Additional information
Weight60.00 lbs
Brand
BTU
Voltage
Refrigerant
Shipping and Delivery
HVAC Equipment Packaging
HVAC Equipment Delivery

SHIPPING & DELIVERY

We ship HVAC equipment nationwide via freight carriers and standard parcel services. All orders over $500 qualify for FREE shipping. Heavy equipment (condensers, air handlers, packaged units) ships via LTL freight with liftgate service included.

DELIVERY DETAILS

  • Standard shipping: 5-10 business days for in-stock items
  • Freight/LTL delivery: 7-14 business days for heavy equipment
  • Expedited shipping available for an additional fee
  • Curbside delivery included; inside delivery available upon request

All HVAC equipment is professionally packaged in factory crating to ensure safe transit. Units are inspected before shipping and insured against damage. Please inspect your delivery upon arrival and note any damage on the carrier's bill of lading.
