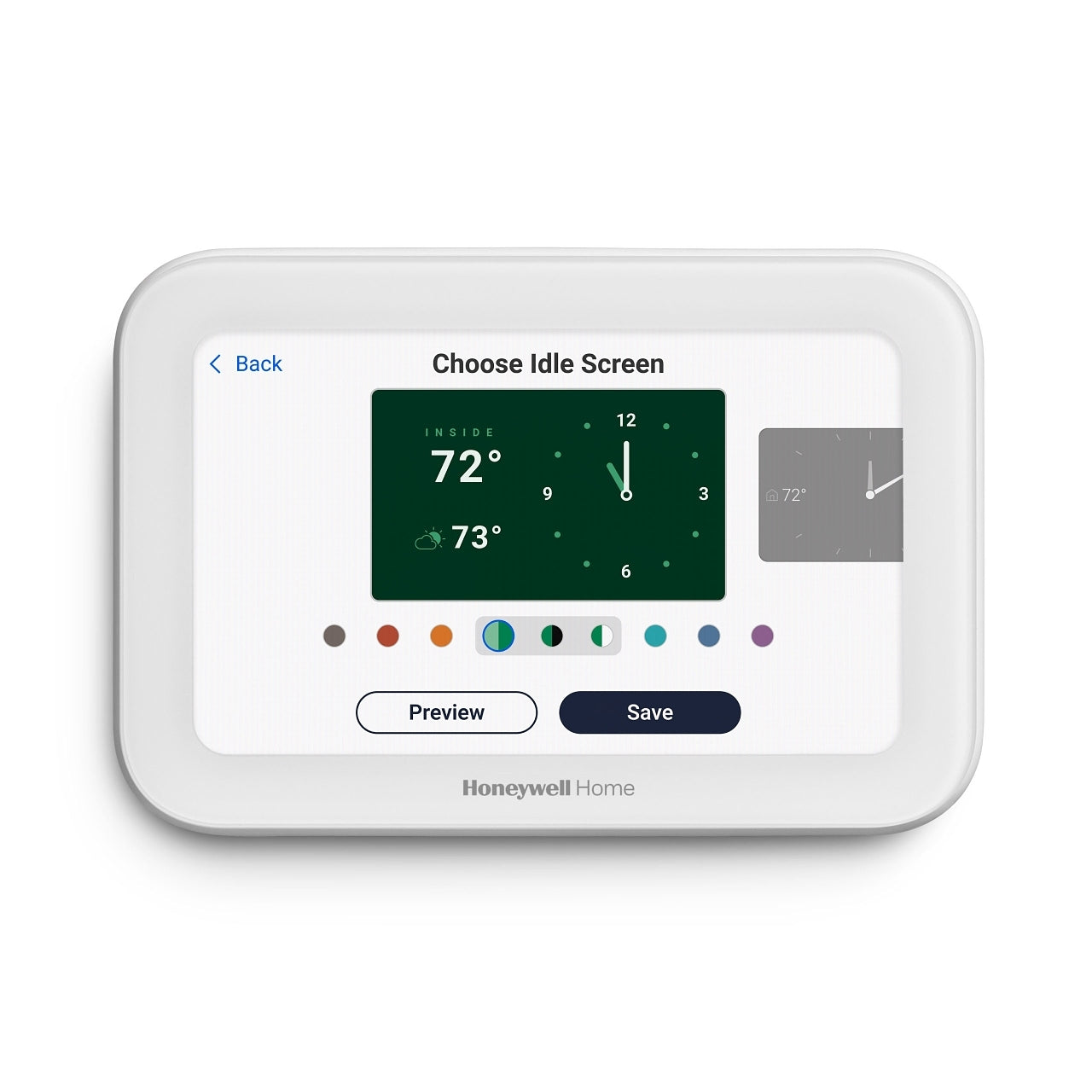

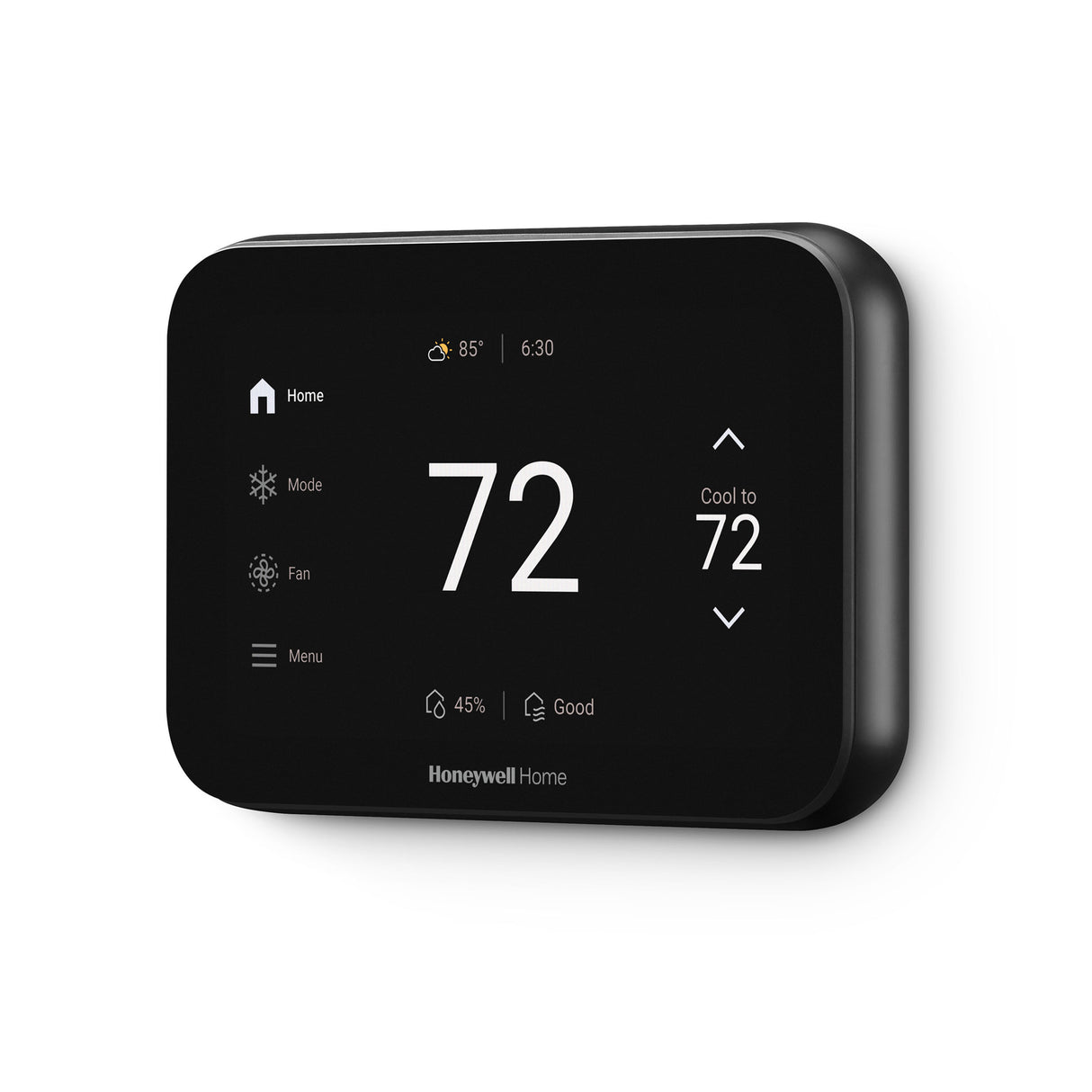

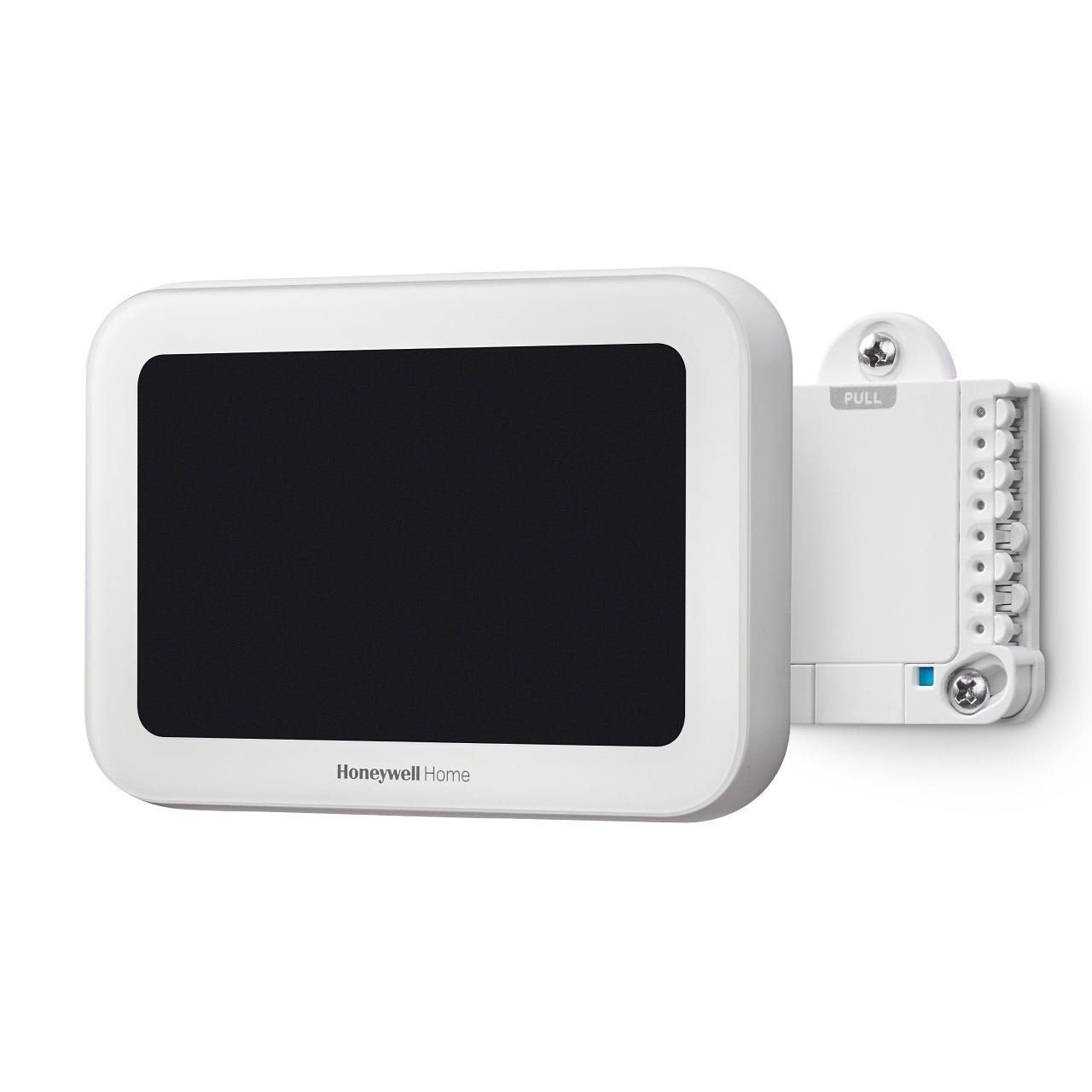

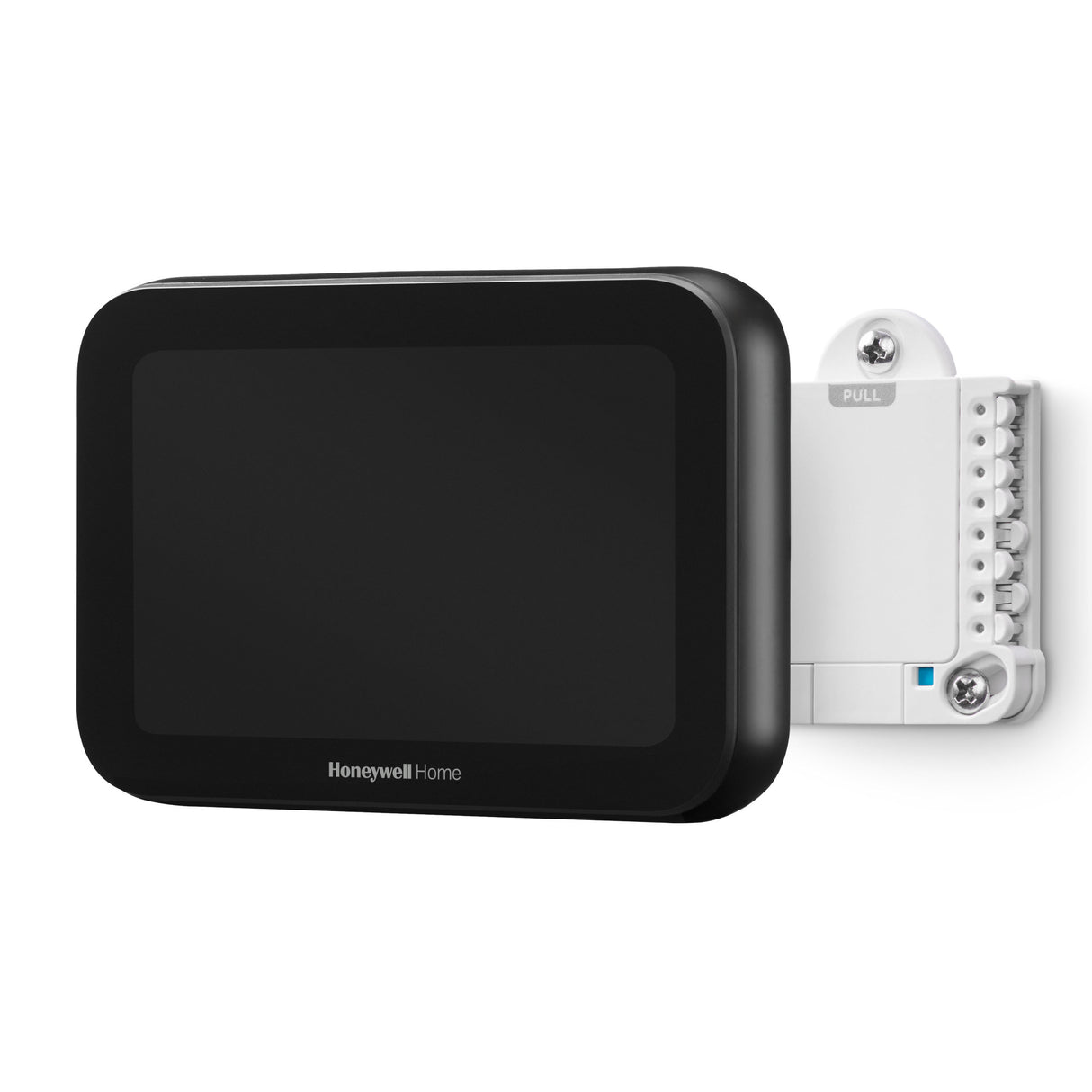

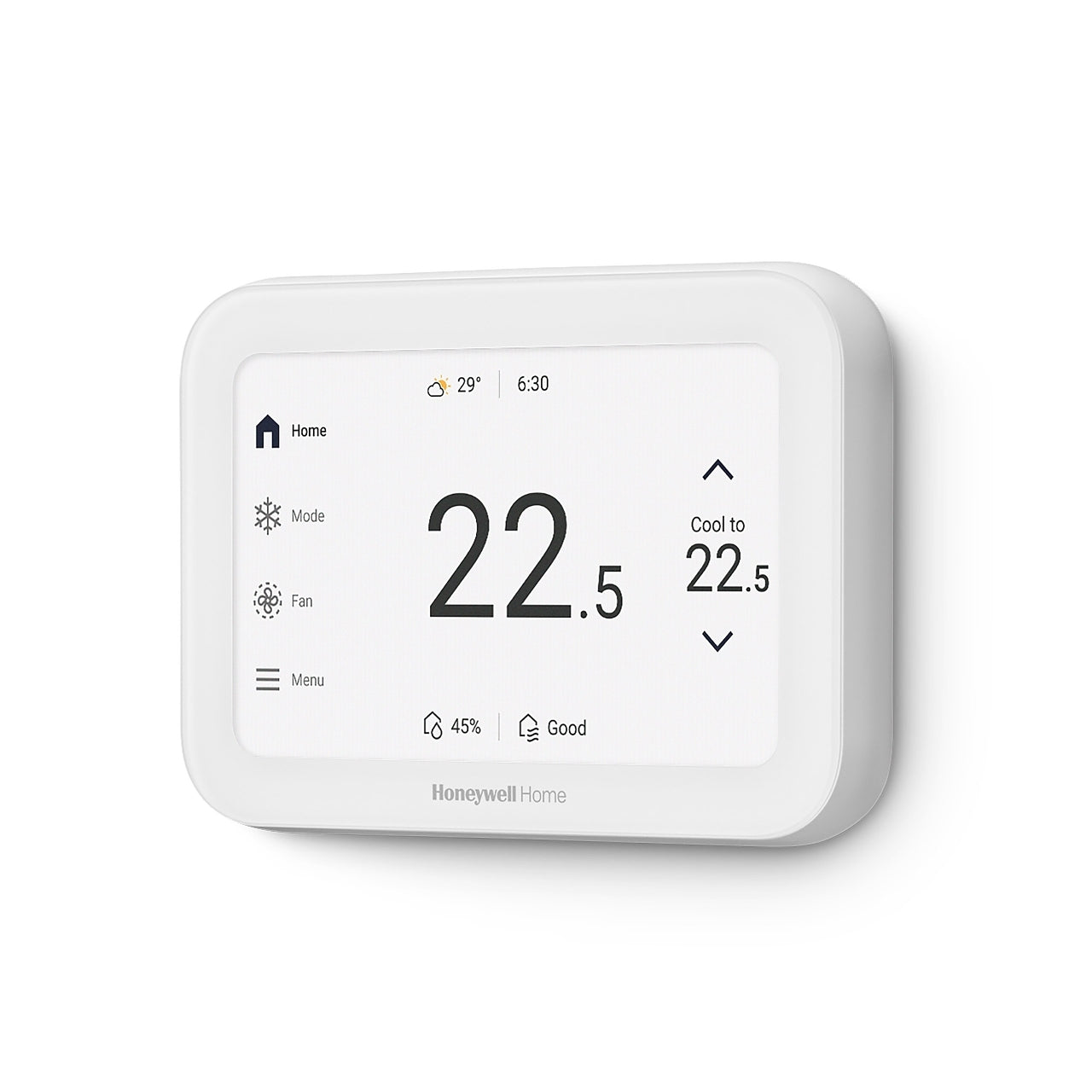

Honeywell THX1100W3/U S1100 Elite Pro 4H/2C Smart Programmable Thermostat

Product Description

The HONEYWELL THX1100W3/U S1100 Elite Pro 4H/2C Smart Programmable Thermostat features a 5″ customizable touchscreen and advanced indoor air quality (IAQ) control. Compatible with systems up to 4 Heat/2 Cool heat pump or 3 Heat/3 Cool conventional. It supports time-based or smart away programming for energy efficiency and allows air quality monitoring.

• Features time-based or smart away programming for energy efficiency.
• Includes onboard radar sensor and allows air quality monitoring.
• Offers up to 4 Heat/2 Cool Heat Pump systems, and up to 3 Heat/3 Cool for conventional systems.

Product Highlights

This smart thermostat is ENERGY STAR certified and integrates with smart home systems. It features a customizable display and occupancy sensor for optimized comfort and energy savings.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: THX1100W3/U

Technical Specifications

• Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
• Product Features: Time-Based or Smart Away programming for energy efficency, Includes Onboard Radar Sensor, Allows Air quality monotoring
• Stages: Up to 4 Heat/2 Cool Heat Pump systems, Up to 3 Heat/3 Cool for conventional systems
• Smart Home Integration: Yes
• Display Size: 5 sq. in
• Touchscreen: Yes
• Display Language: Display selectable for English, French, or Spanish
• Display Time Format: 12 Hour (AM/PM)
• Displayed Information: Indoor Humidity, Outdoor Temperature, Time, Current Setting, Current Temperature, Thermostat Controls, Down Arrow, Up Arrow
• Modes of Operation: Heat, Off, Cool, Auto, Emergency heat
• Program Type: Time-Based or Smart Away, Residential or Commercial
• Energy Star Certified: Yes
• Heat-Cool Changeover: Auto or Manual
• Power Source: Hardwired
• Warranty: 5 Years
• Includes: ElitePRO S1100 Series Thermostat in White, UWP® Wall Plate, Decorative Cover Plate with J-Box Adapter, Mounting hardware, Literature
• For Use With: THP9045A C-wire adapter, C7189R3010-2 room sensor
• Bluetooth Specifications: BLE 2.4 GHz
• WiFi: Yes
• WiFi Specifications: 2.4 & 5GHz
• RedLINK: Yes, 3.0
• Ambient Operating Temperature (Max): 102 °F, 39 °C
• Ambient Operating Temperature (Min): 37 °F, 3 °C
• Operating Relative Humidity (Max): 90 % RH
• Operating Relative Humidity (Min): 5 % RH
• Compatible Sensor: Room Temperature Sensor
• Auto Changeover: Yes
• Humidity Set point (Max): 90 % RH
• Humidity Set point (Min): 0 % RH
• Mounting Type: Horizontal Mount, Junction Box, Wall surface, UWP Mounting System
• Number of Fan Speeds: Up to 3 Fan Speeds for Fan Coil Units
• Power Supply Frequency: 60 Hz
• Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
• Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10°C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Mounting Location: Wall, Junction Box
• Product Height: 3.54 in, 90 mm
• Product Width: 5.25 in, 133 mm
• Product Depth: 0.96 in, 24 mm
• Connectivity: Bluetooth, Redlink, Matter, Wi-Fi
• Manufacturer: Resideo Technologies
• Manufacturer #: THX1100W3/U
• Series: ElitePRO
• Type: Touchscreen
• Utility Rewards: Yes
• Features: Digital Display; ENERGY STAR Certified; Utility Rewards; Video Doorbell Integration; Air Quality Monitoring; WiFi Connection; Touchscreen Display
