Honeywell Residential YTH6320R1001 24v Wireless Focuspro Thermostat Kit – Programmable

Product Description

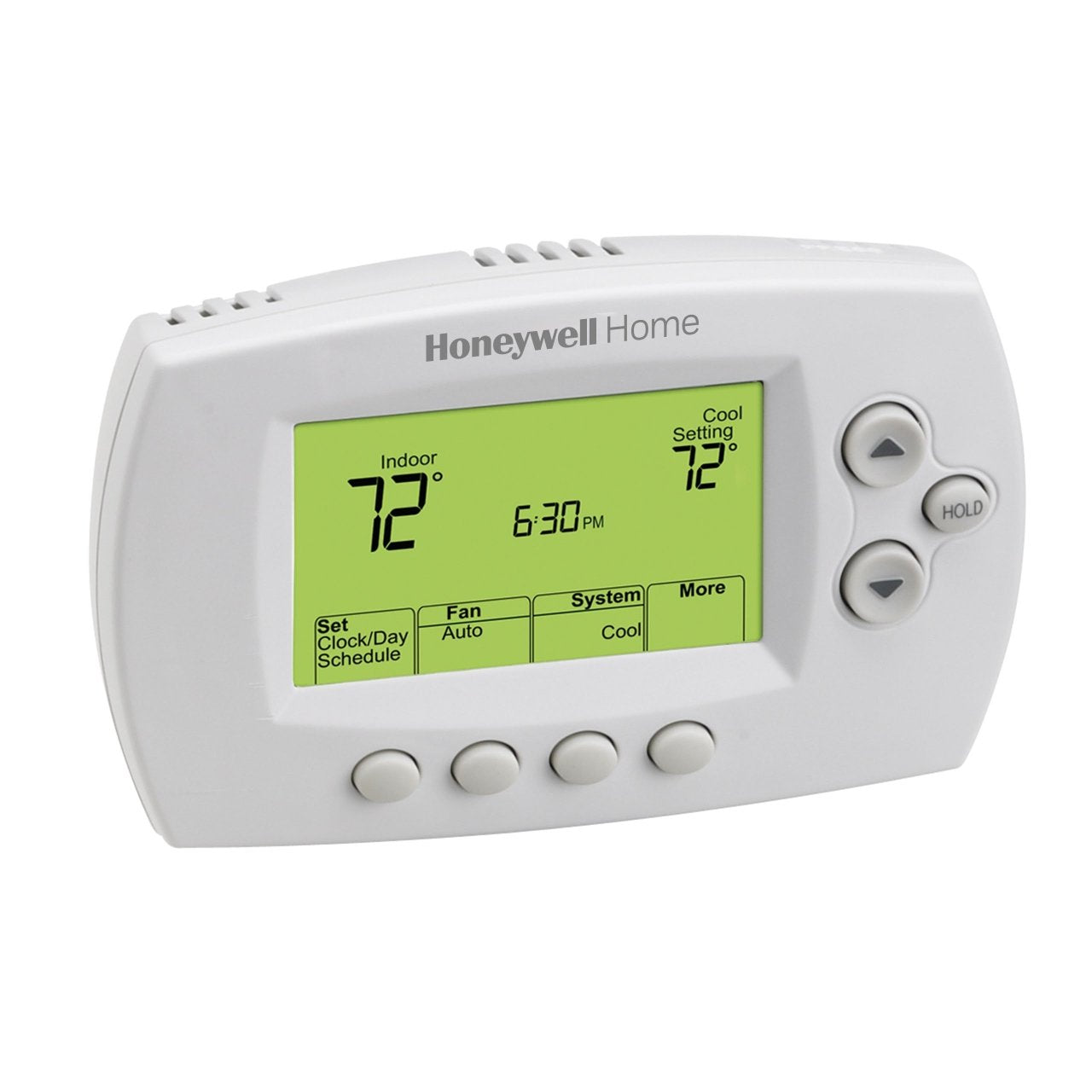

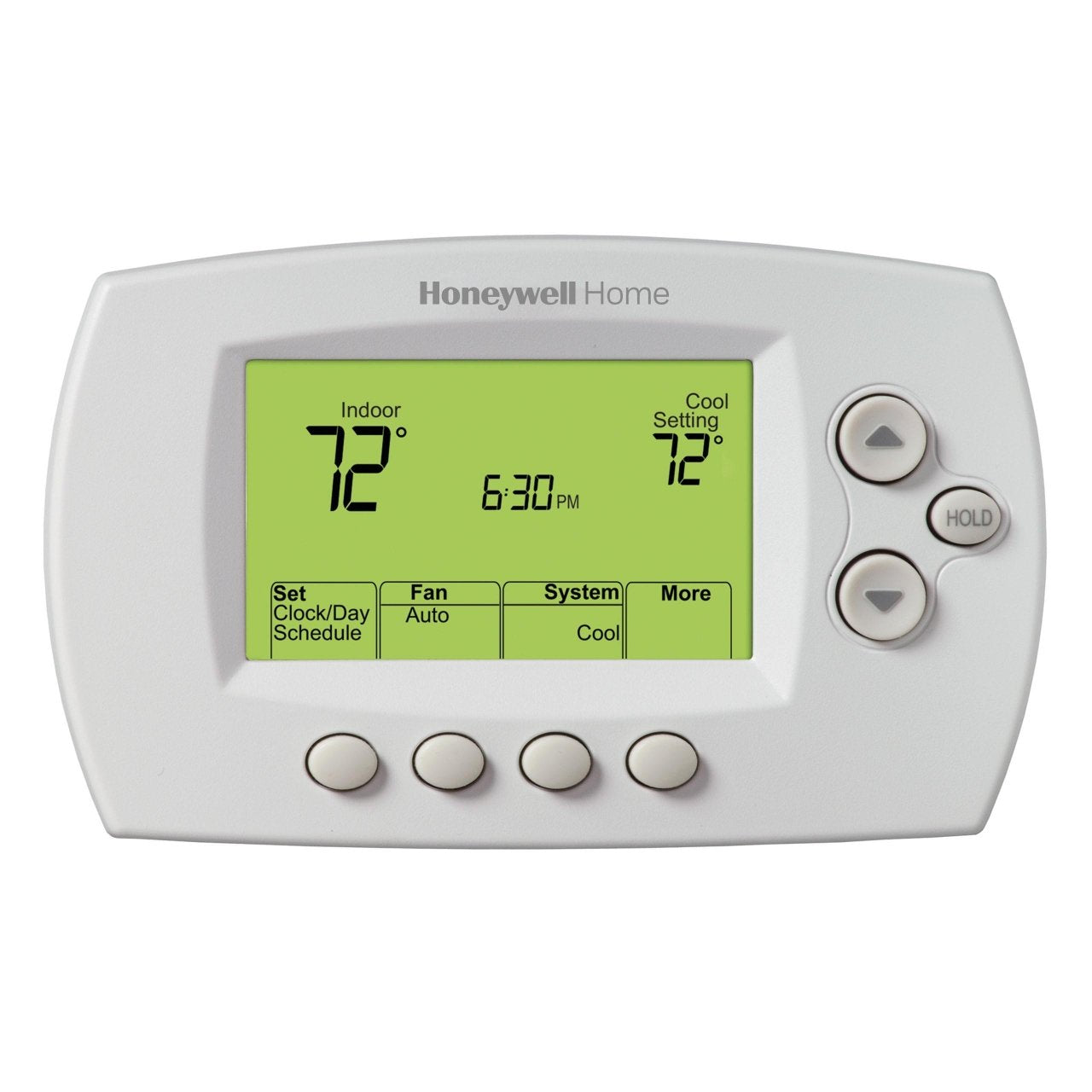

The HONEYWELL RESIDENTIAL YTH6320R1001 is a 24v wireless Focuspro thermostat kit that is programmable and Redlink enabled. It can be used with up to 3H/2C heat pumps or up to 2H/2C conventional systems. The kit includes a wireless FocusPRO 5-1-1 programmable thermostat and an equipment interface module. The thermostat features a large, easy-to-read display and simple controls.

• Programmable
• Redlink Enabled
• Up To 3H/2C Heat Pump
• Wireless connectivity

Product Highlights

This thermostat kit simplifies installation without running wires and helps maintain energy efficiency. It offers remote control via the Honeywell Total Connect Comfort app.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: YTH6320R1001

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: YTH6320R1001
• Thermostat Type: Programmable, Low Voltage, Digital, RedLINK
• WiFi: No
• RedLINK: Yes

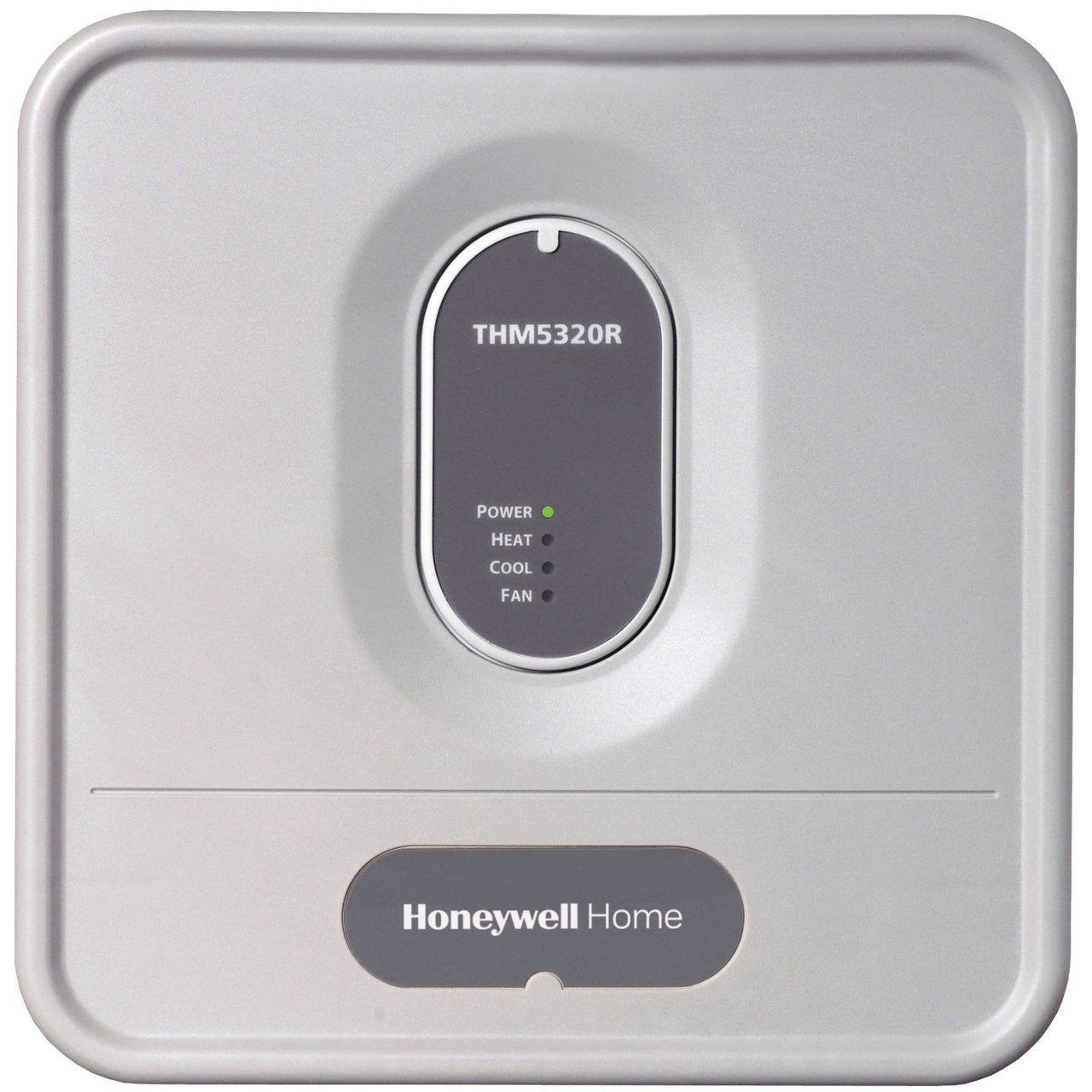

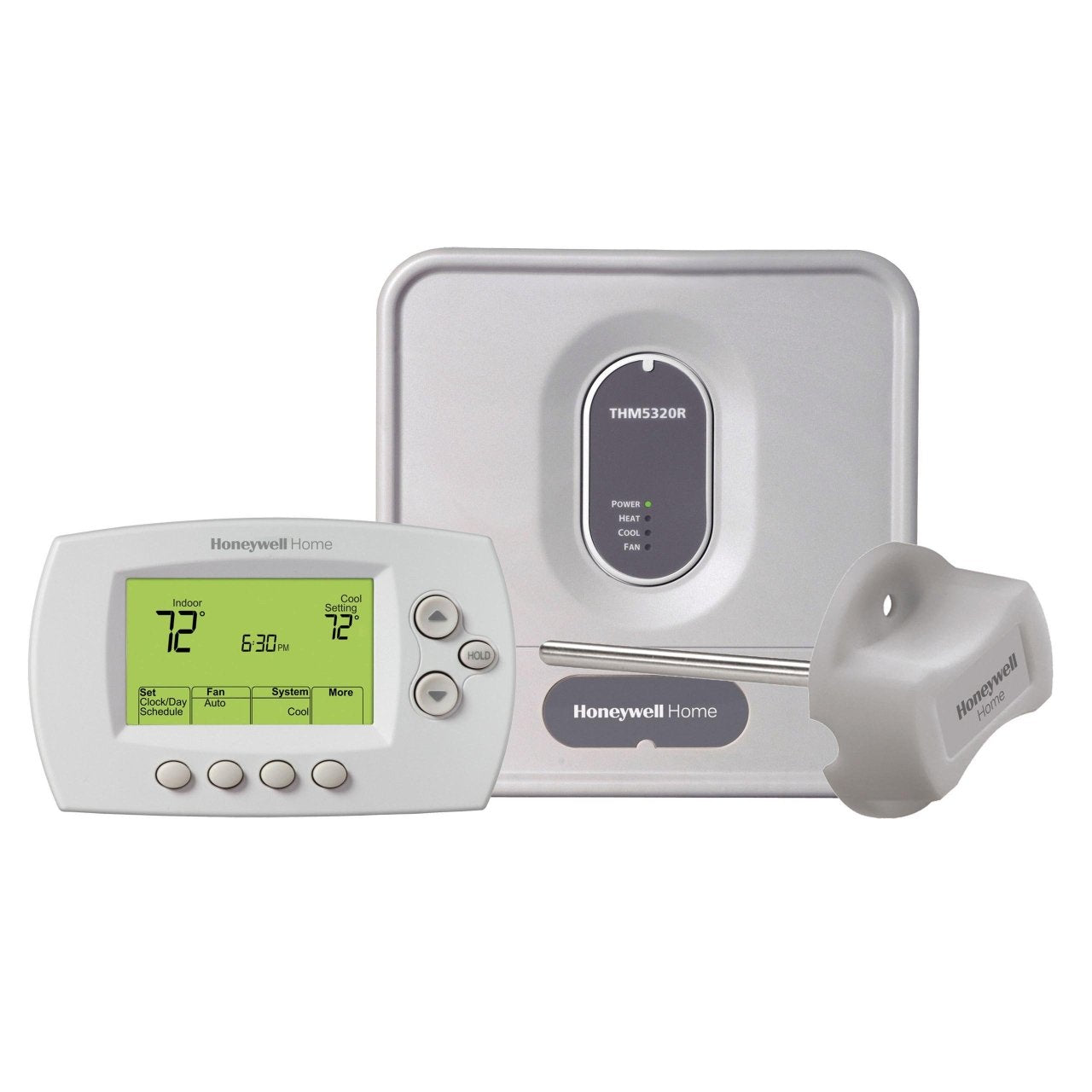

• Includes: C7735A1000 Return Air Sensor, THM5320R1000 Equipment Interface Module, TH6320R1004 Wireless FocusPRO® 5-1-1 Programmable Thermostat
• Utility Rewards: No
• Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
• Modes of Operation: Heat, Cool, Auto, Off, Emergency Heat
• Alerts and Reminders: Battery Replacement, High Indoor Temperature, Low Indoor Temperature
• Display Language: English
• Displayed Information: Indoor Temperature, Status Display
• Energy Star Certified: No
• Product Height: 3.56 in, 91 mm
• Product Width: 5.81 in, 147 mm
• Product Depth: 1.5 in, 38 mm
• Warranty: 5 Years
• Model Name: Honeywell YTH6320R1001 Wireless Focuspro Thermostat Kit, Programmable Redlink Enabled
• Controller Type: Push Button
• Special Feature: Time – Wireless
• Humidity Rating: 5 to 90% RH Non-Condensing
• Programmability: 5-1-1 Programmable, 5-2 Programmable
• Wireless connectivity: Wi-Fi access with TCC App when RedLINK™ gateway is used
