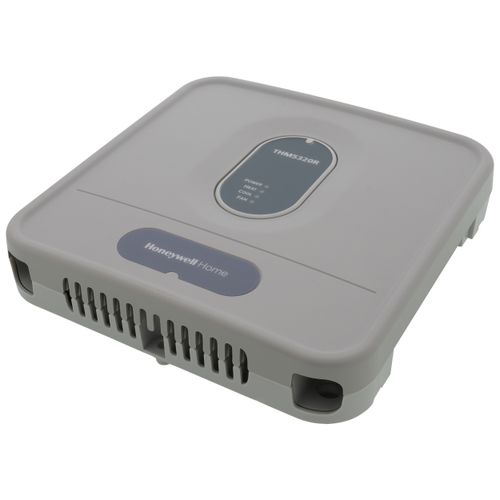

Honeywell Residential THM5320R1000 Equipment Interface Module

Product Description

The HONEYWELL RESIDENTIAL THM5320R1000 Equipment Interface Module is Redlink enabled for use with a wireless Focuspro T Stat. It can control up to 3H. This module seamlessly integrates with the Focuspro T Stat wireless thermostat, empowering users to control up to 3H/2C heat pumps or 2H/2C conventional systems.

• Redlink Enabled
• Use With Wireless Focuspro T Stat
• Can Control Up To 3H

Product Highlights

The Honeywell THM5320R1000 enhances the functionality of compatible thermostats, providing greater flexibility and control over HVAC systems.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: THM5320R1000
• Country of Origin: Import

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: THM5320R1000
• Width (Inches): 8″
• Height: 8-1/8″
• Voltage: 18 to 30 VAC, 50/60 Hz
• Stages: 2 Heat/2 Cool, 3 Heat/2 Cool Heat Pump
• Amperage: 0.6-1
• Power Method: Hardwired
• Application: Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity
• Features: Use With Wireless FocusPRO Thermostats (TH6320R1004 or TH5320R1002 Thermostats)
• Depth (Inches): 1-7/8″
• Wattage: 10.8 to 30
• Wiring: R, W2-Aux/E, Y2, RAS, C, Y, W-O/B, G, L, Rc, Rh
• Changeover: Auto, Manual
• Temperature Range (F): 40°F – 99°F
• Warranty: 1 Year
• Operating Humidity: 5 to 95 percentage RH, non-condensing
• Operating Temperature: -40 to 165 deg F

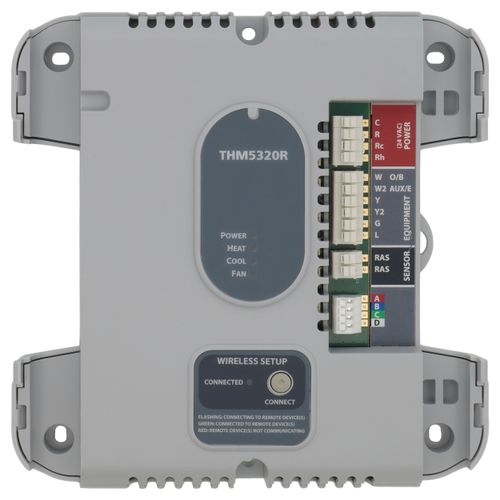

• Terminal Designations: C, R, RC, RH, W-O/B, W2-AUX/E, Y, Y2, G, L, RAS
• Additional Features: LEDS for power and system status
• Suitable For Use With: 3 Heat/2 Cool Pump System
