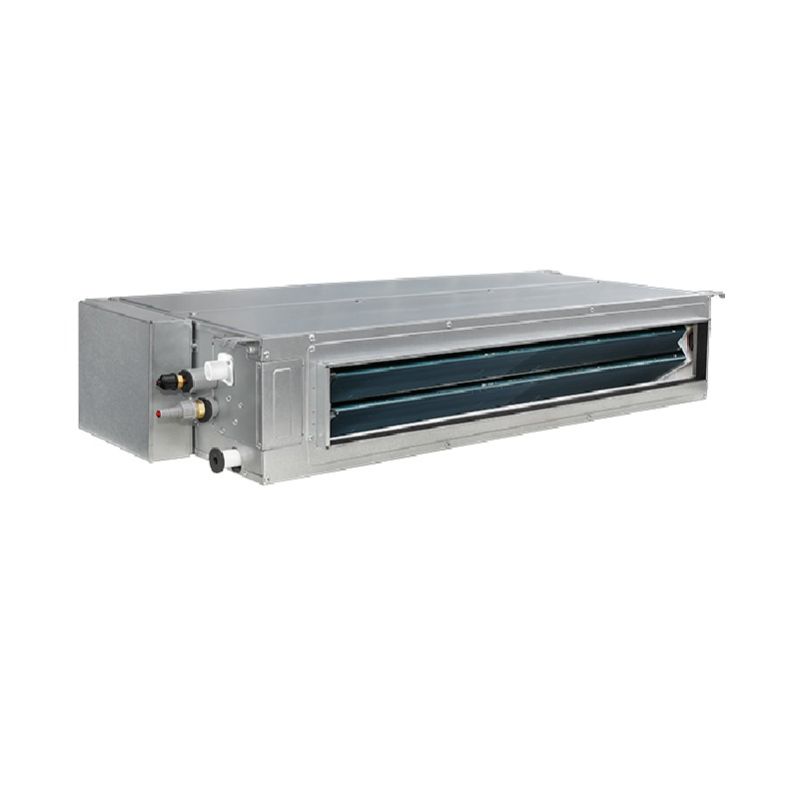

Gree DUC09HP230V1R32AH 9K BTU R32 Slim Duct Compatible Mini-Split Air Handler

$784.27

The Gree DUC09HP230V1R32AH is a mini-split air handler with a capacity of nine thousand BTU. It operates using R32 refrigerant, which is more efficient and environmentally friendly. This unit features a slim line construction that allows it to fit into tight spaces.

Compare
Add to wishlist
SKU: DUC09HP230V1R32AH Categories: ,
Description

Product Description

The Gree DUC09HP230V1R32AH is a mini-split air handler with a capacity of nine thousand BTU. It operates using R32 refrigerant, which is more efficient and environmentally friendly. This unit features a slim line construction that allows it to fit into tight spaces.

  • Cooling and heating capacity of 14,100 BTU and 15,500 BTU
  • Internal condensate pump included for easy drainage
  • Wireless remote with LCD display for convenient control

Product Highlights

This air handler is designed for quiet operation with a decibel rating of 38 dBA. The cleanable air filter and refrigerant sensor ensure optimal performance and maintenance ease.

Product Information

Standard Information

  • Voltage: 230V
  • Mount Type: Ceiling
  • Zone Capacity: 5

Technical Specifications

  • Cooling/Heating Capacity: 14,100/15,500 BTU
  • Dimensions: 32 43/64 inches W x 11 13/16 inches H x 29 11/16 inches D
  • Weight: 70.6 lb
  • Outside Air Capability: Yes
  • Flexible Return Air: Bottom or rear
  • Aluminum Fins and Copper Tube Coils: Yes
  • Decibel Rating: 38 dBA
  • Internal Condensate Pump: Yes
Additional information
Weight70.60 lbs
Brand
Voltage
Shipping and Delivery
HVAC Equipment Packaging
HVAC Equipment Delivery

SHIPPING & DELIVERY

We ship HVAC equipment nationwide via freight carriers and standard parcel services. All orders over $500 qualify for FREE shipping. Heavy equipment (condensers, air handlers, packaged units) ships via LTL freight with liftgate service included.

DELIVERY DETAILS

  • Standard shipping: 5-10 business days for in-stock items
  • Freight/LTL delivery: 7-14 business days for heavy equipment
  • Expedited shipping available for an additional fee
  • Curbside delivery included; inside delivery available upon request

All HVAC equipment is professionally packaged in factory crating to ensure safe transit. Units are inspected before shipping and insured against damage. Please inspect your delivery upon arrival and note any damage on the carrier's bill of lading.
