Fujitsu ARU7RLF Ductless Mini-Split Indoor Ducted 7k Cool/8k Heat 208/230/1 Multi-Zone Heat Pump R410A

Name: Fujitsu ARU7RLF Ductless Mini-Split Indoor Ducted 7k Cool/8k Heat 208/230/1 Multi-Zone Heat Pump R410A
Brand: FUJITSU
SKU: ARU7RLF
Price: 1115.45 USD
Availability: InStock

$1,115.45

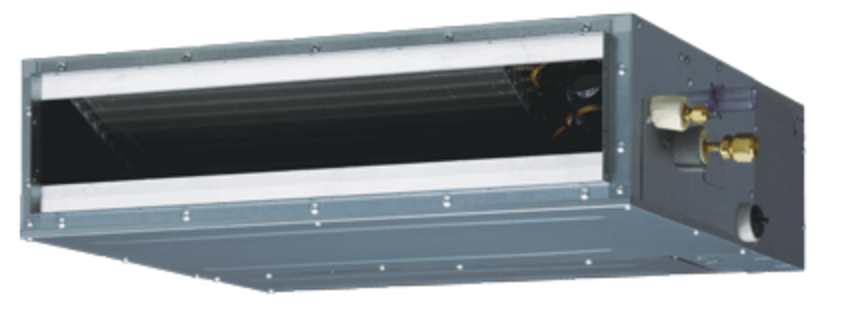

The Fujitsu ARU7RLF is a ductless mini-split indoor unit designed for multi-zone systems. It uses thin copper tubing to pump refrigerant directly to discreet wall mounted or concealed units. Capable of cooling, drying, and heating operations, this concealed duct indoor unit installs easily in ductwork and has low operating sound levels.

Compare

Add to wishlist

SKU: ARU7RLF Categories: Air Handlers, Concealed Duct

Description

Product Description

Capable of cooling, drying, and heating operations.
Installs easily in ductwork with no visible profile.
Features a condensate pump to remove condensation build-up.

Product Highlights

This Fujitsu mini-split offers efficient cooling and heating for year-round comfort. Its quiet operation and dehumidifying capabilities make it a versatile choice for any home.

Product Information

Standard Information

Brand: FUJITSU
Manufacturer Part Number: ARU7RLF
Country of Origin: China

Technical Specifications

Cooling BTU: 7000
Heating BTU: 7000
Voltage: 208/230
Refrigerant: R410A
Mounting Style: Ducted
Product Category: Mini Split System Components
Type: Concealed Duct
Product Line: Halcyon HFI
Operating Mode: Heating and Cooling
Multi-Zone Compatible: Yes
Refrigerant Type: R-410A
Indoor Unit Size(s): 7
Installation Location: Indoor
Cooling Capacity: 7000 BTU
Maximum Air Flow: 324 CFM
Minimum Air Flow: 259 CFM
Minimum Sound Level: 24 dB
Maximum Sound Level: 28 dB
Phase: 1
Frequency: 60 Hz
Gas Connection Size: 3/8 Inch
Liquid Connection Size: 1/4 Inch
Product Height: 7 13/16 Inches
Product Width: 27 9/16 Inches
Product Depth: 24 7/16 Inches
ETL Listed: Yes
AHRI Certified: Yes
ISO Certified: Yes
Parts Warranty: 5 Years
Nominal cooling: 7000
Nominal Heating: 7000
Electrical Designation: 1-60-208/230
Suction Line Size: 3/8
Liquid Line Size: 1/4
Length (inches): 24.4375
Height (inches): 7.8125
Width (inches): 27.5625
Thermostat: Remote
Configuration: Concealed Duct
Hertz: 60
SEER: 21.5
CFM: 324
Connection: 1/4″ X 3/8″ Flare
Cooling BTU’s: 7,000
Heating BTU’s: 8,100
Brand: Fujitsu
MPN: ARU7RLF
GTIN: 0099461143814
UPC: 0099461143814
eBay Product ID (ePID): 3060330273
Heating System: Heat Pump
Model: ARU7RLF
Volts: 208-230
Features: Indoor, Outdoor

Additional information

Weight	37.00 lbs
Brand	FUJITSU
BTU	7000 BTU
SEER	21.5
Voltage	208/230
Refrigerant	R-410A
