Goodman – GLZS4BA4810 Split Heat Pump 15.2 SEER2 (4 Ton) + AMST48CU1300 Air Handler, Nine Speed ECM Motor, 4 Ton

Bundle Includes – Qty 1: GLZS4BA4810 and Qty 1: AMST48CU1300

Product Description

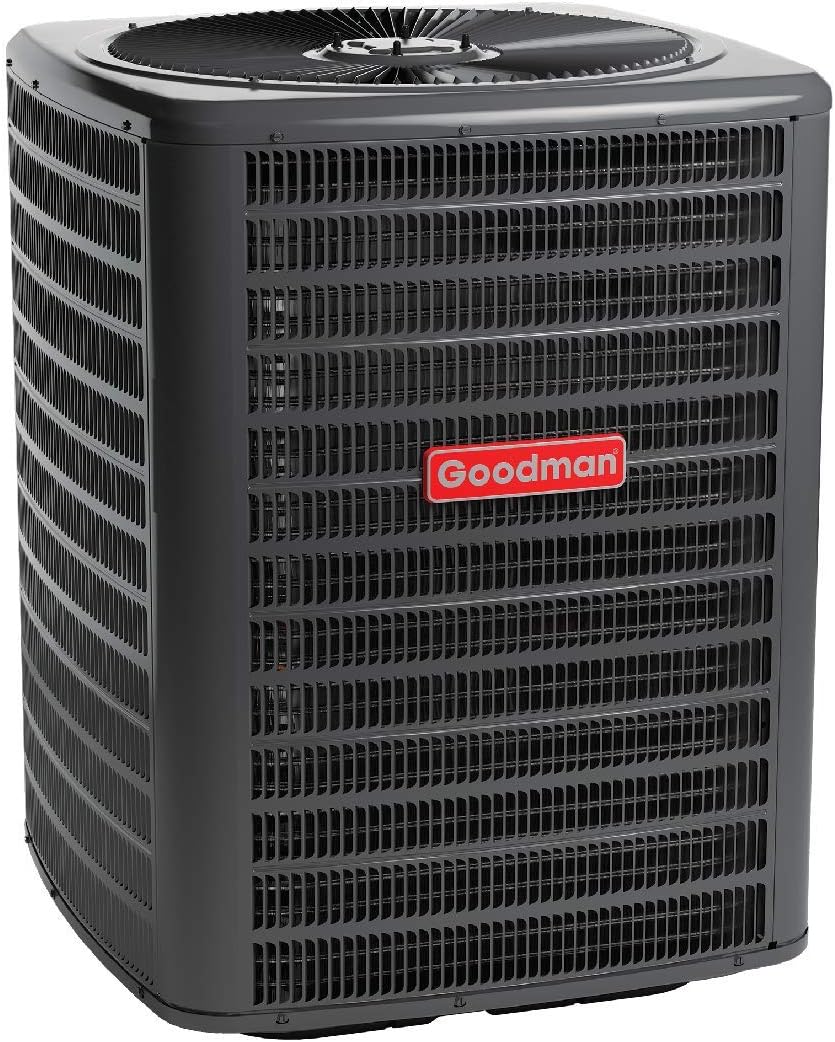

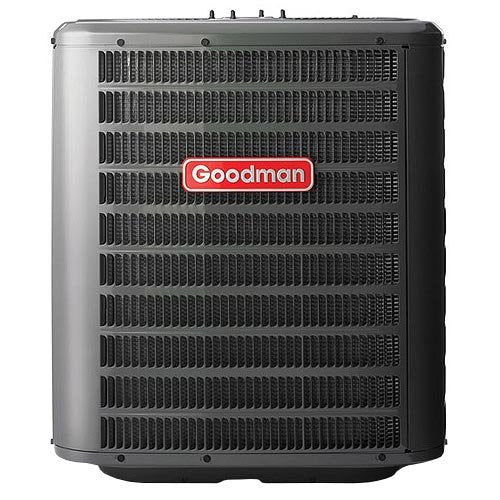

The Goodman GLZS4BA4810 is a split heat pump designed for residential single-family use. This unit is rated at 15.2 SEER2 and features a single stage of operation, making it efficient for cooling and heating applications. Ideal for installations that require ductwork, this heat pump operates within a temperature range suitable for various climates.

• High-efficiency compressor with SmartShift technology for quiet operation
• Factory-installed components for easy setup and maintenance
• Compatible with R-32 refrigerant for reduced environmental impact

Product Highlights

This Goodman heat pump is designed to meet the 2023 M1 Test Standards, ensuring reliable performance while providing energy savings.

Product Information

Standard Information

• Brand: Goodman
• Product Type: Split Heat Pump
• System Family: Unitary Split System
• Market Type: Residential-Single Family

Technical Specifications

• Model Efficiency: 15.2 SEER2
• Heating Capacity: 48000 Btu/H
• Cooling Capacity: 45500 Btu/H
• Weight: 269 lb
• Dimensions: 35.5 in (Width) x 36.5 in (Height) x 35.5 in (Depth)
• Refrigerant Type: R-32
• Power Supply: 208/230 V, 60 Hz
• Max Voltage: 40 A
• Compressor Type: Scroll, Single Stage

Product Description

The Goodman AMST48CU1300 is a AMST Ducted Multi-position Air Handler, Nine Speed ECM Motor, 4 Ton, 21-1/8 in Cabinet with TXV Expansion. It is suitable for both cooling and heating applications. The design features an internal thermal expansion valve and is optimized for HVAC systems using R-32 refrigerant.

• 4 ton capacity for efficient climate control.

• Nine-speed ECM motor for tailored airflow.

• All-aluminum evaporator coil for durability and performance.

Product Highlights

This air handler meets high standards for energy efficiency and is designed for ease of installation in various configurations, including horizontal and vertical orientations.

Product Information

Standard Information

• Brand: Goodman

• MPN: AMST48CU1300

Technical Specifications

• Cooling Capacity: 48000 BTU/h

• Voltage Rating: 208/230 V

• Drain Connection: 3/4 inch

• Liquid Line Size: 3/8 inch

• Suction Line Size: 3/4 inch

• Depth: 21 inches

• Width: 21-1/8 inches

• Height: 58 inches

• Weight: 153 pounds
