Fujitsu General America AOUA72RLBV Aoua72rlbv 72mbh Vrf Heat Pump

Product Description

The FUJITSU GENERAL AMERICA AOUA72RLBV Aoua72rlbv 72MBH VRF heat pump is designed for high efficiency. Features include compact design and advanced technologies. It supports long piping length, top class indoor unit connection, and high static pressure. It also offers best-in-class low-noise operation.

• Compact design

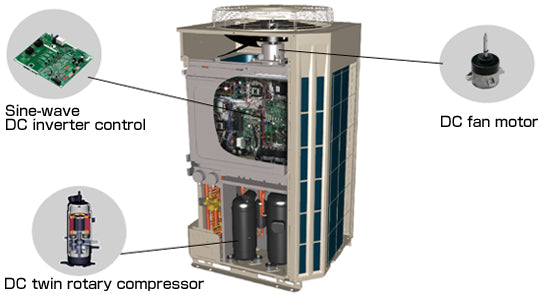

• Advanced technologies for high efficiency
• Long piping length

Product Highlights

This VRF heat pump offers industry-leading energy savings and flexible installation options for commercial use.

Product Information

Standard Information

• Brand: FUJITSU GENERAL AMERICA
• Manufacturer Part Number: AOUA72RLBV

Technical Specifications

• MPN: AOUA72RLBV
• Brand: FUJITSU GENERAL AMERICA
• Power source Phase: 3-phase
• Voltage: 208 / 230 V
• Frequency: 60 Hz
• Cooling Capacity: 72,000 BTU/h
• Heating Capacity: 81,000 BTU/h
• EER (Non-Ducted) Cooling: 12.1 Btu/hW
• EER (Ducted) Cooling: 11.9 Btu/hW
• SEER (Non-Ducted) Cooling: 23.9 Btu/hW
• SEER (Ducted) Cooling: 21.5 Btu/hW
• COP (Non-Ducted) Heating: 4.19 W/W
• COP (Ducted) Heating: 4.01 W/W
• Air Flow Rate: 9,000 CFM (5,298 m³/h)
• Cooling Sound Pressure Level: 54 dB(A)
• Heating Sound Pressure Level: 55 dB(A)
• Height: 64-1/2 inch (1,638 mm)
• Width: 42-1/2 inch (1,080 mm)
• Depth: 18-7/8 inch (480 mm)
• Refrigerant Type: R410A
• Liquid Connection Pipe Diameter: 3/8 inch (9.52 mm)
• Discharge Gas Connection Pipe Diameter: 3/4 inch (19.05 mm)
• Cooling Operation Range: 5 to 115 °FDB (-15 to 46 °CDB)
• Heating Operation Range: -4 to 70 °FDB (-20 to 21 °CDB)
