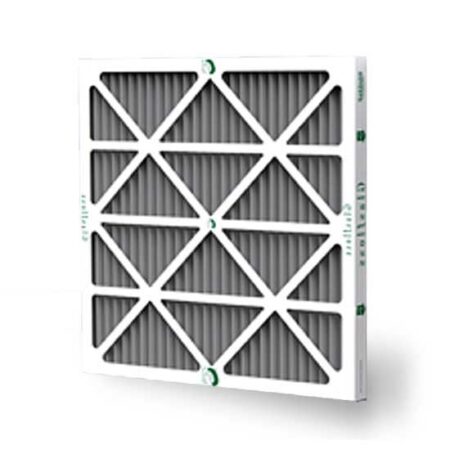

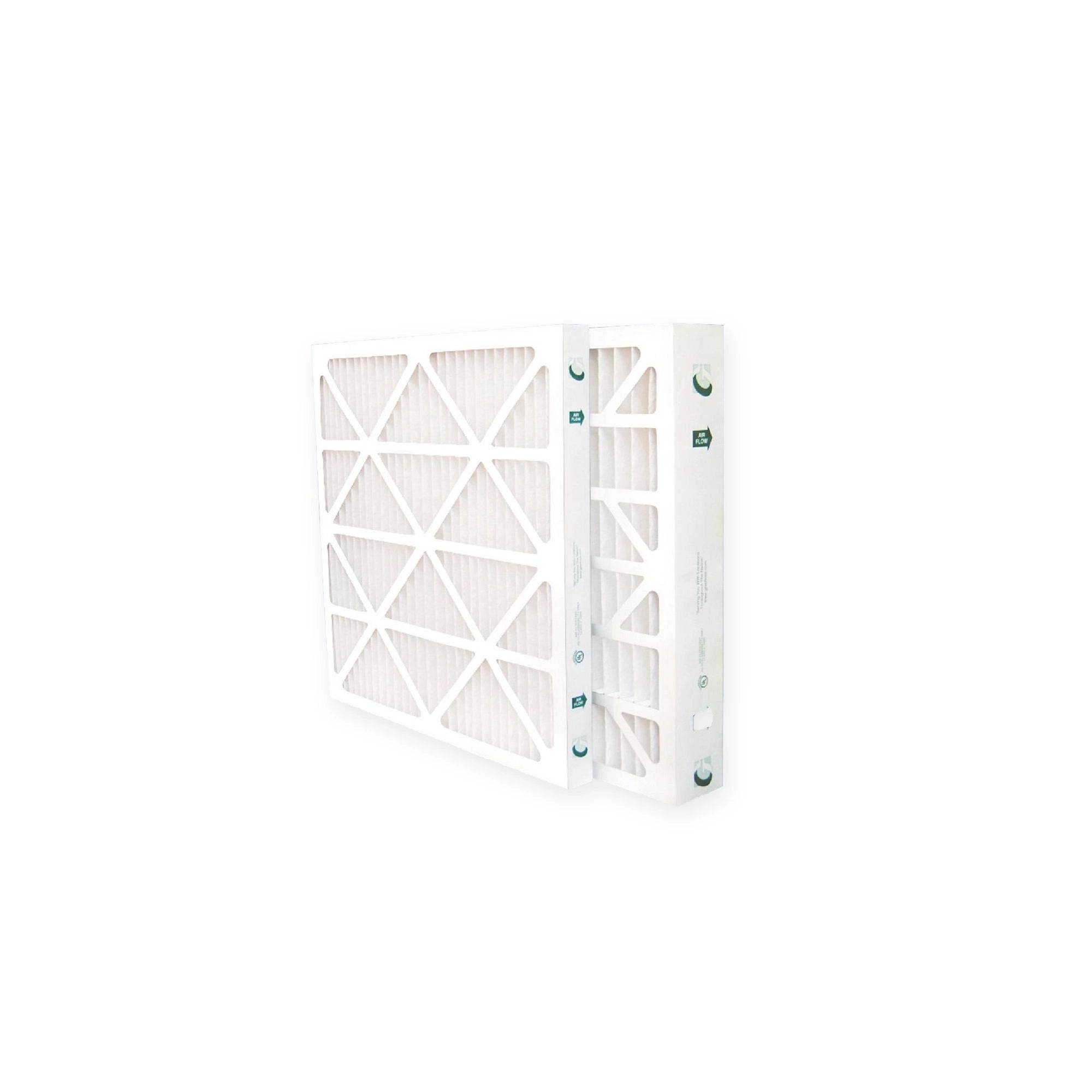

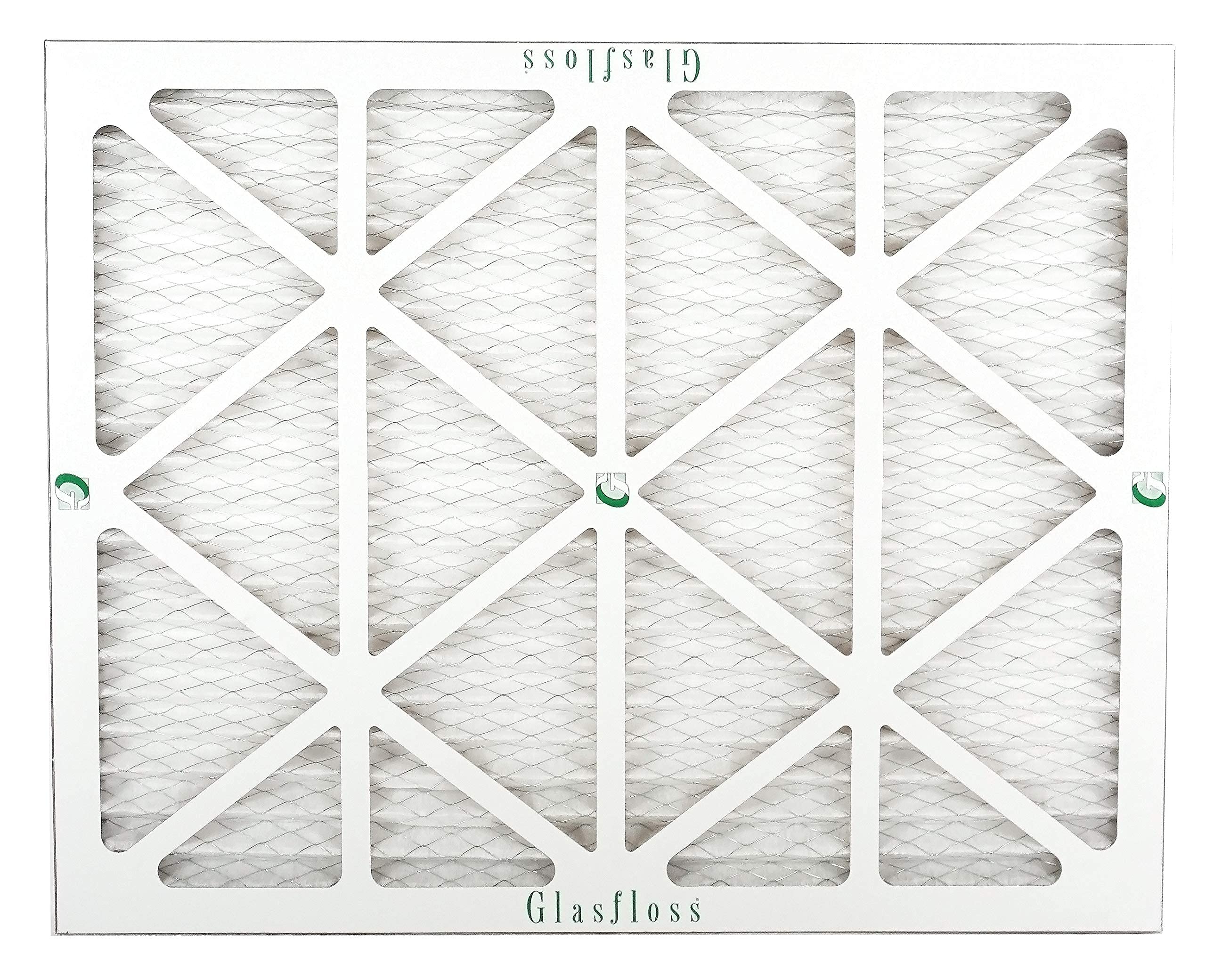

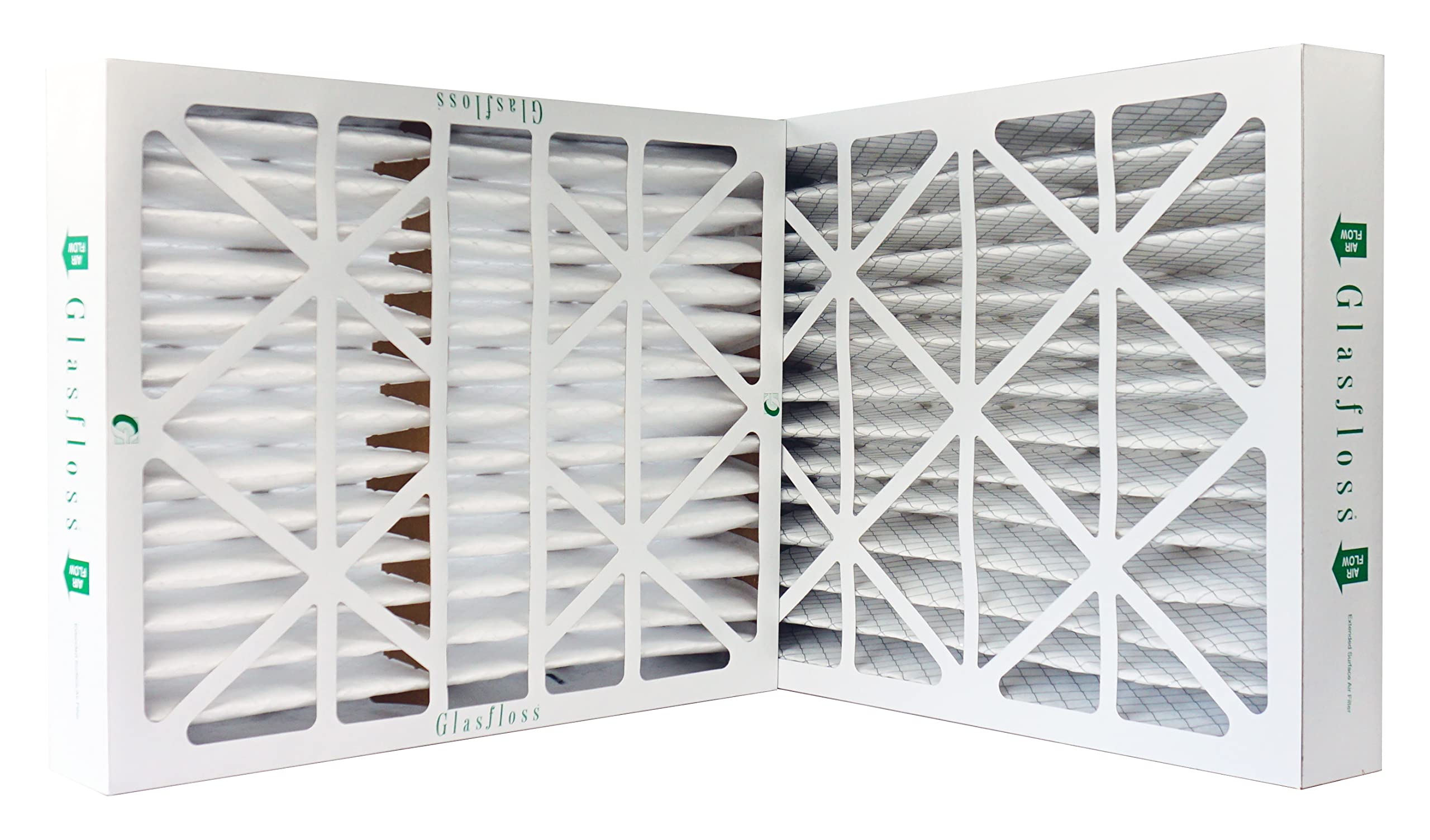

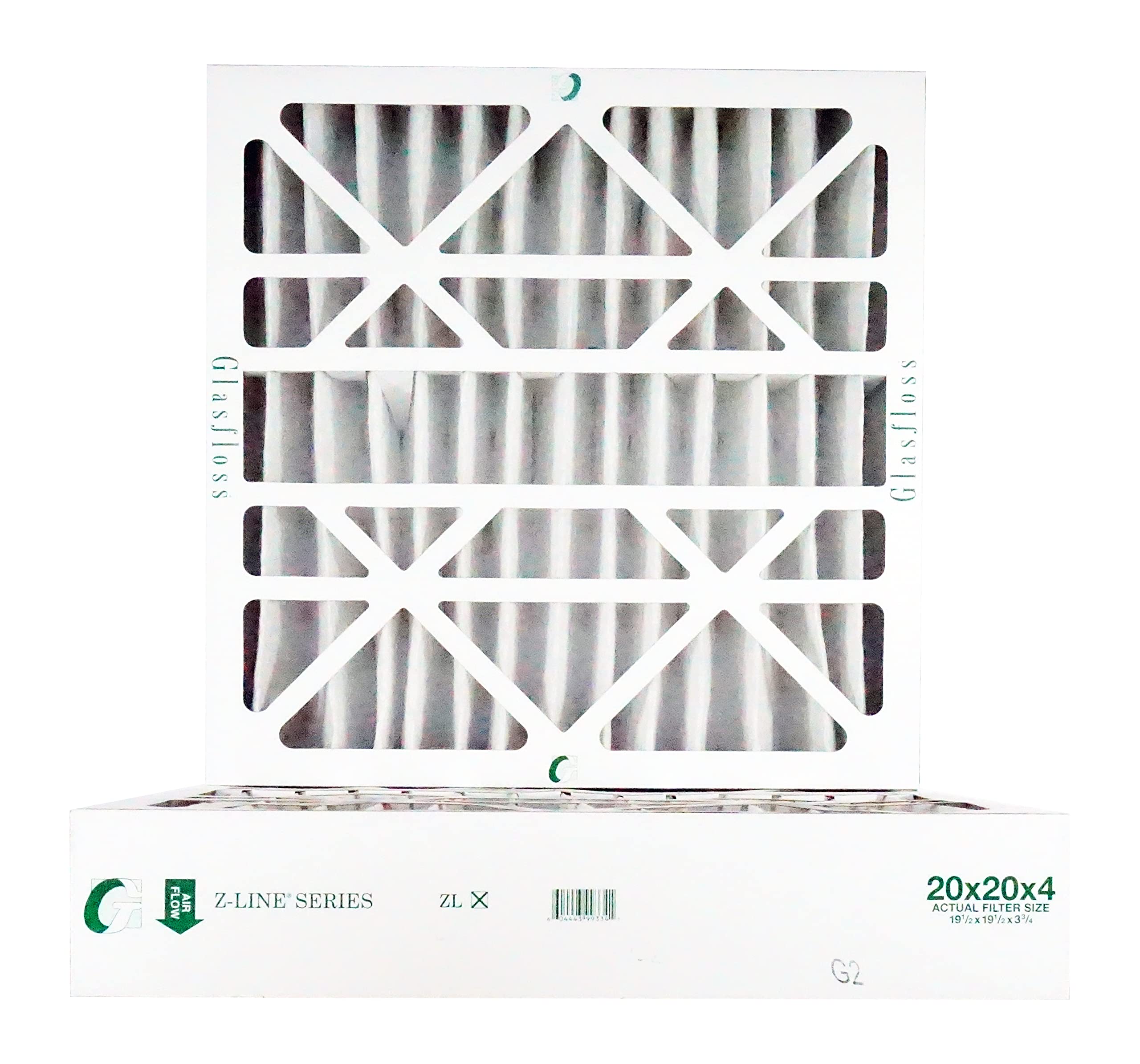

Glasfloss ZLP20244 Z-Line Pleated Filter 20 x 24 x 4 inch

Product Description

The Glasfloss ZLP20244 Z-Line Series pleated filters offer improved performance for many applications. These filters feature fibers that do not absorb moisture and will not support microbial growth. The Glasfloss Z-Line Series SB, ZL and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

Glasfloss ZLP20244 filters provide excellent performance and value for a wide range of applications. They are ideal for residential, commercial, and industrial HVAC systems.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP20244
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Width: 24
• Height: 20
• Length: 4
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 9
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 20
• Nominal Filter Height in Inches: 24
• Nominal Filter Thickness in Inches: 4
• Nominal Filter Size in Inches (W x H x D): 20 x 24 x 4
• Actual Size: 19-3/8 x 23-3/8 x 3-3/4 in
• Temperature Rating: 180 deg F
• Media Material: Synthetic Fiber
• Flow Rate: 500 fpm
• Resistance: 0.25 Inch WG
• Application: Residential, Commercial, Industrial
• Applicable Standard: ANSI/ASHRAE 52.2, USGBC, NAFA, HardI, UL
• Depth: 4 in
• Final Resistance: 1 in WG
• Initial Resistance: 0.18 in wg
• Series: Z-Line ZL
