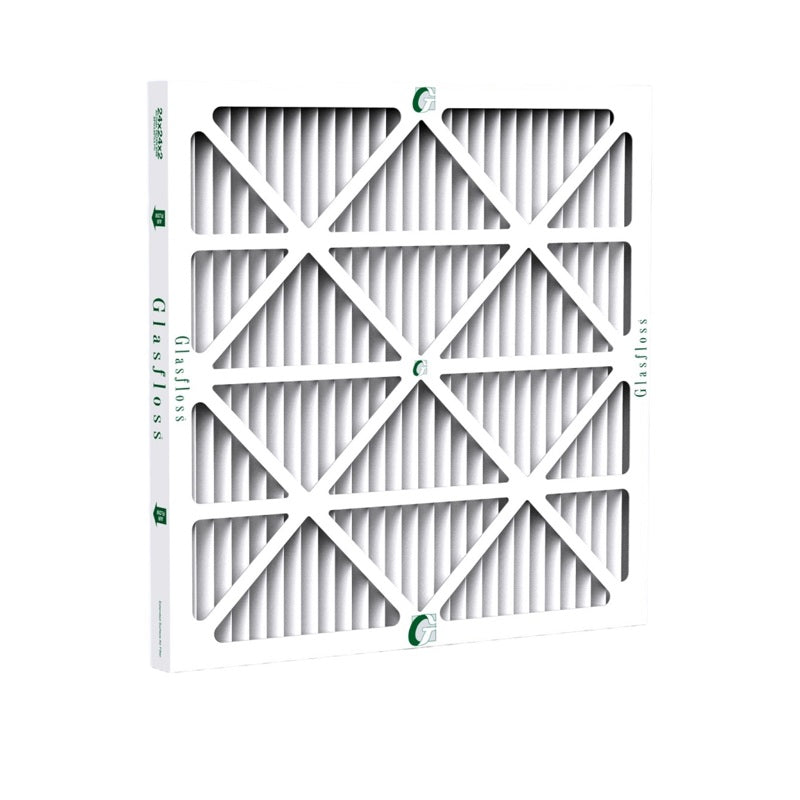

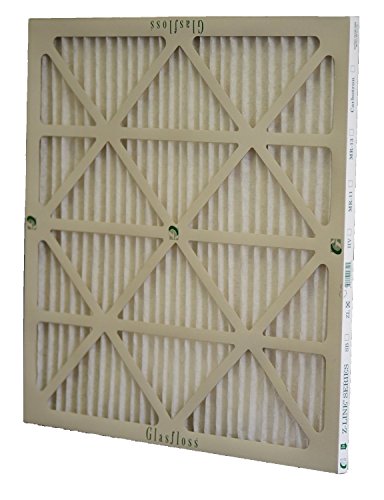

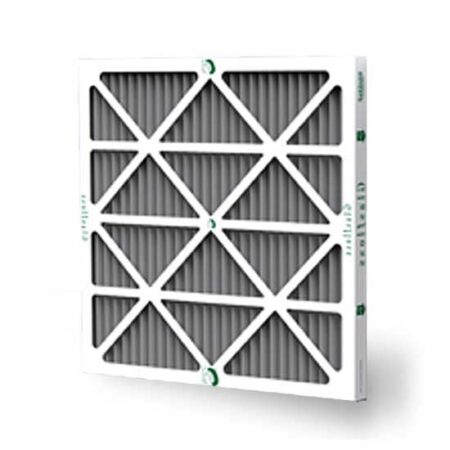

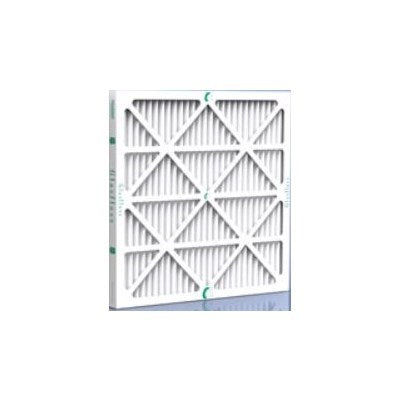

Glasfloss ZLP18244 Z-Line Standard Capacity Pleated Filter 18 inches x 24 inches x 4 inches

Product Description

The Glasfloss ZLP18244 Z-Line Series pleated filters offer improved performance for virtually every application. These filters feature fibers which do not absorb moisture and will not support microbial growth. The filter achieves a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard. It is suitable as a geothermal unit replacement filter.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Standard Size 4” and 6” Thick ZL, HV & MR-11 Incorporate Media Separators
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP18244 filter provides excellent performance and value for a wide range of applications. Ideal for use in high-velocity systems.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP18244
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP18244
• Width: 18 in
• Height: 24 in
• Length: 4 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 9
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 18
• Nominal Filter Height in Inches: 24
• Nominal Filter Thickness in Inches: 4
• Nominal Filter Size in Inches (W x H x D): 18 x 24 x 4
• Initial Resistance: 0.18 in wg
• Media Material: Synthetic Fiber
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Temperature Rating: 180 deg F
• Final Resistance: 1 in-WG
• Rated Velocity: 500 fpm
• Series: Z-Line ZL
• Application: Geothermal Unit Replacement Filters
• Construction: Heavy-Duty Moisture Resistant
• Backing: Galvanized Expanded Metal
• Maximum Temperature: 180 deg F
