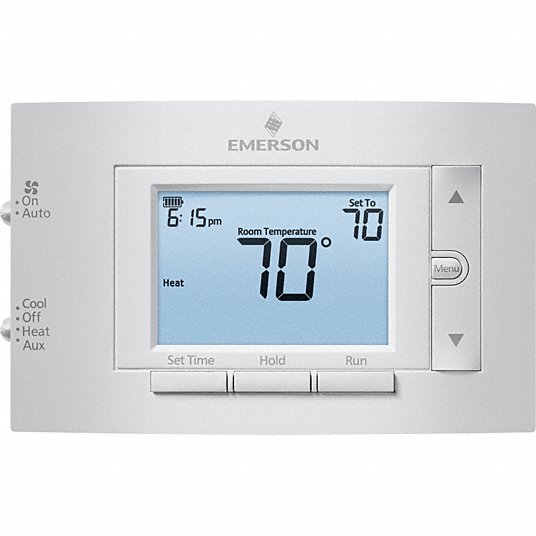

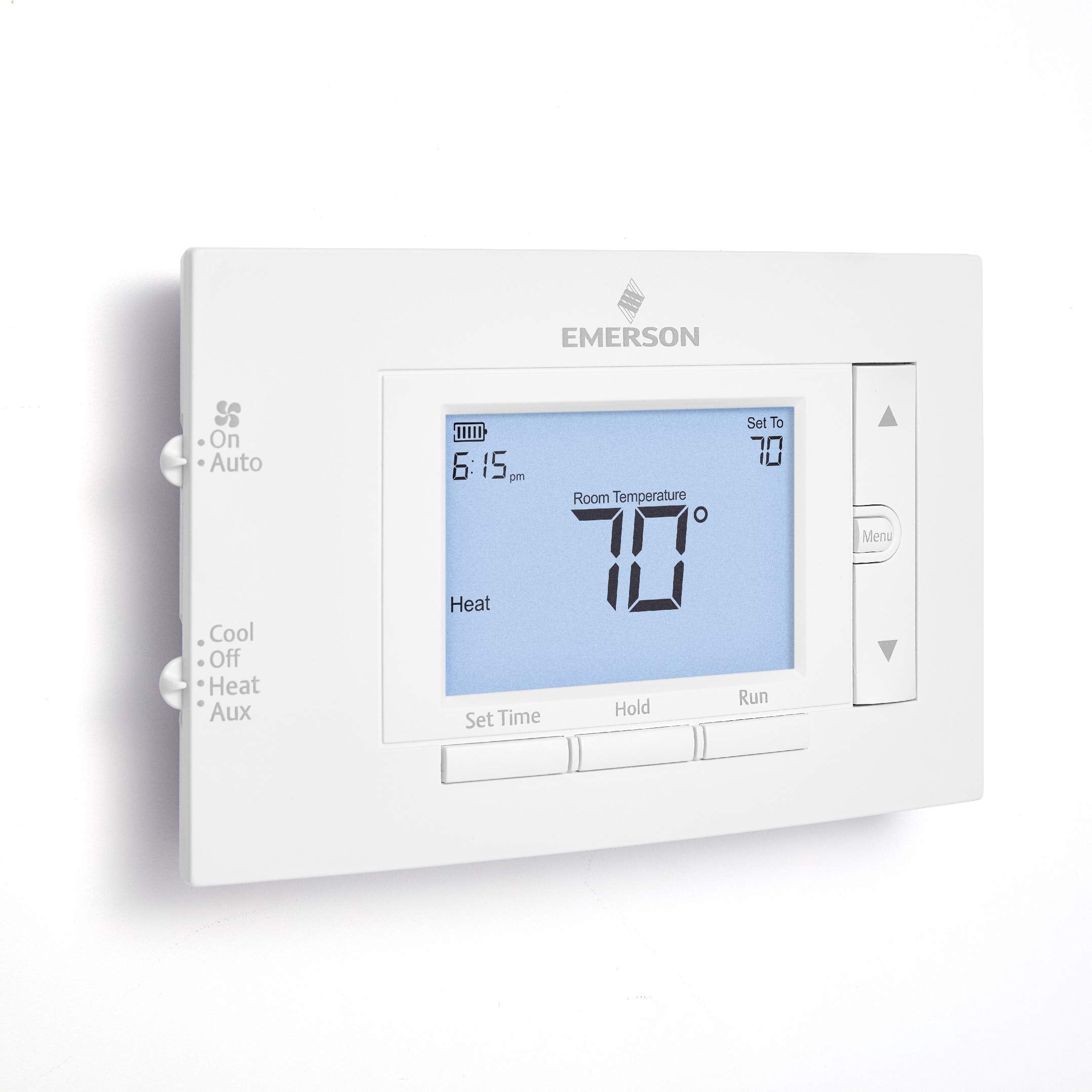

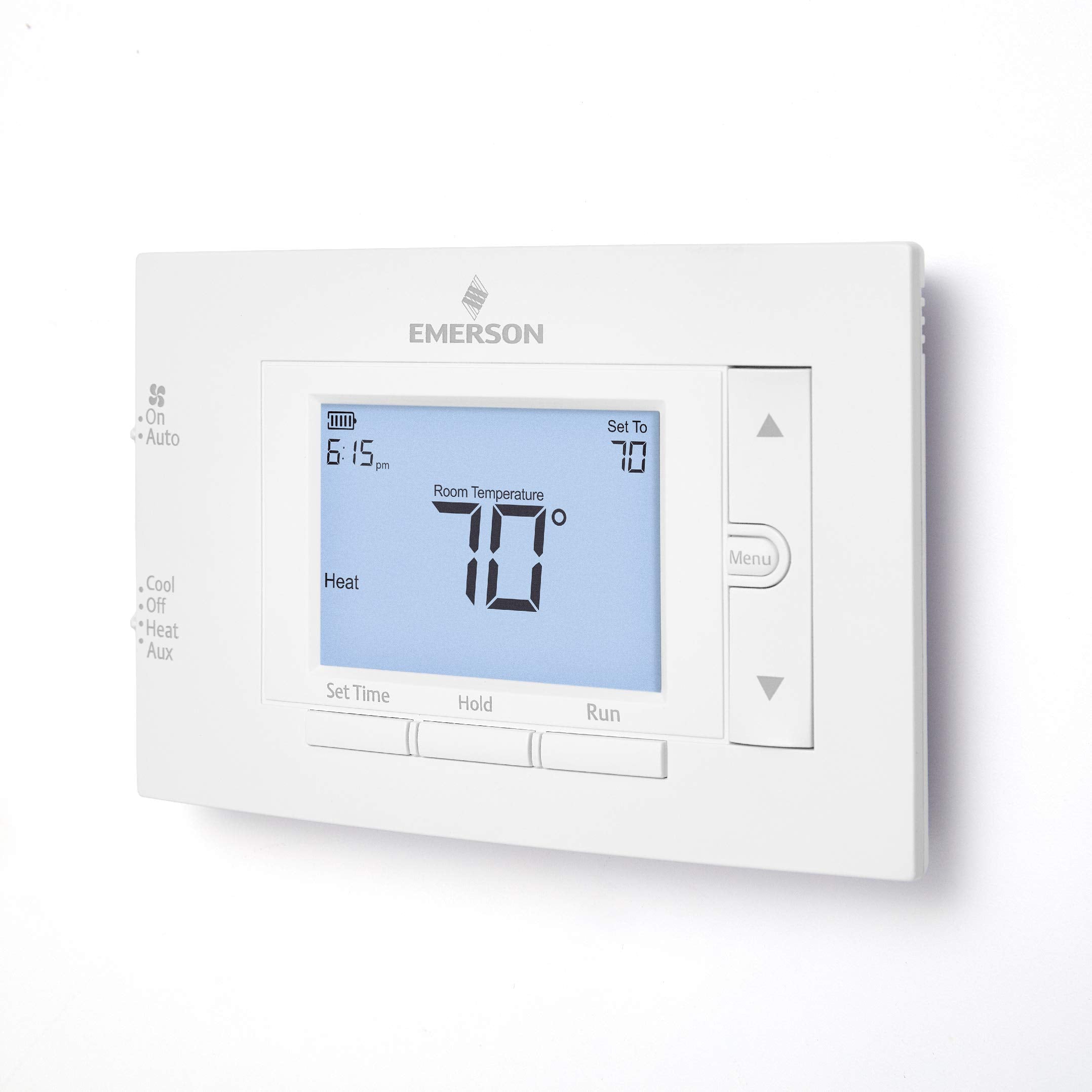

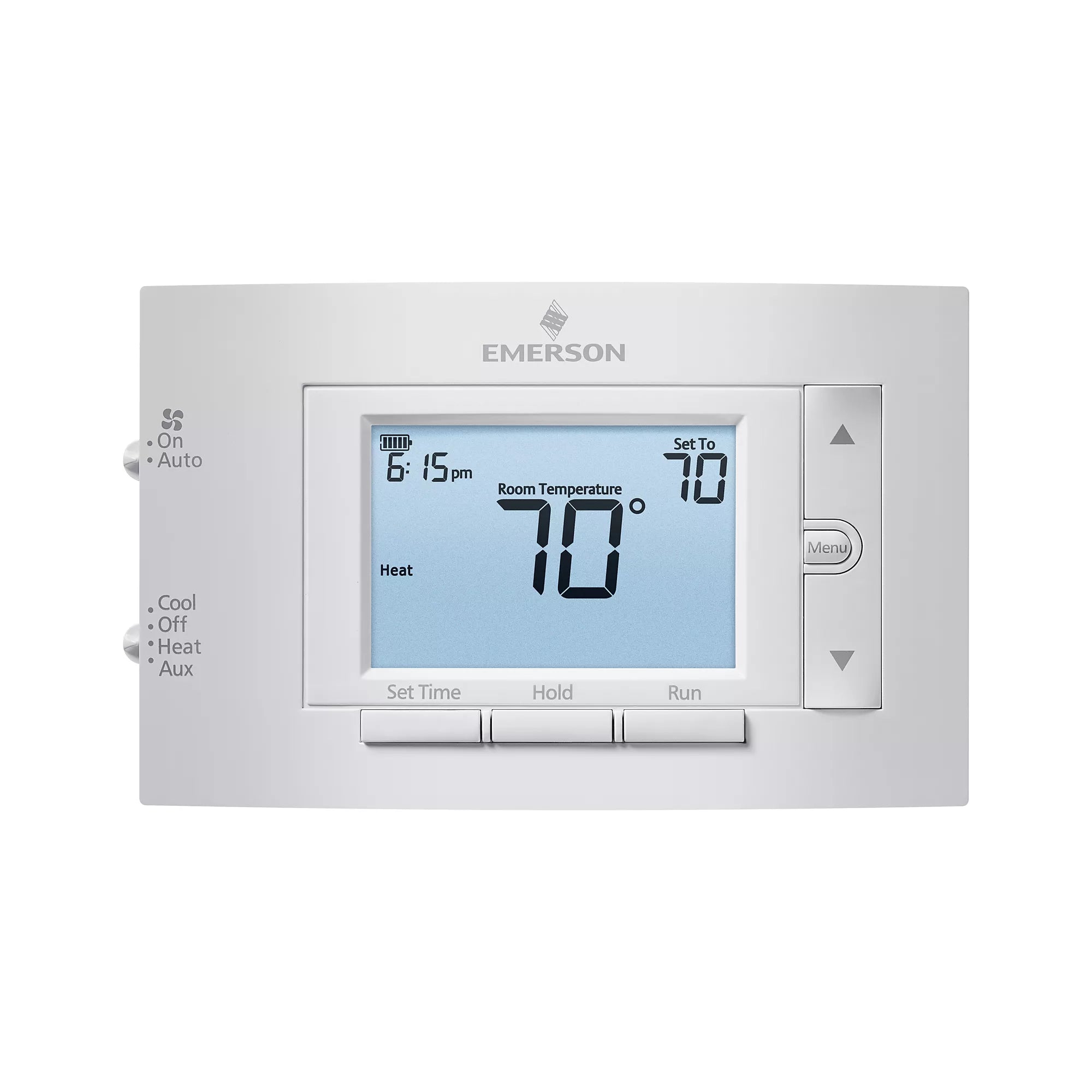

Emerson 1F83H-21PR 80 Series Heat Pump Programmable Digital Thermostat 2H/1C
$83.81
The Emerson 1F83H-21PR is an 80 Series heat pump programmable digital thermostat with a 4.5″ display and dual fuel option. It offers program choices of 7 day, 5+1+1 day, or non-programmable digital thermostat. The thermostat features a backlit display and operates on 24 Volts.
Description
Product Description
The Emerson 1F83H-21PR is an 80 Series heat pump programmable digital thermostat with a 4.5″ display and dual fuel option. It offers program choices of 7 day, 5+1+1 day, or non-programmable digital thermostat. The thermostat features a backlit display and operates on 24 Volts.
- 4.5″ Display
- Heat Pump (2H/1C) With Dual Fuel Option
- Program Choices: 7 Day, 5+1+1 Day Or Non-Programmable Digital Thermostat
Product Highlights
This digital thermostat is designed for heat pump systems, offering flexible programming and a clear display for easy temperature management.
Product Information
Standard Information
- Brand: EMERSON
- Manufacturer Part Number: 1F83H-21PR
- Country of Origin: Mexico
Technical Specifications
- 750mV Compatible: No
- Accuracy: ±1°F
- Ambient Temperature Range: 32°F to 105°F (0°C to 40.56°C)
- Auto Changeover: No
- Backlit: Yes
- Batteries Included: No
- Battery Backup: No
- Brand: Emerson
- Built In Wi-Fi: No
- Change/Check Reminders: Yes
- Daylight Savings Time Ready: No
- Digital-Non Programmable: No
- Digital-Programmable: Yes
- Display: Yes
- Displays Outdoor Temperature: No
- Display Options: Backlit; Digital; LCD
- Display Size: 3.2 in.
- Dual Transformer Compatible: Yes
- Electrical Connection Type: Hardwired
- Electrical Rating: 20-30 VAC, NEC Class II 50/60Hz
- Energy Star Rated: No
- Fan Switching: Yes
- Heat Pump Compatible: Yes
- Height: 4.25
- Humidification: Yes
- Indoor Remote Sensor: No
- Language: English
- Length: 1.75
- Low Battery Indicator: Yes
- Mounting: Horizontal
- Package Height: 4.25
- Package Length: 1.75
- Package Weight: 0.75
- Package Width: 6.25
- Power Method: Battery, Hardwire
- Programmable Fan: No
- Prop 65: Yes
- Removable Interface: No
- Sensing Element: Yes
- Stages Cool: 1
- Stages Heat: 2
- Switch Action: Heat-Off-Cool-Aux
- System Switching: Yes
- Terminal Designations: R,C,W2,E,Y,O/B,G,L
- Touchscreen: No
- UOM: EA
- UPC: 786710551666
- Vacation Mode: No
- Voltage: 24 VAC
- Width: 6.25
- Works with Google Assistant: No
- Works with Rheem EcoNet: No
- Programming Capability: 5-1-1; 5-2; 7 Day
- Shape: Rectangle
- System Settings: Heat-Off-Cool
- Temperature Differential: 0.6° F; 1.2° F
- Temperature Readout: Yes
- Temperature Scale: Fahrenheit/Celsius
- Thermostat Type: Low Voltage
- Contact Rating: 20 to 30V AC
- Filter Change Reminder: Yes
- Frequency: 50 Hz; 60 Hz
- Housing Color: Gray
- Maximum Operating Humidity: 90 %
- Minimum Operating Humidity: 0 %
- Minimum Operating Temperature: 32 °F
- Maximum Operating Temperature: 105 °F
- Millivolt Compatible: Yes
- Requires C-Wire: Yes
- Sensor Location: Remote
- Smart Connectivity: No
- Temperature Limiting: Yes
- Temperature Sensitivity: +/-1°F
- Temporary Program Override: Yes
- Temporary Temperature Hold: Yes
- Mounting Location: Wall
- Stages Conventional: 0 H / 0 C
- Conventional: Stages Heat Pump
- Stages Heat Pump: 2 H / 1 C Heat Pump
- Stages Heating/Cooling: 0 H / 0 C Conventional ; 2 H / 1 C Heat Pump
- UNSPSC: 41112209
- Display Type: LCD, Backlit
- Control Range: 45 Degrees to 99 Degrees F
- Mounting Type: Horizontal
- Number of Zones: 1
- Application: Heat and Cool
- Changeover Type: Manual
- Compatible System Type: Electric Forced Air Furnaces; Gas Forced Air Furnaces; Hydronic Systems
- Control Type: Push Button
- Dehumidification Control: No
- Differential Type: Adjustable
- Digit Size: Easy Read
- Fan Settings: Auto-On
- Humidification Control: No
- Includes: Mounting Hardware
- Includes Positive Off: Yes
- Key Pad Lockout: Yes
- Mounting Direction: Horizontal
- Minimum Control Temperature: 45 °F
- Maximum Control Temperature: 99 °F
- Number of Cooling Stages – Conventional System: 0
- Number of Heating Stages – Conventional System: 0
- Number of Cooling Stages – Heat Pump System: 1
- Number of Heating Stages – Heat Pump System: 2
- Temperature settings per day: 0; 4
- Backlit Screen: Yes
- Backlit Screen Color: Gray
- Backlit Type: Touch Activated or Continuous with Common Wire
- Battery: Yes
- Differential Cool: 0.9 °F; 1.2 °F; 1.7 °F
- Differential Heat: 0.5 °F; 0.75 °F; 1.9 °F
- Model Name: 80 Series
- Controller Type: Hand Control
- Special Feature: Lockable, Low Battery Indicator, Low Voltage, Programmable, Temperature Display
- Specific Uses For Product: Heat Pump
- Temperature Control Type: Digital

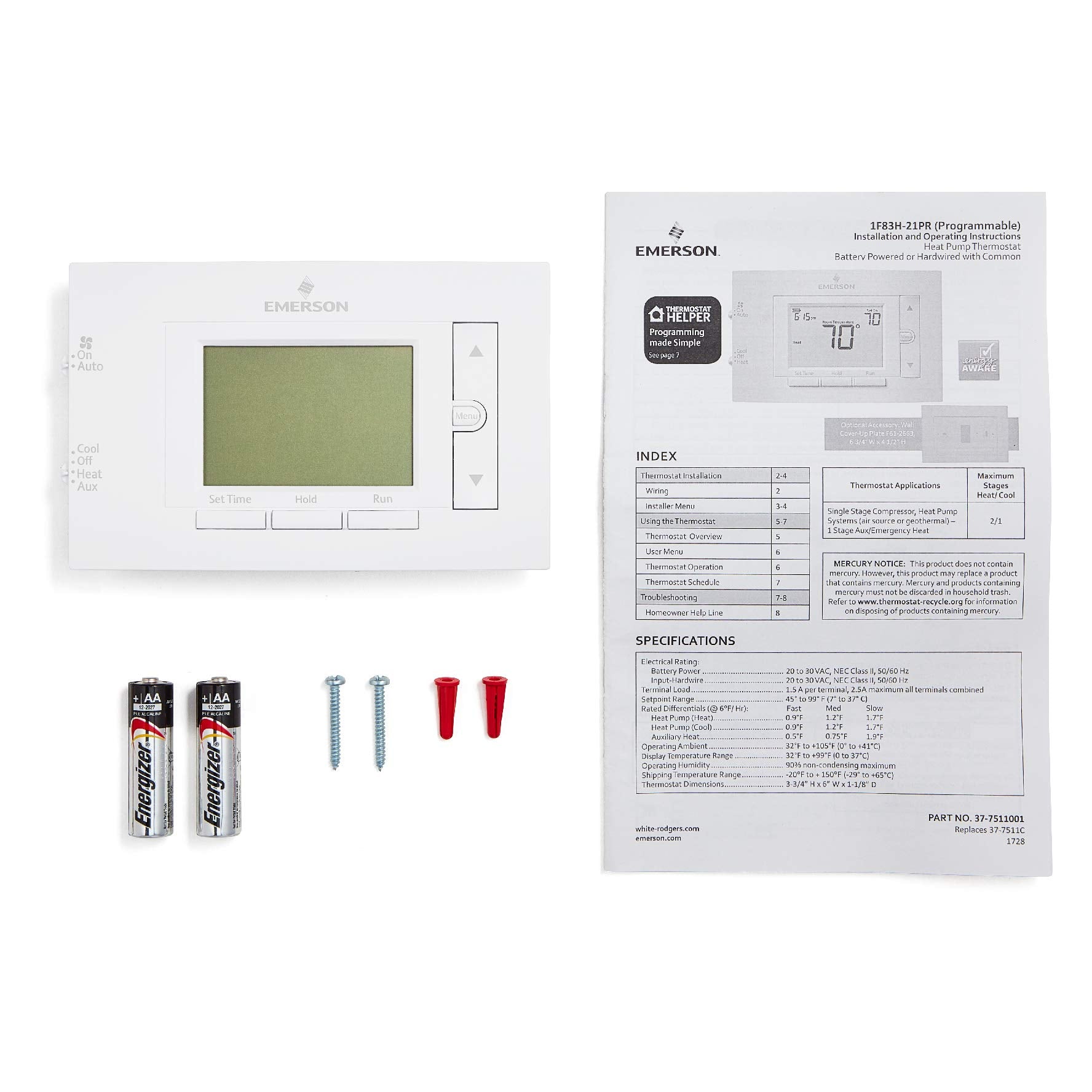

- Included Components: 2 AA Batteries, Thermostat, User Manual
- Style: Digital
- Number of Batteries: 2 AA batteries required. (included)
- Stages: Multi
- Temperature: 45°F (7°) Min, 99°F (37°C) Max
- Warranty: 5 years, Limited
Shipping and Delivery
SHIPPING & DELIVERY
We ship HVAC equipment nationwide via freight carriers and standard parcel services. All orders over $500 qualify for FREE shipping. Heavy equipment (condensers, air handlers, packaged units) ships via LTL freight with liftgate service included.
DELIVERY DETAILS
- Standard shipping: 5-10 business days for in-stock items
- Freight/LTL delivery: 7-14 business days for heavy equipment
- Expedited shipping available for an additional fee
- Curbside delivery included; inside delivery available upon request
All HVAC equipment is professionally packaged in factory crating to ensure safe transit. Units are inspected before shipping and insured against damage. Please inspect your delivery upon arrival and note any damage on the carrier's bill of lading.
Related products
Honeywell Residential TB7100A1000 24v Multipro 7000 7 Day Programmable Thermostat
The HONEYWELL RESIDENTIAL TB7100A1000 is a 24v Multipro 7000, a 7-day programmable thermostat designed for conventional heat pump and fan coil systems. It provides temperature control for gas, oil, electric, heat pumps, PTACs, and fan-coil equipment. The thermostat is easy to program and provides precise comfort with universal system compatibility.
Honeywell Residential TH106 Line Volt Thermostat for Electric Heating 4000W
The Honeywell Residential TH106 is a versatile programmable thermostat designed for electric heating applications. It simplifies temperature control, ensuring comfort and energy efficiency. Compatible with 120/240V electrical systems, this thermostat features a simple user interface and advanced features.
Honeywell T775B2040 Electronic Temperature Controller 4 SPDT 2 Floating Outputs
The Honeywell T775B2040 Electronic Remote Temperature Controller is equipped with four SPDT relays and two floating outputs, designed for precise temperature management in commercial and agricultural environments. This model includes one sensor and supports two sensor inputs. Remote temperature sensing capability
Intuitive graphical interface with large display
Energy-saving features through time clock scheduler and digital input
Product Highlights
This controller simplifies installation processes with its user-friendly interface and is ideal for both heating and cooling applications.

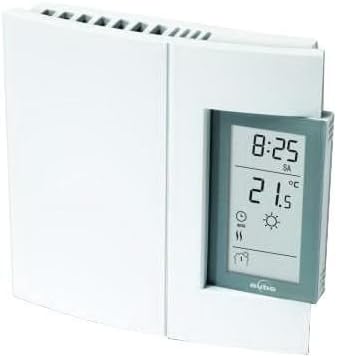

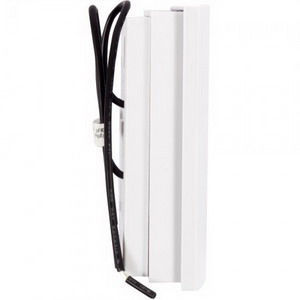

Honeywell TH106 AUBE TH106 TIMER 4000W 2
