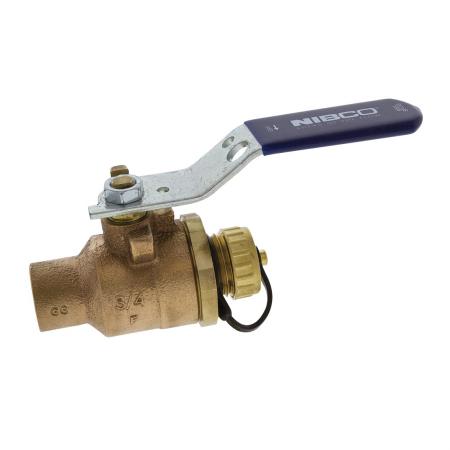

NIBC NJ838H8 S-585-70-66-HC 3/4 in. DZR Bronze Full Port Solder x Hose 600# Ball Valve
$115.20
The NIBCO NJ838H8 is a three-fourths inch DZR bronze full port solder x hose ball valve. It supports a maximum temperature rating of four hundred degrees Fahrenheit. This valve has a pressure rating of six hundred psi and is designed for water applications.
Product Description
The NIBCO NJ838H8 is a three-fourths inch DZR bronze full port solder x hose ball valve. It supports a maximum temperature rating of four hundred degrees Fahrenheit. This valve has a pressure rating of six hundred psi and is designed for water applications. Its construction includes a stainless steel ball and a bronze body, ensuring durability and resistance to dezincification.
- Maximum temperature of four hundred degrees Fahrenheit
- Full port design for minimal flow resistance
- Stainless steel ball and brass stem for long service life
Product Highlights
The NIBCO NJ838H8 is suitable for commercial and light industrial applications, providing reliable garden hose connections for drainage.
Product Information
Standard Information
- Manufacturer: NIBCO INC
- Part Number: NJ838H8
Technical Specifications
- Type: 2-Piece
- Media: Water
- Nominal Size: 3/4 inch
- Orifice Size: 3/4 inch
- End Style: Solder x Hose
- Pressure Rating: 600 psi
- Temperature Rating: 400 degrees Fahrenheit
- Inlet to Outlet Length: 3.47 inches
- Top to Inlet Center: 2-1/4 inches
- Actuator Type: Locking Lever Handle
- Body Material: Bronze
- Ball Material: Stainless Steel
- Trim Material: 316 Stainless Steel Stem
- Softgoods Material: PTFE
| Weight | 6.16 lbs |
|---|---|
| Brand | NIBCO |
