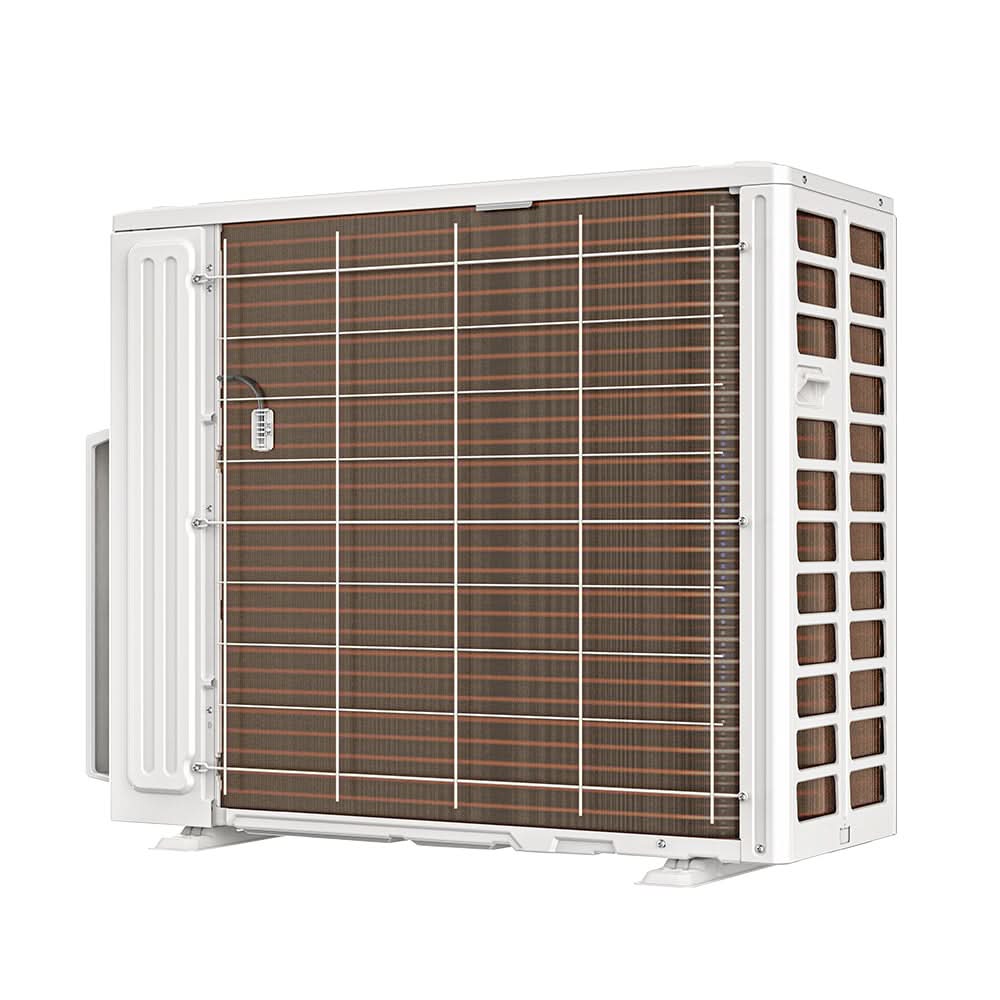

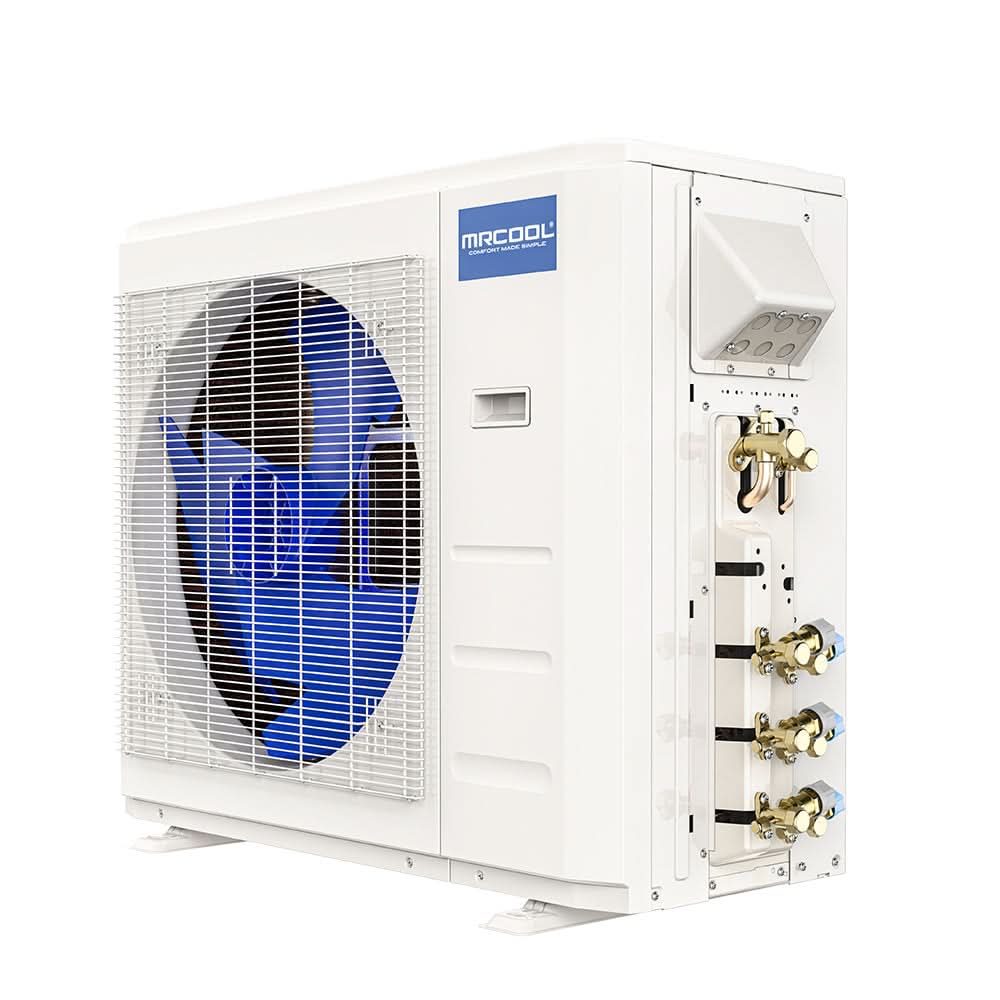

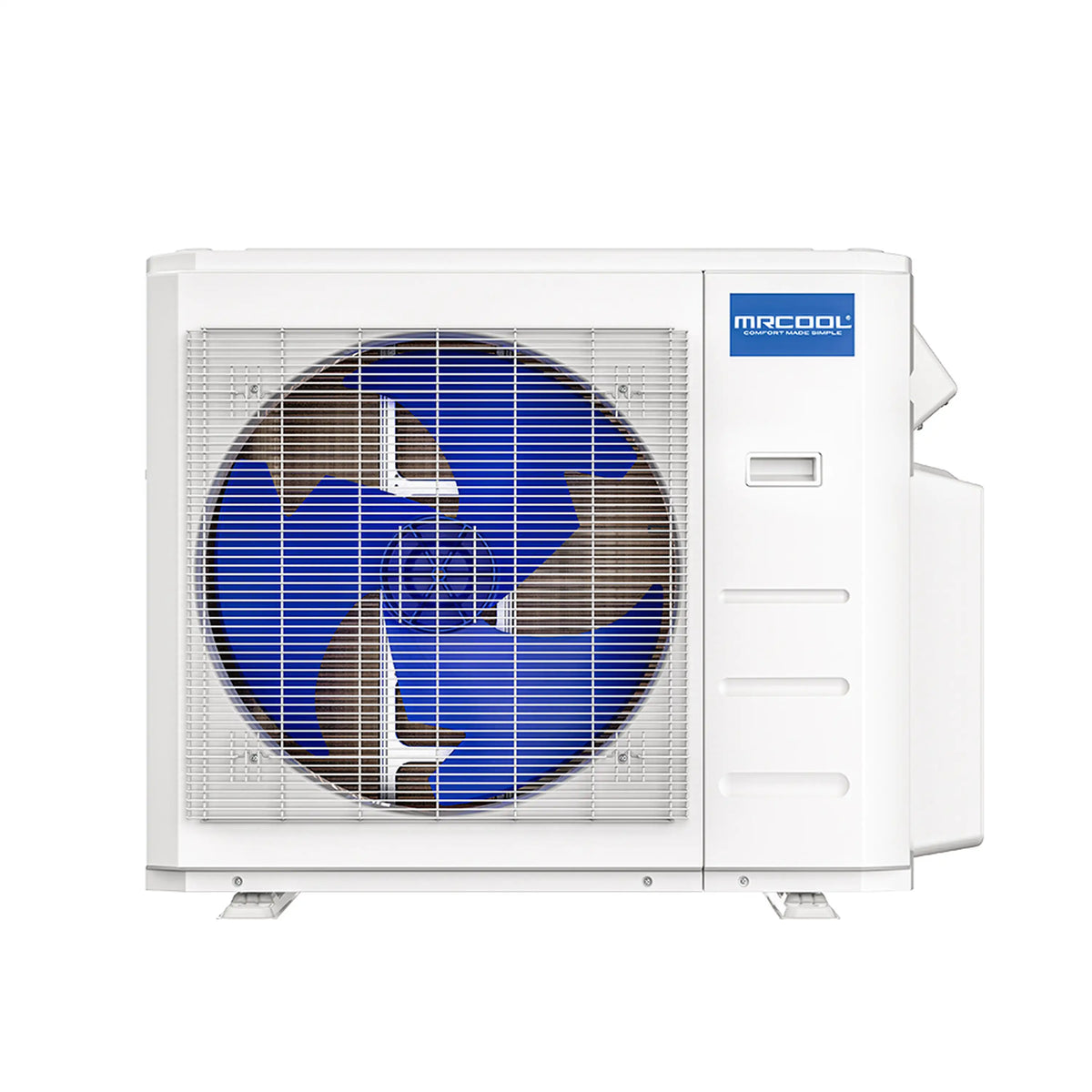

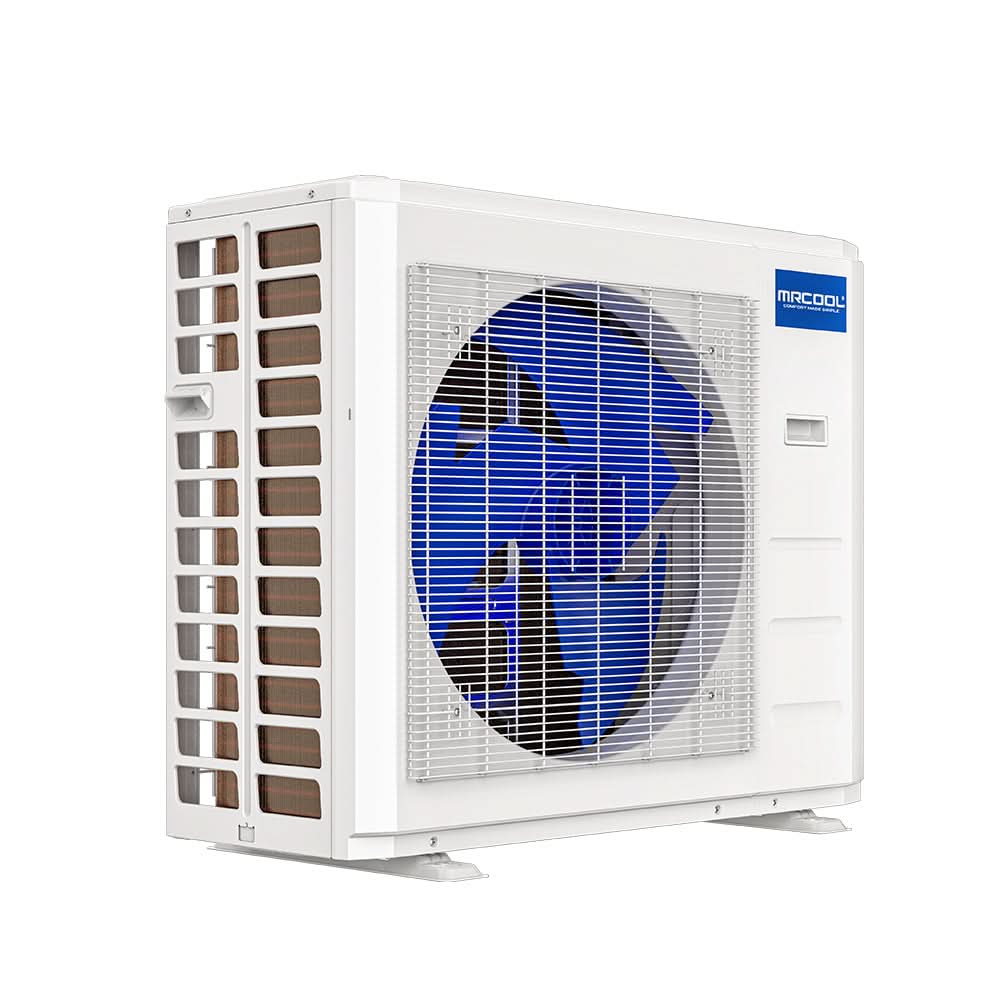

Mrcool DIY-MULTI5-36HP230D-O 36k BTU 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v

Product Description

The MRCOOL DIY-MULTI5-36HP230D-O 36k BTU Multi-Zone Mini-Split Condenser is engineered for DIY installation, supporting up to five zones. This system provides customizable comfort and efficient performance year-round. It requires at least two connected air handlers and is pre-charged with R-454B refrigerant. Ideal for heating and cooling multiple rooms, offering control and cost savings.

• DIY Installation: Quick Connect pre-charged line sets make setup fast and tool-free.
• Smart Control: WiFi-enabled and compatible with SmartHVAC App, Amazon Alexa, and Google Assistant.
• R-454B Refrigerant: Environmentally friendly and compliant with new EPA regulations.

Product Highlights

This MRCOOL mini-split condenser offers easy DIY installation, smart control, and eco-friendly refrigerant for efficient, customizable comfort.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: DIY-MULTI5-36HP230D-O

Technical Specifications

• Model Number: DIY-MULTI5-36HP230D-O
• Cooling Capacity: 36,000 BTU/h
• Heating Capacity: 36,000 BTU
• Recommended Coverage Area: Up to 1,550 sq. ft.
• SEER2: 18.0
• EER2: 8.5
• HSPF2-4: 8.5
• HSPF2-5: 6.5
• Power Supply: 208–230V, 60Hz, 1 Phase
• Minimum Circuit Ampacity: 33 A
• Maximum Fuse: 35 A
• Refrigerant Type: R-454B
• Refrigerant Charge: 109.70 oz
• Line Set Sizes: 3/8″ Liquid x 5/8″ Gas
• Net Dimensions (WxDxH): 37.24″ x 16.14″ x 31.89″
• Net Weight: 152.12 lbs
• Recommended Wire Size: 8 AWG (for 33A load)
• Voltage: 208/230/1/60
• Nominal Tons: 3 Ton
• Liquid Line: 1/4″
• Suction Line: 1/2″
• Outdoor Noise Level: 64 dB(A)
• Outdoor Operating Temperature Cooling: -13°F to 122°F
• Outdoor Operating Temperature Heating: -13°F to 75°F
• Phase: 1
• Cycle: 60 Hz
• Max Line Set Length: 221.4 ft.
• Inverter: DC
• Compressor Type: Rotary
• Fan Only Option: Yes
• Quiet Mode: Yes
• Auto Cool: Yes
• Wifi Compatibility: Yes
• App Compatibility: Yes
• Works with IOS: Yes
• Works with Android: Yes
• Certifications: Energy Star Certified, UL Listed, ETL Listed, AHRI Certified
• Warranty: 7 Years Compressor
  5 Years Parts
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF2): 9.9
• Line Set Connection Type: Quick Connect
• Primary Heating Capacity: 35,001 – 40,000 BTU
• Series: DIY
• System Application Type: Ductless Split Systems
• Region Compatibility: Nationwide
