MRCOOL DIY Multi-Zone 27000 BTU 5th Gen Mini Split Heat Pump System R454B 23 SEER2 (9k+12k+12k)

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for multiple zones in your home or office. Featuring the MRCOOL DIY-MULTI4-27HP230D-O 27k BTU Multi-Zone Mini-Split Condenser, this system supports up to four zones, making it perfect for spaces ranging from 1,000 to 1,200 square feet. Complementing this condenser are two ductless mini-split air handlers: the MRCOOL DIY-09-HP-WMAH-230D25-O 9k BTU model for smaller areas up to 400 square feet and the MRCOOL DIY-12-HP-WMAH-230D25-O 12k BTU model for spaces up to 550 square feet. Together, these components create a versatile and efficient climate control system that can be tailored to your specific needs.

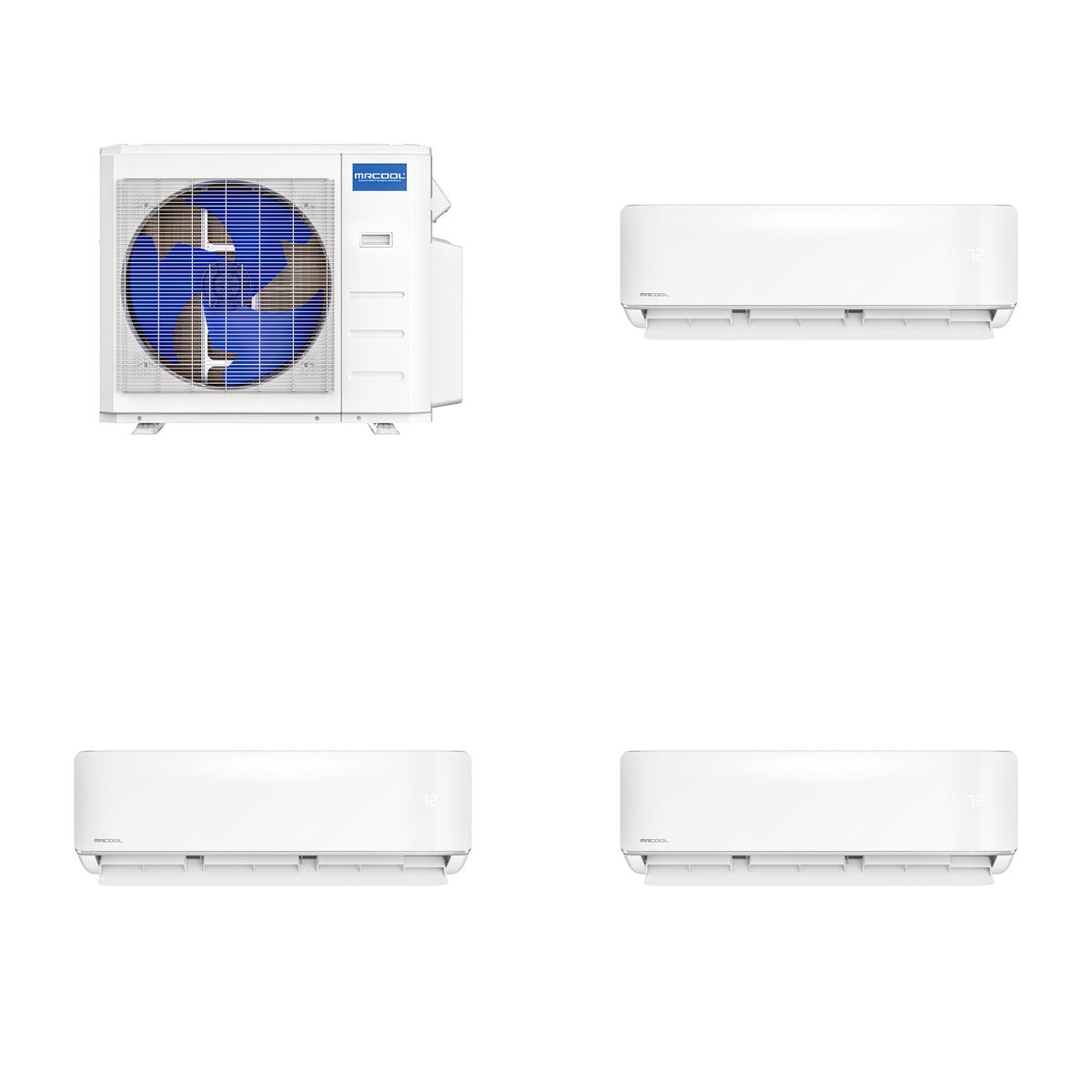

What’s Included

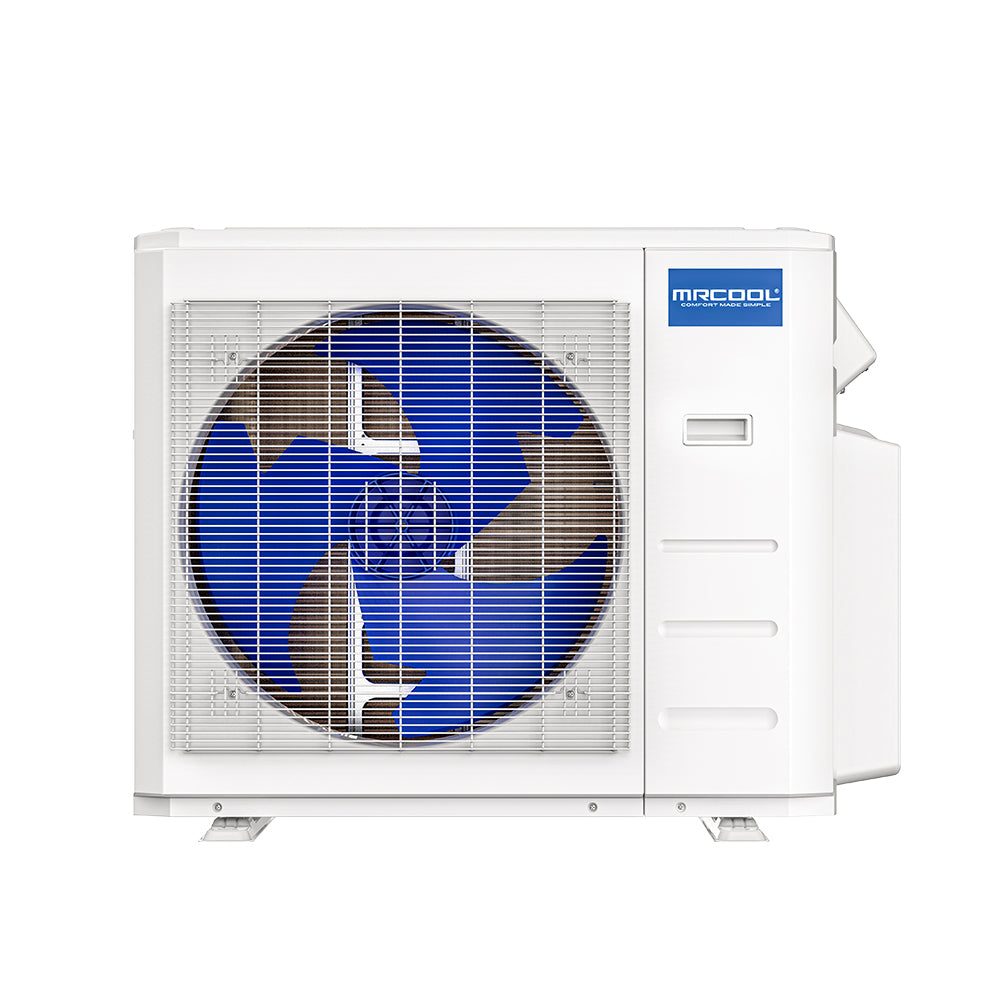

• MRCOOL DIY-MULTI4-27HP230D-O – 27k BTU 4 Zone Mini-Split Condenser (Qty x1)

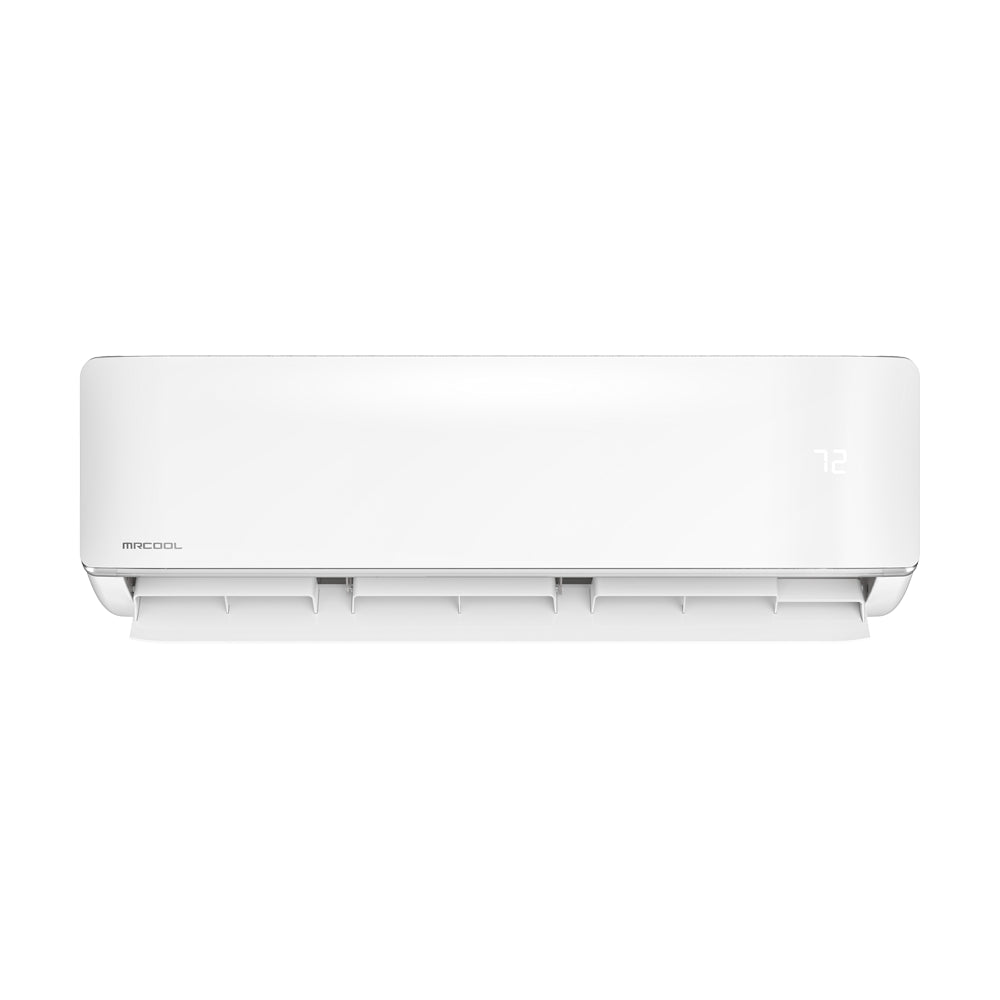

• MRCOOL DIY-09-HP-WMAH-230D25-O – 9k BTU Ductless Mini-Split Air Handler (Qty x1)
• MRCOOL DIY-12-HP-WMAH-230D25-O – 12k DIY Air Handler 230v (Qty x2)

Key Details

• Weight of Bundle: 256.2 lb (MRCOOL 151.0 lb + MRCOOL 35.0 lb + MRCOOL 70.1 lb)
• Cooling Capacity: 27,000 BTU (Condenser), 9,000 BTU (Air Handler), 12,000 BTU (Air Handler)
• Heating Capacity: 27,000 BTU (Condenser), 9,000 BTU (Air Handler), 12,000 BTU (Air Handler)
• SEER2 Rating: 23
• HSPF2 Rating: 9.5
• Refrigerant Type: R-454B
• Voltage: 230V
• Dimensions (Condenser): 19.69 x 34.84 x 42.91 inches
• Dimensions (Air Handlers): 16.34 x 14.37 x 36.02 inches
• Weight: 151.02 lbs (Condenser), 35.05 lbs (Air Handlers)

Use & Compatibility

This bundle is ideal for residential and light commercial applications, providing efficient heating and cooling across multiple zones. The MRCOOL systems are compatible with standard 230V electrical systems and can be easily controlled via wireless remotes or smart devices, making them perfect for modern living.
