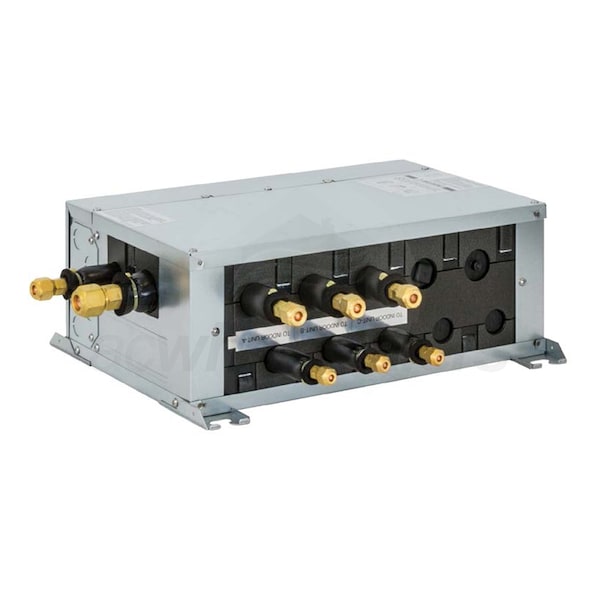

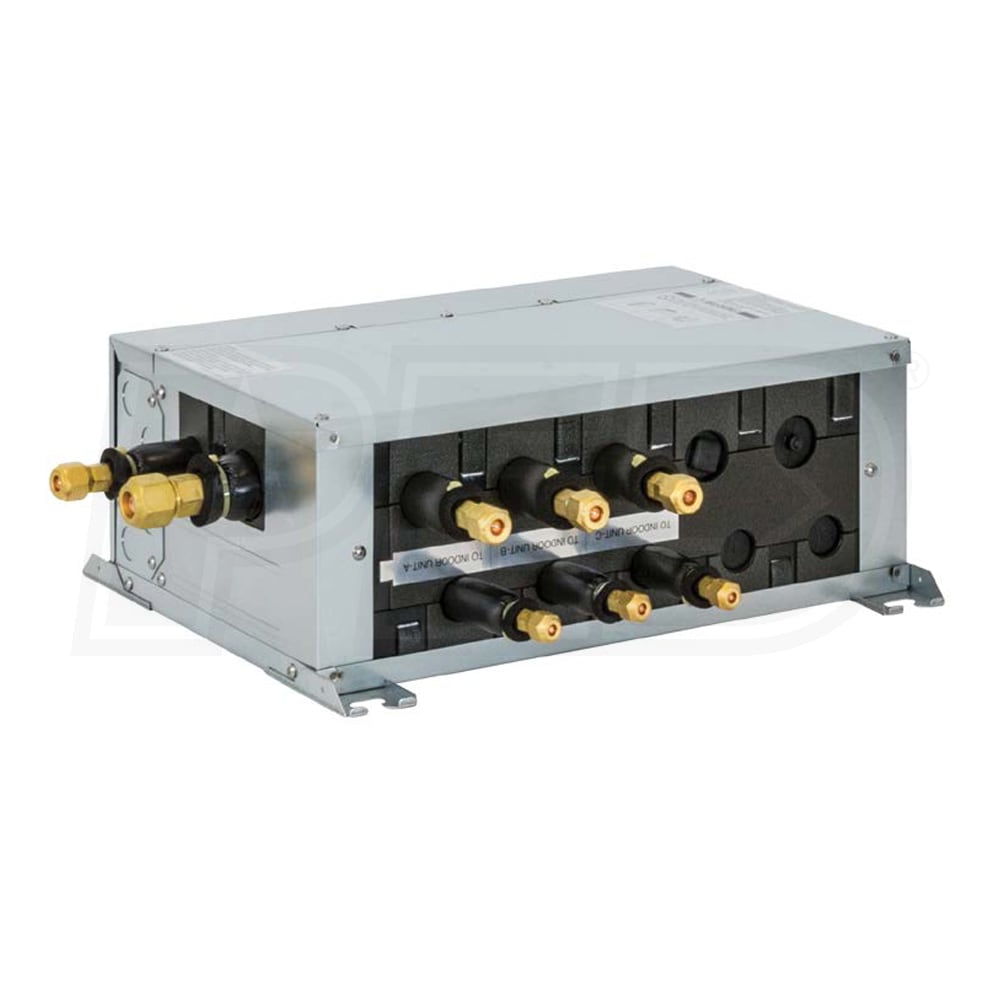

Mitsubishi Electric TAC-MKA32BC Multi-Zone Branch Box
$384.64
The Mitsubishi Electric TAC-MKA32BC is a branch box for multi-zone mini-split systems. It works with Mitsubishi MXZ-C series outdoor condensers. The unit manages refrigerant and power flow to connected indoor units.
Product Description
The Mitsubishi Electric TAC-MKA32BC is a branch box for multi-zone mini-split systems. It works with Mitsubishi MXZ-C series outdoor condensers. The unit manages refrigerant and power flow to connected indoor units.
- Manages refrigerant and power flow to indoor units.
- Features electronic LEVs for optimal refrigerant flow and coil temperature.
- Allows connection of up to three indoor units.
Product Highlights
This branch box enhances performance by ensuring efficient refrigerant distribution, making it an essential component for multi-zone applications.
Product Information
Standard Information
- Brand: Mitsubishi Electric
- MPN: TAC-MKA32BC
Technical Specifications
- Ports Quantity: 3
- Power Supply: Single phase, 208/230 V, 60 Hz
- Input: 0.003 kW
- Running Current: 0.05 A
- External Finish: Galvanized steel
- Width: 21.3125 inches
- Depth: 16.34375 inches
- Height: 6.6875 inches
- Gas Connection Size: 5/8 inch
- Suction Connection Size: 3/8 inch
- Line Set A Liquid Connection: 1/4 inch
- Line Set A Gas Connection: 3/8 inch
- Line Set B Liquid Connection: 1/4 inch
- Line Set B Gas Connection: 3/8 inch
- Line Set C Liquid Connection: 1/4 inch
- Line Set C Gas Connection: 3/8 inch
| Weight | 21.00 lbs |
|---|---|
| Brand | MITSUBISHI ELECTRIC |
