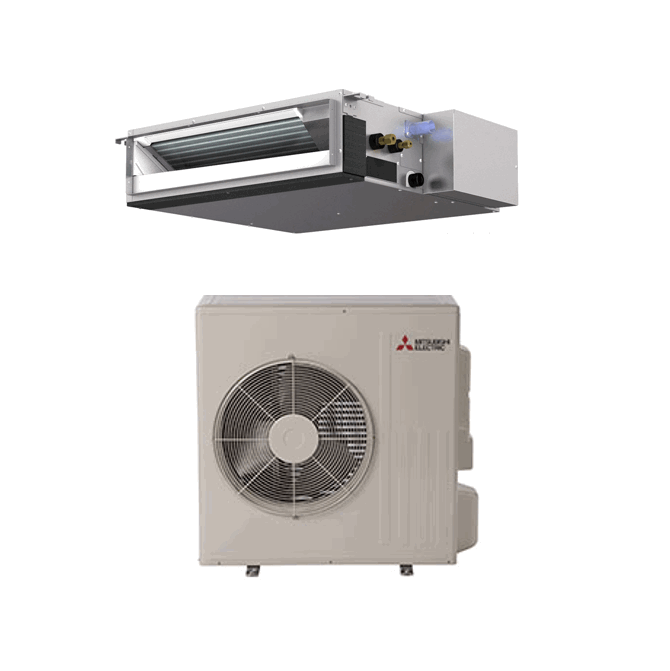

Mitsubishi Electric PUY-A42NKA7|PEAD-A42AA7 42k BTU Cooling Only P-Series Concealed Duct Air Conditioning System
$3,380.98
The Mitsubishi Electric PUY-A42NKA7|PEAD-A42AA7 is a 42k BTU cooling only P-Series concealed duct air conditioning system. Compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units, the rugged outdoor unit is assembled and test-run at the factory. It utilizes short duct runs, allowing for the conditioning of adjacent spaces with little visual impact.
Product Description
The Mitsubishi Electric PUY-A42NKA7|PEAD-A42AA7 is a 42k BTU cooling only P-Series concealed duct air conditioning system. Compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units, the rugged outdoor unit is assembled and test-run at the factory. It utilizes short duct runs, allowing for the conditioning of adjacent spaces with little visual impact.
- Compatible with a wide range of Mitsubishi Ductless Mini Split P-Series indoor units
- Rugged outdoor unit is completely assembled and test-run at the factory prior to shipment
- Heavy-duty, commercial-grade cabinet is constructed of galvanized steel plate
- Built-in condensate lift mechanism
- Adjustable static pressure
- Multiple fan speeds
Product Highlights
This Mitsubishi Electric air conditioning system offers precise temperature control, dehumidification, and a condensate removal system for efficient and reliable operation.
Product Information
Standard Information
- Brand: MITSUBISHI ELECTRIC
- Manufacturer Part Number: PUY-A42NKA7|PEAD-A42AA7
Technical Specifications
- Condition: New
- Product Category: Mini Split Cooling Only System
- Type: Concealed Duct
- Product Line: P-Series
- Operating Mode: Cooling Only
- Maximum Number of Zones: 1
- Multi-Zone Compatible: No
- Refrigerant Type: R-410A
- Cooling BTU: 42000
- Cooling Capacity: 42000 BTU
- Moisture Removal: 4.1 Pints/Hour
- Maximum Air Flow: 1483 CFM
- Minimum Air Flow: 1042 CFM
- Minimum Sound Level: 36 dB
- Maximum Sound Level: 44 dB
- Gas Connection Size: 5/8 Inch
- Liquid Connection Size: 3/8 Inch
- ETL Listed: Yes
- Unit Type: 3.5 Ton Inverter Condenser
- Low Ambient Heat: NO
- Unit Size: 42,000 BTU

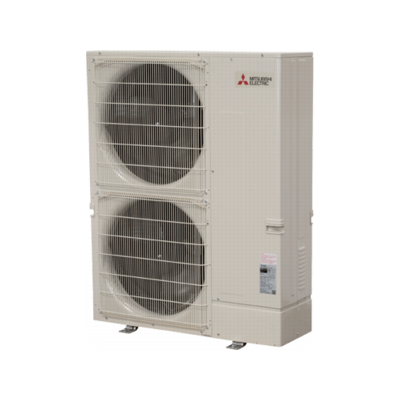

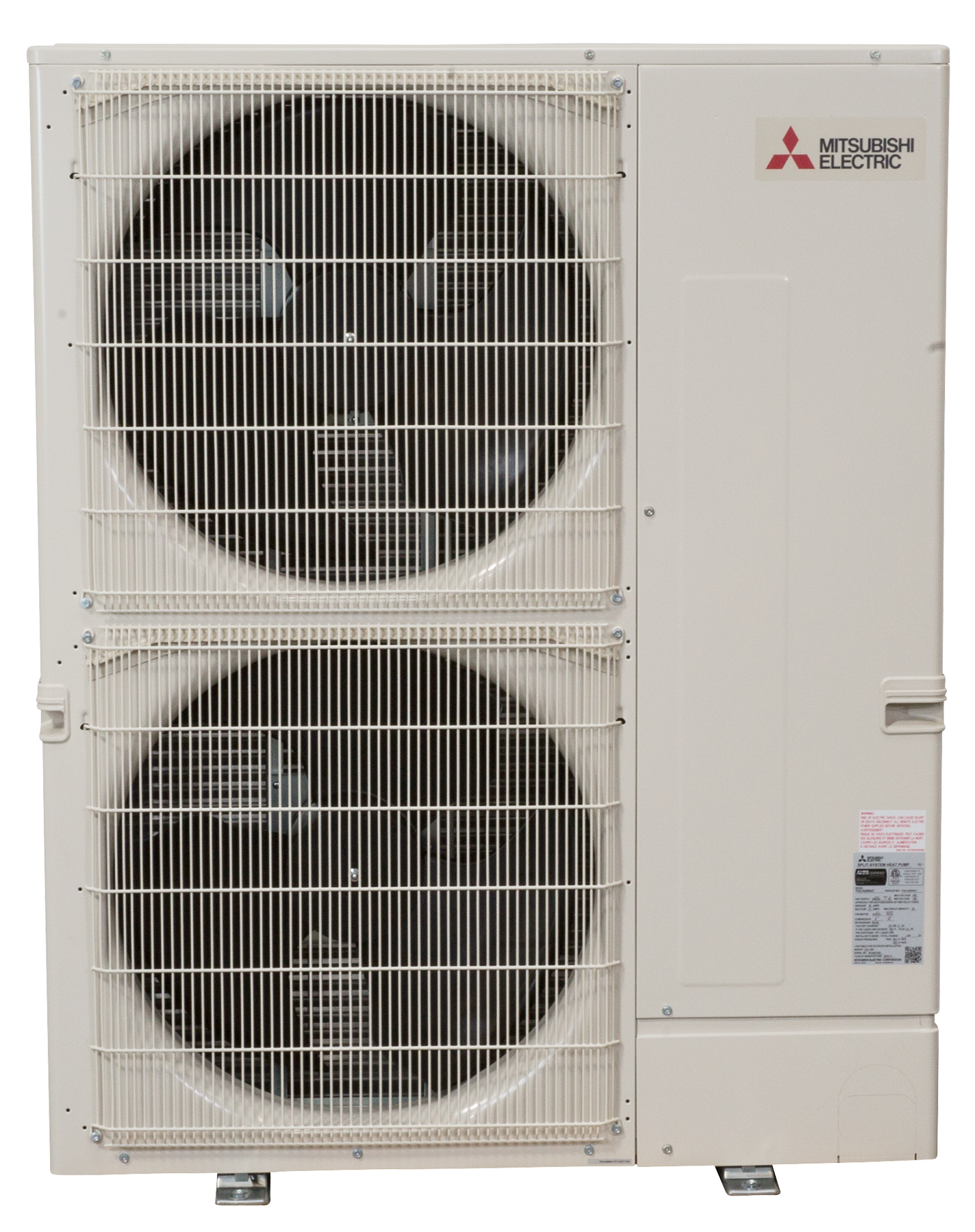

- Outdoor Unit: PUY-A42NKA7
- SEER: 14-21 (depends on the indoor unit)
- EER: 9-11 (depends on the indoor unit)
- Cooling Minimum Temp: -40 F (with wind baffle)
- Room Cooling/Heating Capacity: up to 2,500 sq ft
- Application: Cooling Only
- Electrical: 208/230, 1 Ph, 60Hz
- Suction Line: 3/8″
- Usage: Cooling Only
- Voltage: 208/230 Volts
- Phase: 1
- Frequency: 60 Hz
- Minimum Circuit Ampacity: 25 Amps
- Recommended Breaker Size: 30 Amps
- Maximum Line Length: 225 Feet
- Parts Warranty: 5 Years
- Compressor Warranty: 7 Years
| Weight | 272.00 lbs |
|---|---|
| Brand | MITSUBISHI ELECTRIC |
| BTU | 42,000 BTU |
| SEER | 14-21 (depends on the indoor unit) |
| Voltage | 208/230 Volts |
| Refrigerant | R-410A |
