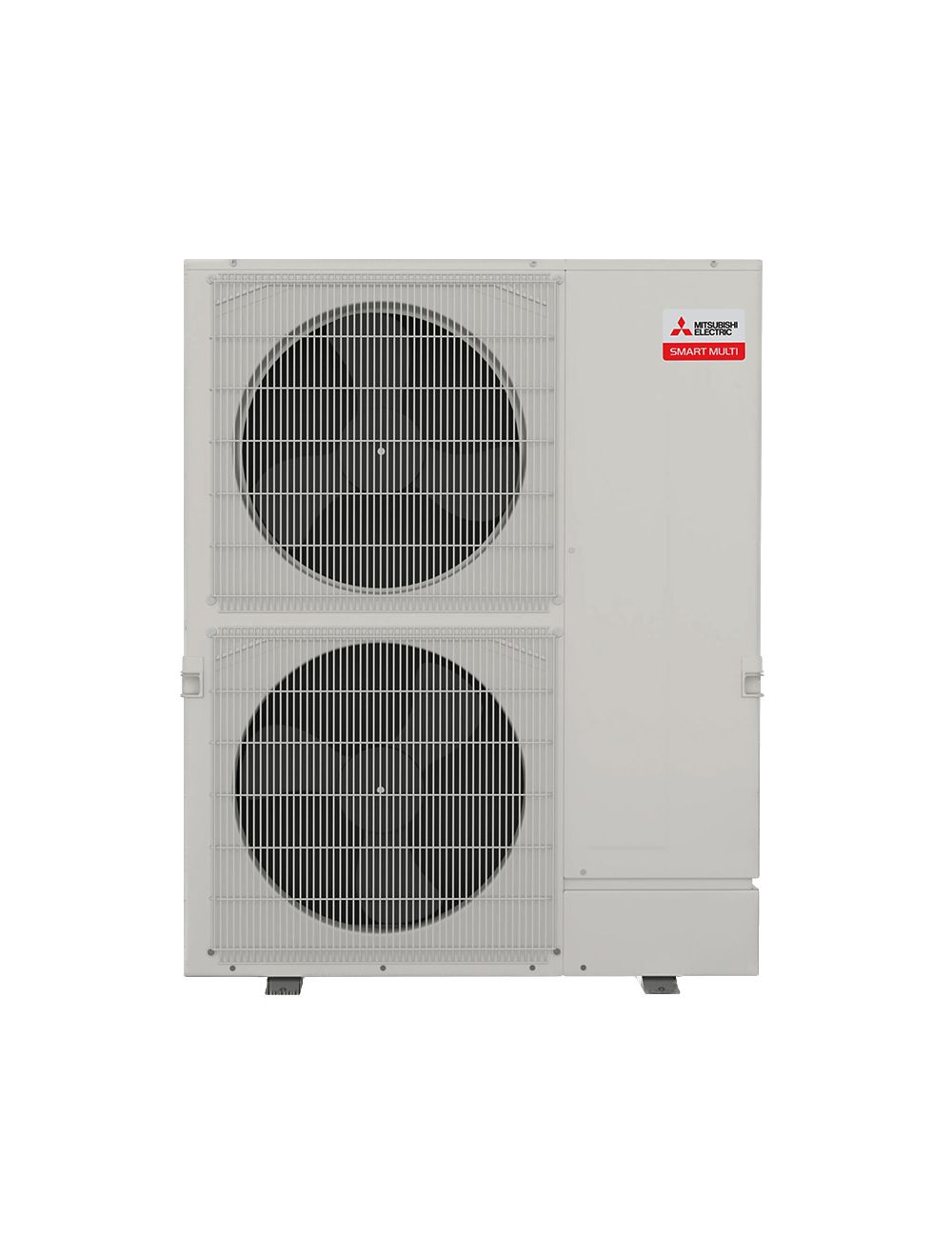

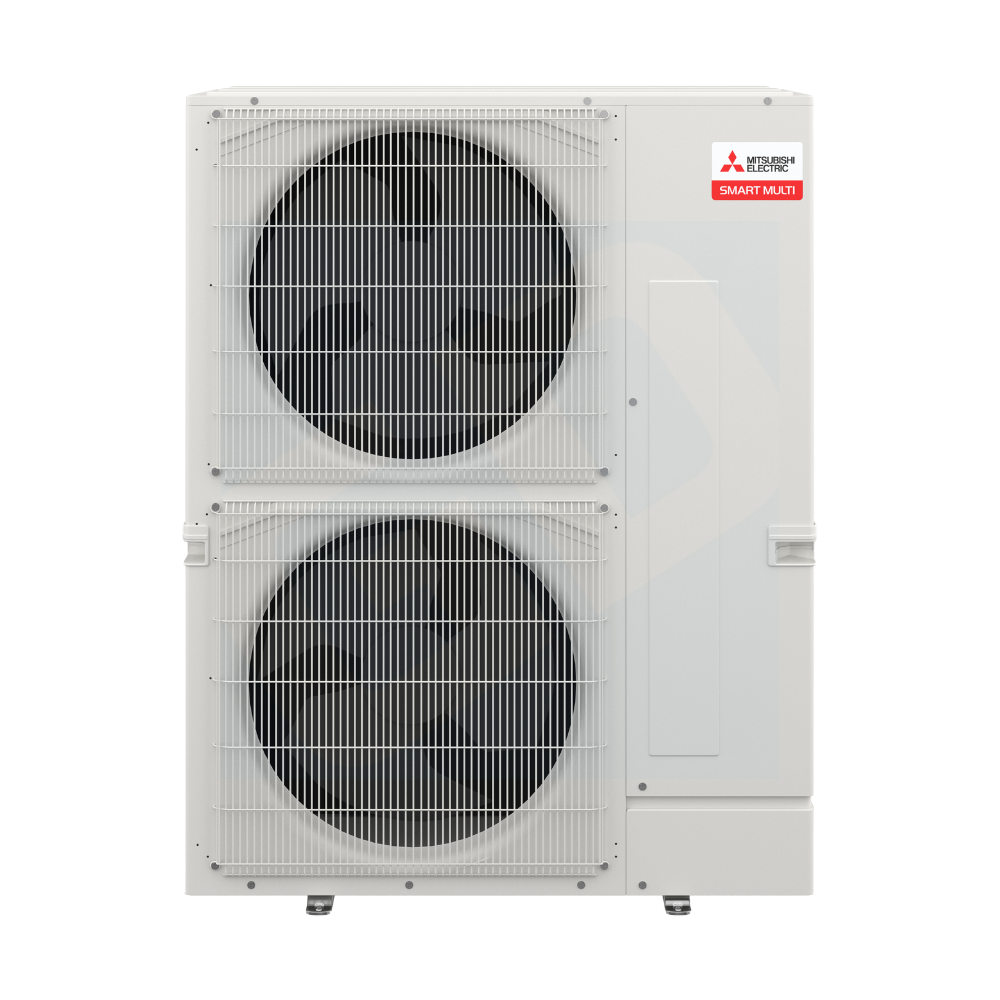

Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit

Product Description

The Mitsubishi Electric MXZ-SM48NL is an outdoor heat pump unit optimized for multi-zone mini-split systems. This model supports M-, P-Series, and City Multi indoor units. It connects to up to eight zones with M&P-Series units or up to twelve zones with City Multi units. It uses R454B refrigerant making it suitable for both residential and commercial use while offering both cooling and heating capabilities.

• Compatible with multiple indoor unit series.
• Inverter-driven compressor for efficient operation.
• Seacoast protection on heat exchanger and base panel.

Product Highlights

Efficient performance for diverse applications with varied configurations. Ideal for areas requiring multi-zone systems.

Product Information

Standard Information

• Model Number: MXZ-SM48NL
• Unit Size: 48,000 BTU

Technical Specifications

• Operating Mode: Cooling & Heating
• Refrigerant Type: R454B
• Number of Zones: 8 (with branch box) or 12 (without branch box)
• Cooling Maximum Capacity Btu/h: 42,000
• Heating Maximum Capacity Btu/h: 48,000
• SEER2: 21.50 / 19.50 / 17.50
• EER2: 13.40 / 11.90 / 10.40
• HSPF2: 11.10 / 10.55 / 10
• Heating Minimum Temp: -24°F
• Cooling Minimum Temp: 5°F (with wind baffles installed)
• Room Cooling/Heating Capacity: Up to 2000 sq ft
• Dimensions: 41-11/32 W x 13 D x 52-11/16 H
