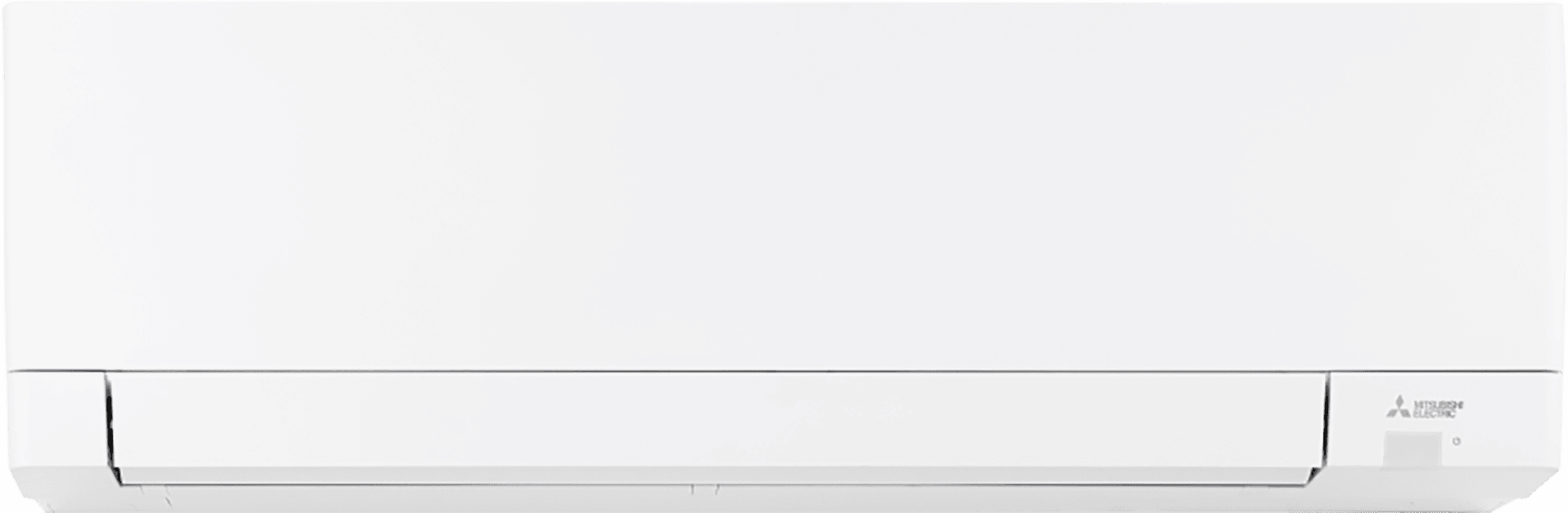

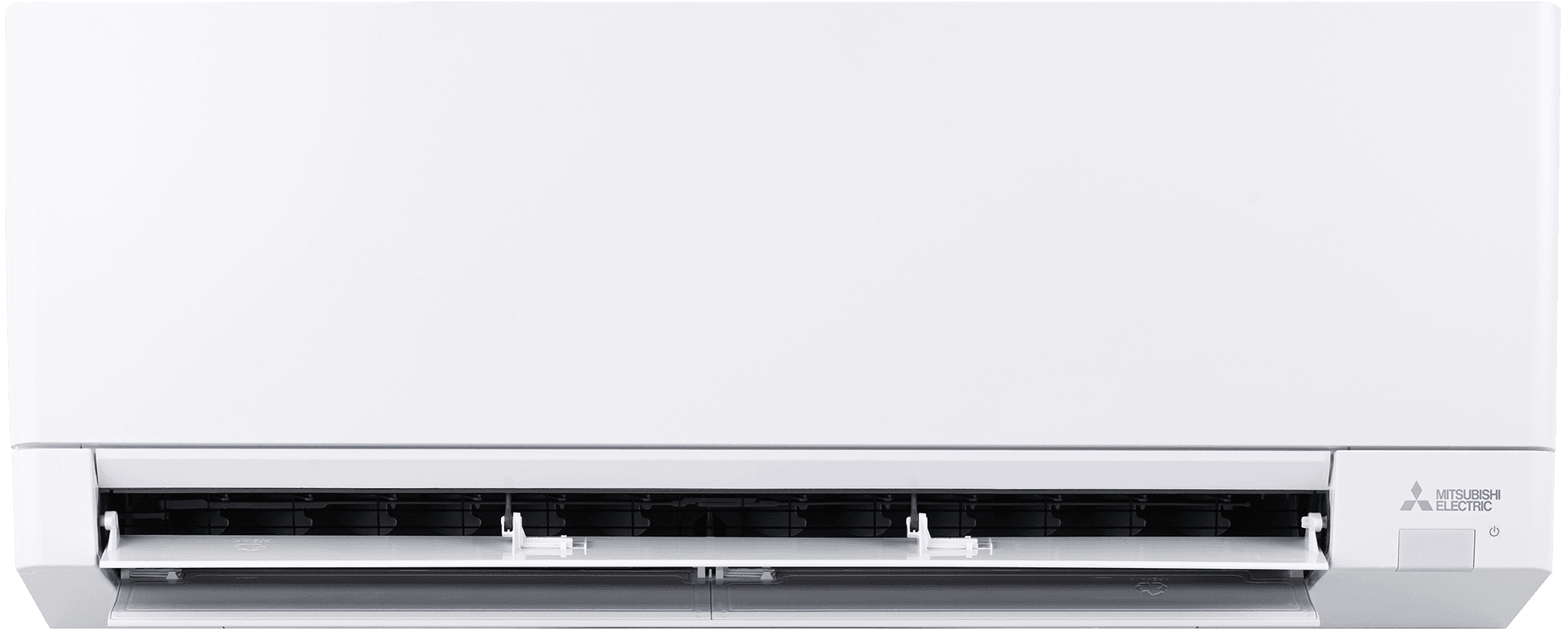

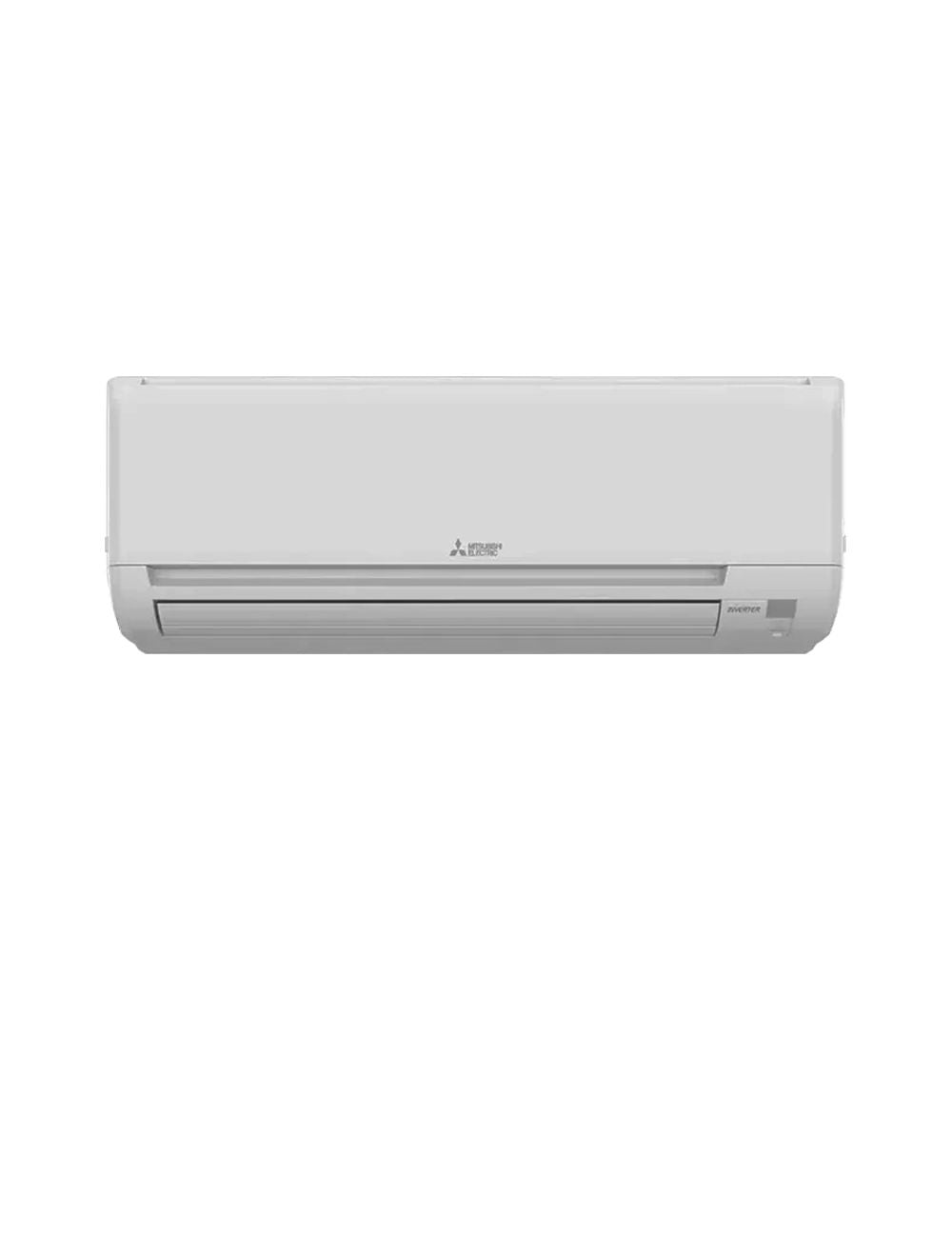

Mitsubishi Electric MSZ-GX30NL R454B 30,000 BTU Heat Pump Wall Mount Air Handler
$1,268.99
The Mitsubishi Electric MSZ-GX30NL is a 30,000 BTU heat pump wall mount air handler. This GX Premier wall-mounted indoor unit combines sleek design and energy-efficient comfort. It features a special coating inside to maintain cleanliness and efficiency, along with a Powerful Mode for rapid cooling or heating.
Description
Product Description
The Mitsubishi Electric MSZ-GX30NL is a 30,000 BTU heat pump wall mount air handler. This GX Premier wall-mounted indoor unit combines sleek design and energy-efficient comfort. It features a special coating inside to maintain cleanliness and efficiency, along with a Powerful Mode for rapid cooling or heating. The unit also has built-in Wi-Fi for convenient control.
- Dual Barrier Coating reduces contaminant collection for optimal airflow and easier maintenance.
- Econo Cool adjusts airflow to maintain comfort while using less energy.
- Built-in Wi-Fi enables control via the Comfort app.
Product Highlights
This mini-split air handler provides efficient heating and cooling with advanced features like Dual Barrier Coating and Wi-Fi connectivity.
Product Information
Standard Information
- Brand: MITSUBISHI ELECTRIC
- Manufacturer Part Number: MSZ-GX30NL
Technical Specifications
- Series: M-Series
- Type: Wall-mounted
- Model: MSZ-GX
- Capacity range: 6,000 to 36,000 BTU/H
- Sound level: As low as 19 dB(A)
- SEER2: Up to 28.4
- HSPF2: Up to 11
- Refrigerant: R454B
- BTU/h: 30,000
- Voltage: 208/230V/1P
- Mounting Style: Wall Mounted
- Product Line: M-Series
- Product Category: Mini Split Heat Pump System
- Operating Mode: Heating and Cooling
- Number of Zones: 1
- Refrigerant Type: R-454B
- Indoor Unit Size(s): 30
- Outdoor Unit Size: 30000 BTU
- DOE Regional Compliance: Nationwide
- Line Set Size: 1/4″ x 5/8″
- Cooling BTU: 30000
- Cooling Capacity: 30600 BTU
- Heating Capacity: 32600 BTU
- Maximum Sound Level: 53 dB
- Low Ambient Heating: Yes
- Minimum Outdoor Temperature for Heating: -4 F
- Minimum Outdoor Temperature for Cooling: 14 F
- EER2: 9.05
- HSPF: 8.9
- Phase: 1
- Frequency: 60 Hz
- Minimum Circuit Ampacity: 23 Amps
- Recommended Breaker Size: 40 Amps
- Suction Connection Size: 5/8 Inch
- Liquid Connection Size: 1/4 Inch
- Energy Star Listed: Yes
- ETL Listed: Yes
- AHRI Certified: Yes
- AHRI Reference Number: 215862738
- Maximum Line Length: 100 Feet
- Gas Connection Size: 5/8 Inch
- Parts Warranty: 5 Years
- Compressor Warranty: 7 Years
- Remote Control: Wireless
- Indoor Unit Cooling BTU: 30000
- Indoor Unit Cooling Capacity: 30600 BTU
- Indoor Unit Heating Capacity: 32600 BTU
- Moisture Removal: 8.3 Pints/Hour
- Maximum Air Flow: 765 CFM
- Minimum Air Flow: 292 CFM
- Minimum Sound Level: 30 dB
- Indoor Unit Maximum Sound Level: 53 dB
- Indoor Unit Product Height: 12 13/16 Inches
- Indoor Unit Product Width: 43 5/16 Inches
- Indoor Unit Product Depth: 10 1/8 Inches
- Indoor Unit Product Weight: 37 Pounds
- Indoor Unit Shipping Weight: 42 Pounds
Additional information
| Weight | 37.00 lbs |
|---|---|
| Brand | MITSUBISHI ELECTRIC |
| BTU | 30600 BTU |
| SEER | Up to 28.4 |
| Voltage | 208/230V/1P |
| Refrigerant | R-454B |
