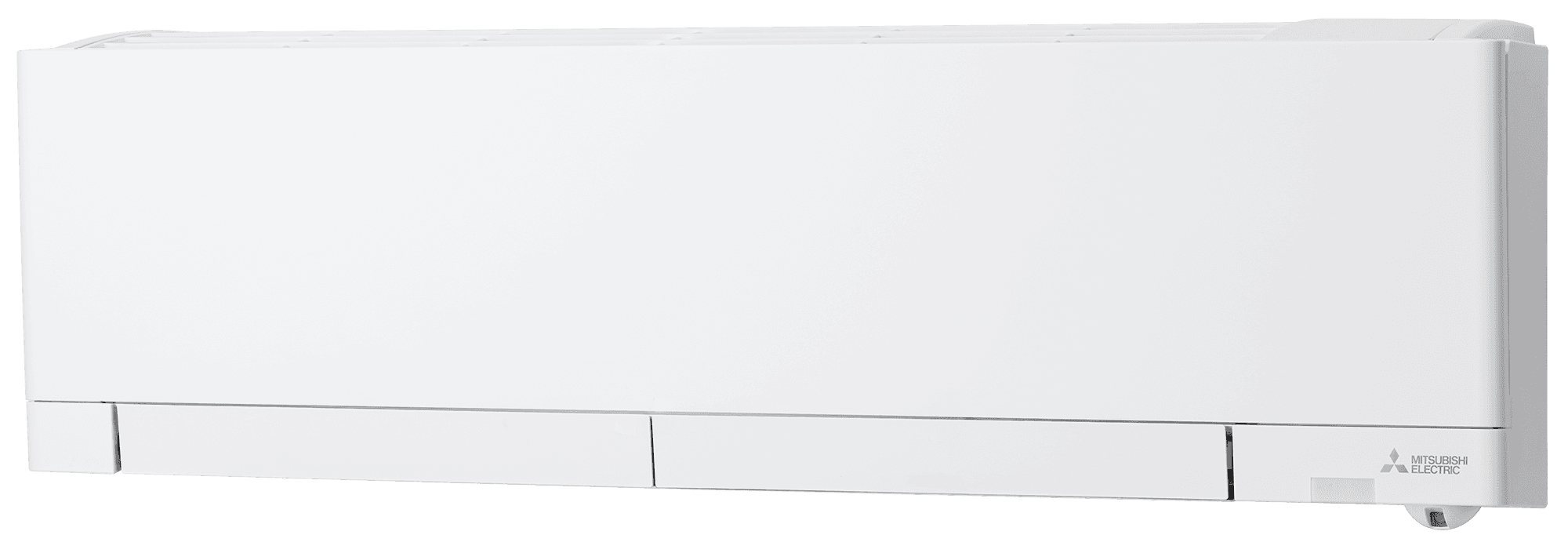

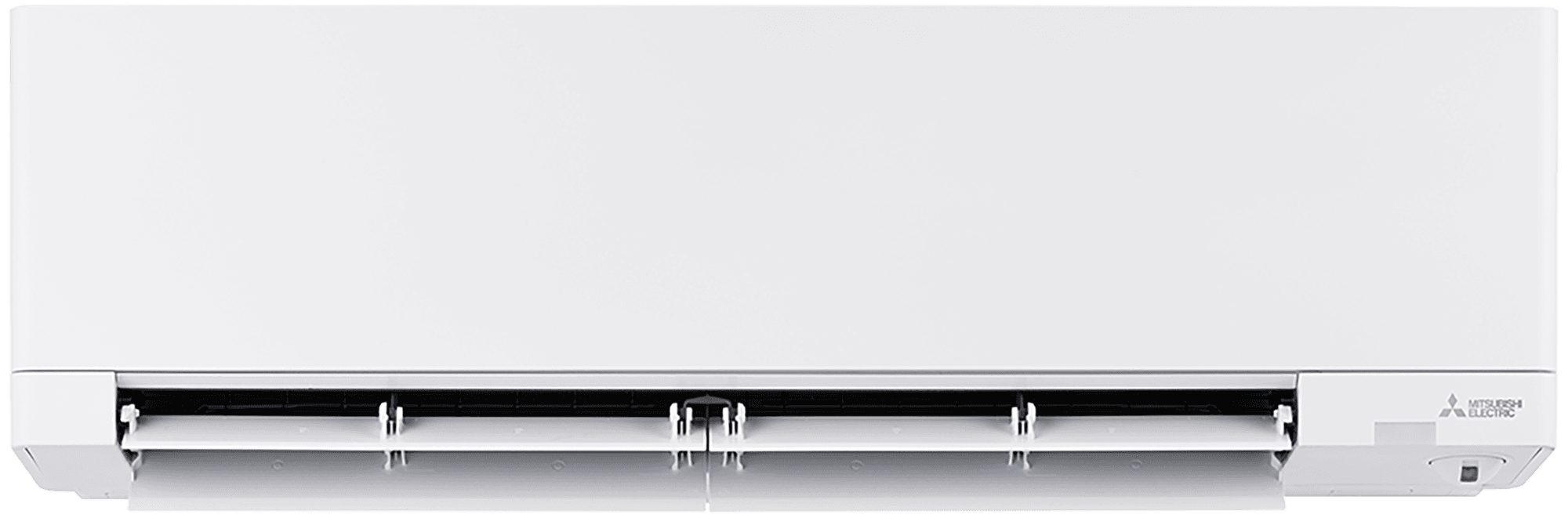

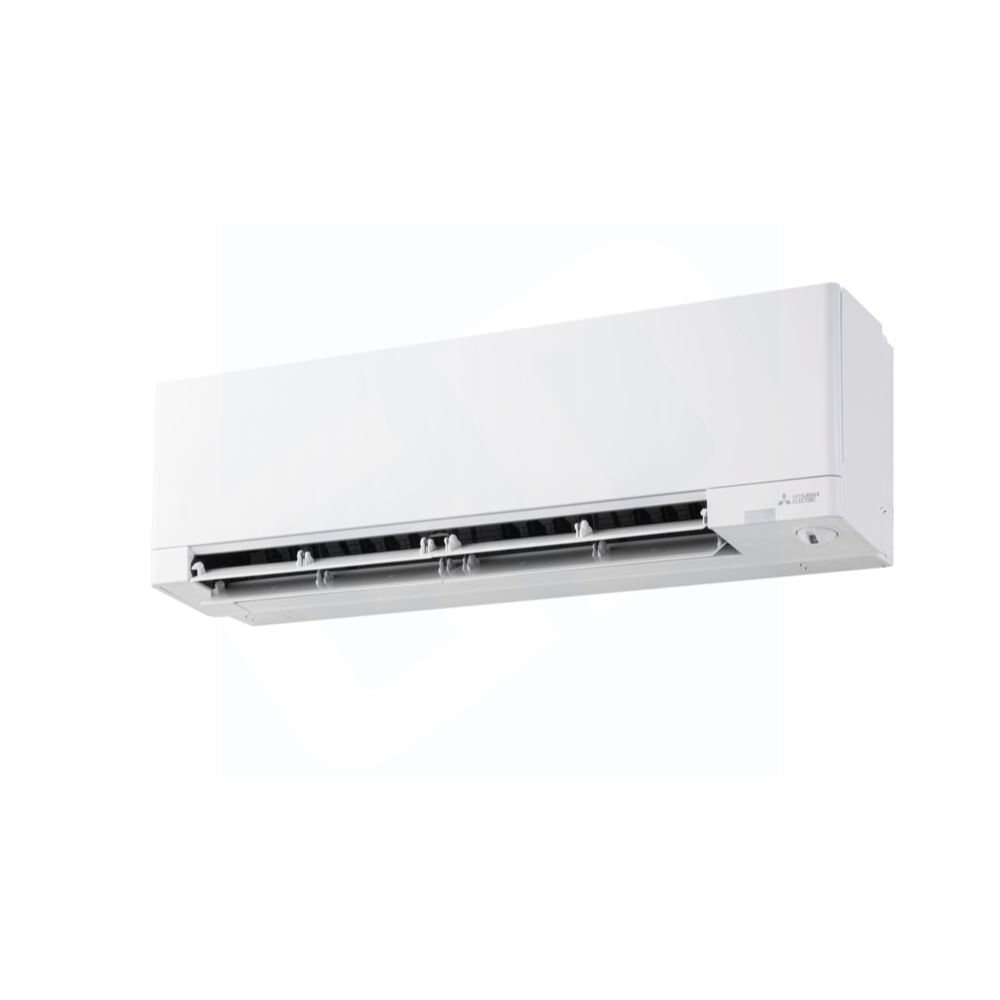

Mitsubishi Electric MSZ-FX06NL R454B: 6,000 BTU HI-SEER HYPER HEAT AIR HANDLER
$748.96
The Mitsubishi Electric MSZ-FX06NL is a R454B: 6,000 BTU HI-SEER HYPER HEAT AIR HANDLER. This wall mounted heat pump mini split indoor unit is designed for use in single-zone or multi-zone systems. It features quiet operation and easy installation with a convenient mounting plate.
Product Description
The Mitsubishi Electric MSZ-FX06NL is a R454B: 6,000 BTU HI-SEER HYPER HEAT AIR HANDLER. This wall mounted heat pump mini split indoor unit is designed for use in single-zone or multi-zone systems. It features quiet operation and easy installation with a convenient mounting plate. With multiple operating modes, fan speeds and airflow directions, this unit fits the needs of nearly any room.
- Features an advanced filtration system
- Offers built-in Wi-Fi for smart device control
- Incorporates a dual barrier coating to prevent dirt build-up
Product Highlights
The MSZ-FX06NL offers efficient, user-friendly comfort with its advanced features and quiet operation, making it an excellent addition to any space.
Product Information
Standard Information
- Brand: MITSUBISHI ELECTRIC
- Manufacturer Part Number: MSZ-FX06NL
Technical Specifications
- Condition: New
- Type: Wall Mounted
- Product Line: M-Series
- Product Category: Mini Split System Components
- Operating Mode: Heating and Cooling
- Multi-Zone Compatible: Yes
- Refrigerant Type: R-454B
- Remote Control: Wireless
- Installation Location: Indoor
- Cooling BTU: 6000
- Cooling Capacity: 6000 BTU
- Heating Capacity: 9000 BTU
- Maximum Air Flow: 477 CFM
- Minimum Air Flow: 150 CFM
- Minimum Sound Level: 20 dB
- Maximum Sound Level: 42 dB
- Voltage: 208/230 Volts
- Phase: 1
- Frequency: 60 Hz
- Gas Connection Size: 3/8 Inch
- Liquid Connection Size: 1/4 Inch
- Product Height: 12 Inches
- Product Width: 39.27 Inches
- Product Depth: 9.75 Inches
- Shipping Weight: 36.4 Pounds
- ETL Listed: Yes
- AHRI Certified: Yes
- Parts Warranty: 5 Years
- Number of Zones: 1
- Line Set Size: 1/4″ x 3/8″
- WiFi Enabled: Yes with Comfort App
- WiFi Built In: No
- Indoor Unit: MSZ-FX06NL
- Room Cooling/Heating Capacity: up to 250 sq ft
- Airflow Cooling CFM, Dry: 177-233-293-371-420
- Airflow Cooling CFM, Wet: 150-198-249-315-357
- Airflow Heating CFM, Dry: 177-247-311-406-477
- Noise Level dB(A), Cooling: 20-23-29-36-40
- Noise Level dB(A), Heating: 20-24-29-36-42
- Series: M-Series
- Model: MSZ-FX
- SEER2: Up to 35
- HSPF2: Up to 13.3
- ENERGY STAR: Yes
- Capacity: 6,000 BTU/H
- Service Ref: MSZ-FX06NL
- BTU/h: 6,000
| Weight | 31.40 lbs |
|---|---|
| Brand | MITSUBISHI ELECTRIC |
| BTU | 6,000 BTU |
| SEER | Up to 35 |
| Voltage | 208/230 Volts |
| Refrigerant | R-454B |
