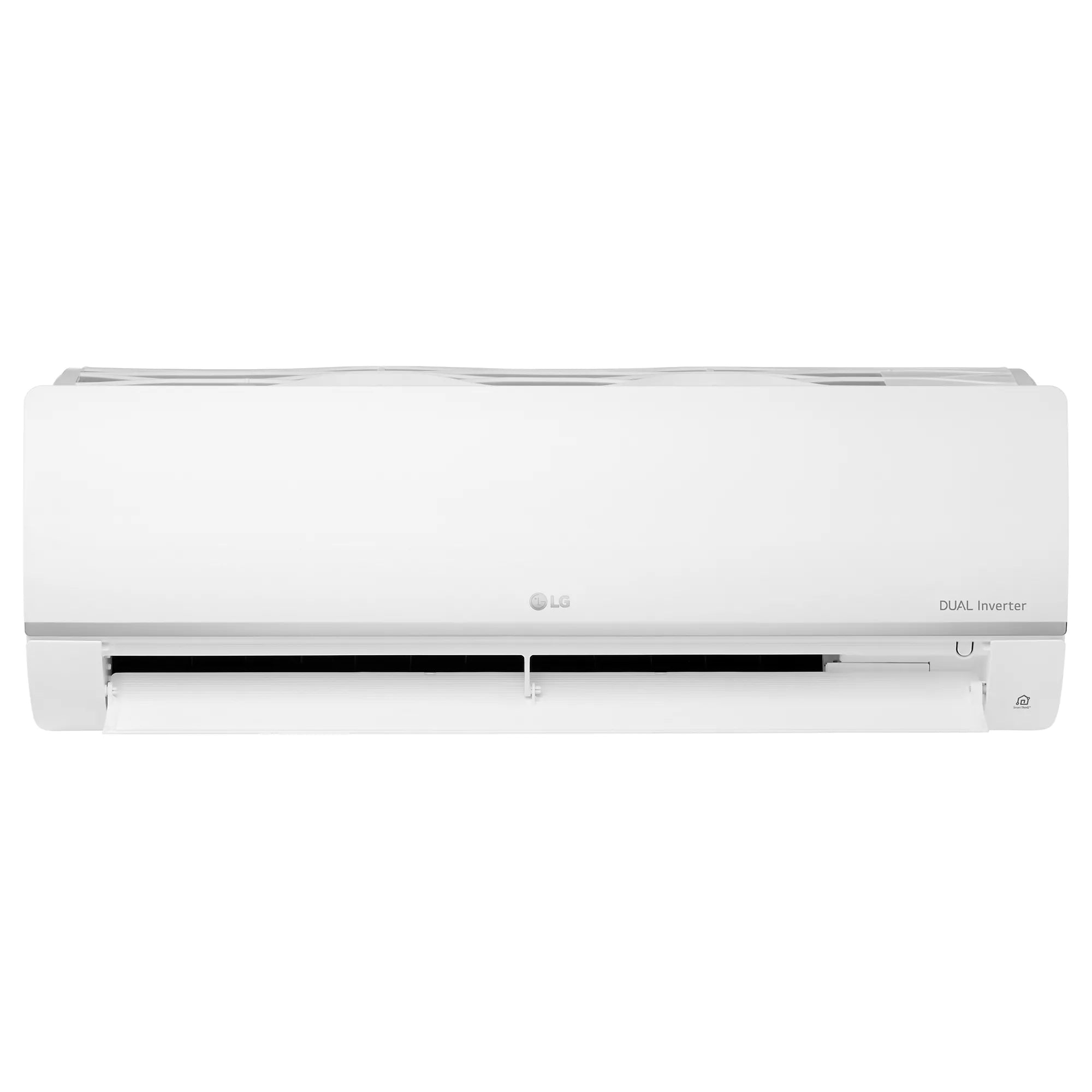

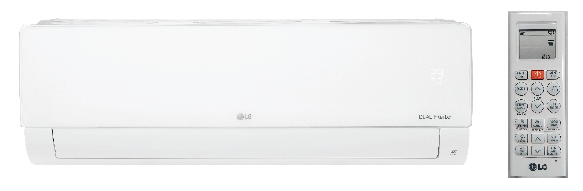

Lg LMN249HVT 24,000 BTU Multi Wall Mounted Heat Pump Air Handler
$939.88
The LG LMN249HVT is a versatile multi-zone indoor unit from LG’s Multi F line, offering efficient ductless solutions. Designed for various applications, this wall-mounted mini-split unit features quiet operations and a clean design. Built-in Wi-Fi enables control via smart devices using the SmartThinQ app.
Description
Product Description
The LG LMN249HVT is a versatile multi-zone indoor unit from LG’s Multi F line, offering efficient ductless solutions. Designed for various applications, this wall-mounted mini-split unit features quiet operations and a clean design. Built-in Wi-Fi enables control via smart devices using the SmartThinQ app. It also includes options for automated airflow and a self-cleaning heat exchanger coil.
- Features built-in Wi-Fi for smart device control.
- Offers automated airflow options with swing and chaos wind modes.
- Operates quietly, with noise levels as low as 36 dB.
Product Highlights
This LG mini split indoor unit provides efficient heating and cooling, quiet operation, and smart features for optimal comfort in any space.
Product Information
Standard Information
- Brand: LG
- Manufacturer Part Number: LMN249HVT
- Country of Origin: KOR
Technical Specifications
- Capacity (BTU/h): 24000
- UL Listed: Yes
- Product Depth: 9.8438 Inches
- Product Width: 40.5625 Inches
- Type: Wall Mounted
- ETL Listed: Yes
- Product Height: 12.7813 Inches
- Frequency: 60 Hz
- Product Category: Mini Split System Components
- Shipping Weight: 36 Pounds
- ISO Certified: Yes
- Cooling Capacity: 24000 BTU
- Maximum Air Flow: 597 CFM
- Minimum Air Flow: 367 CFM
- Gas Connection Size: 1/2 Inch
- Maximum Sound Level: 46 dB
- Minimum Sound Level: 36 dB
- Drain Outlet Diameter: 0.625 Inch
- Product Line: Multi F
- Liquid Connection Size: 1/4 Inch
- Operating Mode: Heating and Cooling
- Remote Control: Wireless
- Parts Warranty: 5 Years
- Refrigerant Type: R-410A
- Installation Location: Indoor
- Multi-Zone Compatible: Yes
- Phase: 1
- AHRI – Usage: Indoor AHU
- Blower Motor RPM: 950
- Blower Motor Type: ECM (Electronically Commutated Motor)
- Blower Motor Watts: 60
- Cooling Rated Capacity Btu/h: 24000
- EER: 15
- Energy Star Rated: Yes
- Equipment Type: Heat Pump
- Heating Capacity: 25600
- Liquid Line Fitting Type: Flare
- Liquid Line Size (OD): 0.25 Inch
- Mounting Type: Wall-Mount
- Product Family: LMN
- Prop 65: Yes
- SEER: 20
- Sound Level (dBA): 36-46
- Stage: Single
- Suction Line Fitting Type: Flare
- Suction Line Size (OD): 0.5 Inch
- Tonnage: 2 Ton
- Voltage: 208-230 VAC
- Maximum Overcurrent Protection (MOCP): 15
- Country of Origin: KOR
- Series: High Efficiency – Multi-F
- Rated Load Amps (RLA): 0.4
- Rated Current Amps (RCA): 0.4
- Air Circulation (CFM H/M/L): 597/452/367
- Sound Level H/M/L (dB(A)+3): 46/41/36
- Application: Cooling
- Sensor Type: Thermistor
- Product Type: Indoor Unit
- Number of Zones: 1
- Fan Type: Cross Flow
- Features: Wifi
- Power Source: 208/230 V AC, 1 ph, 60 Hz
Additional information
| Weight | 31.00 lbs |
|---|---|
| Brand | LG |
| BTU | 24,000 BTU |
| SEER | 20 |
| Voltage | 208/230 VAC |
| Refrigerant | R-410A |
| Tonnage | 2 Ton |
