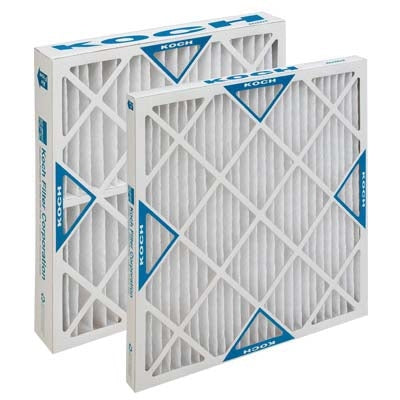

Koch Filter 102-700-002 MERV 8 Pleated Air Filter 12 x 24 x 1 inch

Product Description

The Koch Filter 102-700-002 is a medium efficiency pleated air filter, designed to provide superior air quality and performance compared to standard filters. Its engineered design enhances initial efficiency and dust-holding capacity significantly.

• Engineered for superior performance with a MERV 8 rating.
• Features a robust double-wall frame and mechanical media that does not rely on electrostatic charge.
• Low airflow resistance maximizes HVAC system efficiency.

Product Highlights

This filter is ideal for environments requiring high air quality, such as hospitals and laboratories. It maintains optimal performance in a standard capacity, ensuring reliability and effectiveness across various applications.

Product Information

Standard Information

• Dimensions: 12 inches W x 24 inches H x 1 inch D
• Material: Synthetic fiber media

Technical Specifications

• Filter Type: Pleated Panel Filter
• Media Area: 3.3 square feet
• Air Flow Capacity: 600 CFM
• Rated Airflow Velocity: 300 FPM
• Maximum Operating Temperature: 200 degrees F
• Initial Resistance: 0.26 in-WG
• Final Resistance: 1 in-WG
• Standards/Certifications: ASHRAE 52.2-2007, UL Listed
