Honeywell Residential TH114-AF-GA Line Volt Non-Programmable Electronic Thermostat For Electric Floor Heating Applications

Name: Honeywell Residential TH114-AF-GA Line Volt Non-Programmable Electronic Thermostat For Electric Floor Heating Applications
Brand: HONEYWELL RESIDENTIAL
SKU: TH114-AF-GA
Availability: InStock

$286.39

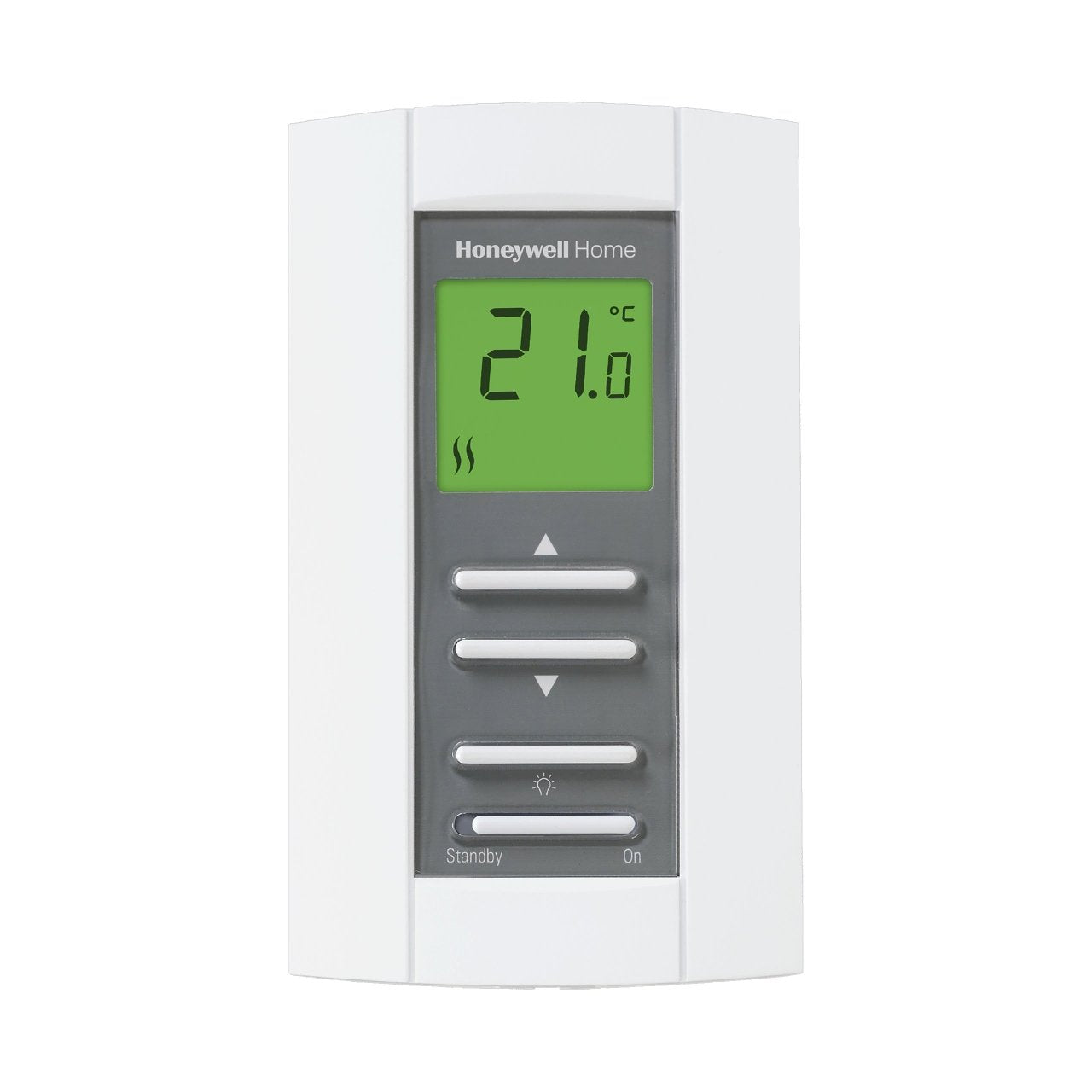

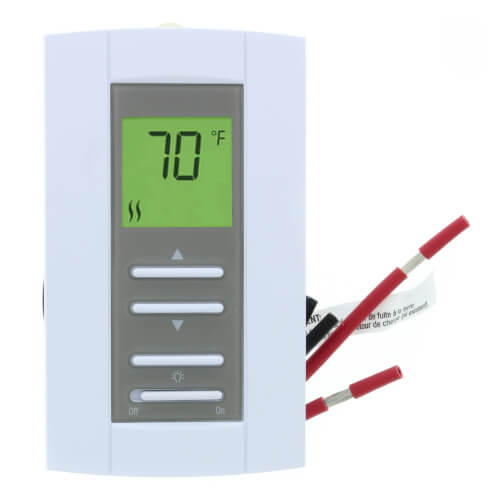

The HONEYWELL RESIDENTIAL TH114-AF-GA is a 120/240V line volt, non-programmable electronic thermostat designed for electric floor heating applications. It features precise temperature controls and an easy-to-read backlit display. The thermostat offers three temperature control choices: ambient, floor, or ambient with floor temperature limits.

Compare

Add to wishlist

SKU: TH114-AF-GA Categories: Line Voltage, Thermostats

Description

Product Description

Non-Programmable
Electronic Thermostat
For Electric Floor Heating Applications

Product Highlights

This thermostat delivers essential features in a slim, contemporary design, ensuring comfort and safety for electric floor heating systems.

Product Information

Standard Information

Brand: HONEYWELL RESIDENTIAL
Manufacturer Part Number: TH114-AF-GA
Country of Origin: China

Technical Specifications

Brand: HONEYWELL RESIDENTIAL
MPN: TH114-AF-GA
Application: Electric Heat (Line Voltage)
Programmability: Non-Programmable
User Interface: Push Button
Mount: Vertical
Power Method: Hardwired
Operating Temp Range: 32° to 122°F
Switch Position: AF (Ambient + Floor)
F (Floor Only)
Accuracy (Temp): 0.9°F
Ambient Setting Temp (F): 40° to 86°F
Floor Setting Temp (F): 40° to 104°F
Max Temp Differential: 1°F
Sensor Element: Thermistor
Voltage: 120 V
Thermostat Type: Line Voltage, Non programmable
Smart Home Integration: No
Display Type: LCD Screen
Modes of Operation: Heat
Program Type: Manual / Not Programmed
Power Supply: Hardwired
Frequency: 60 Hz
Warranty: 3 Years
Includes: AC112-01 15-feet / 4.6-m floor sensor
RedLINK: No
Sensor Type: Thermistor
Backlight Options: Backlight Button
Temperature Accuracy: 0.9 °F, 0.5 °C
Mounting Type: Vertical Mount

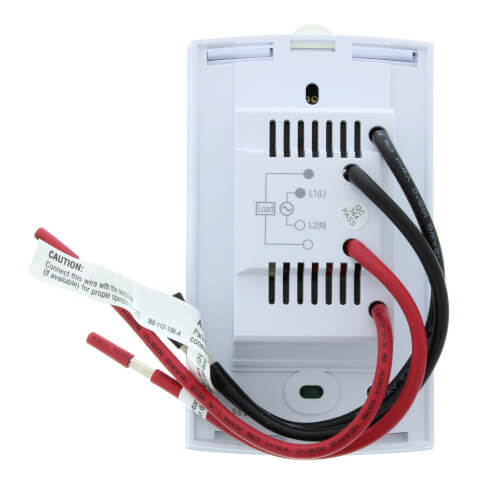

Electrical Connection: Single pole, 2 wires, hot & neutral
Connection Method: Hardwired
Maximum Load (Resistive Only): 1800 W – 120 V, 15 A
Country of Origin (COO): China
Ground Fault Protection (GFCI): Class A, 5 mA
SKU: TH114-AF-120GA
Has Floor Sensor: y

Additional information

Weight	2.00 lbs
Brand	HONEYWELL RESIDENTIAL
Voltage	120 V
