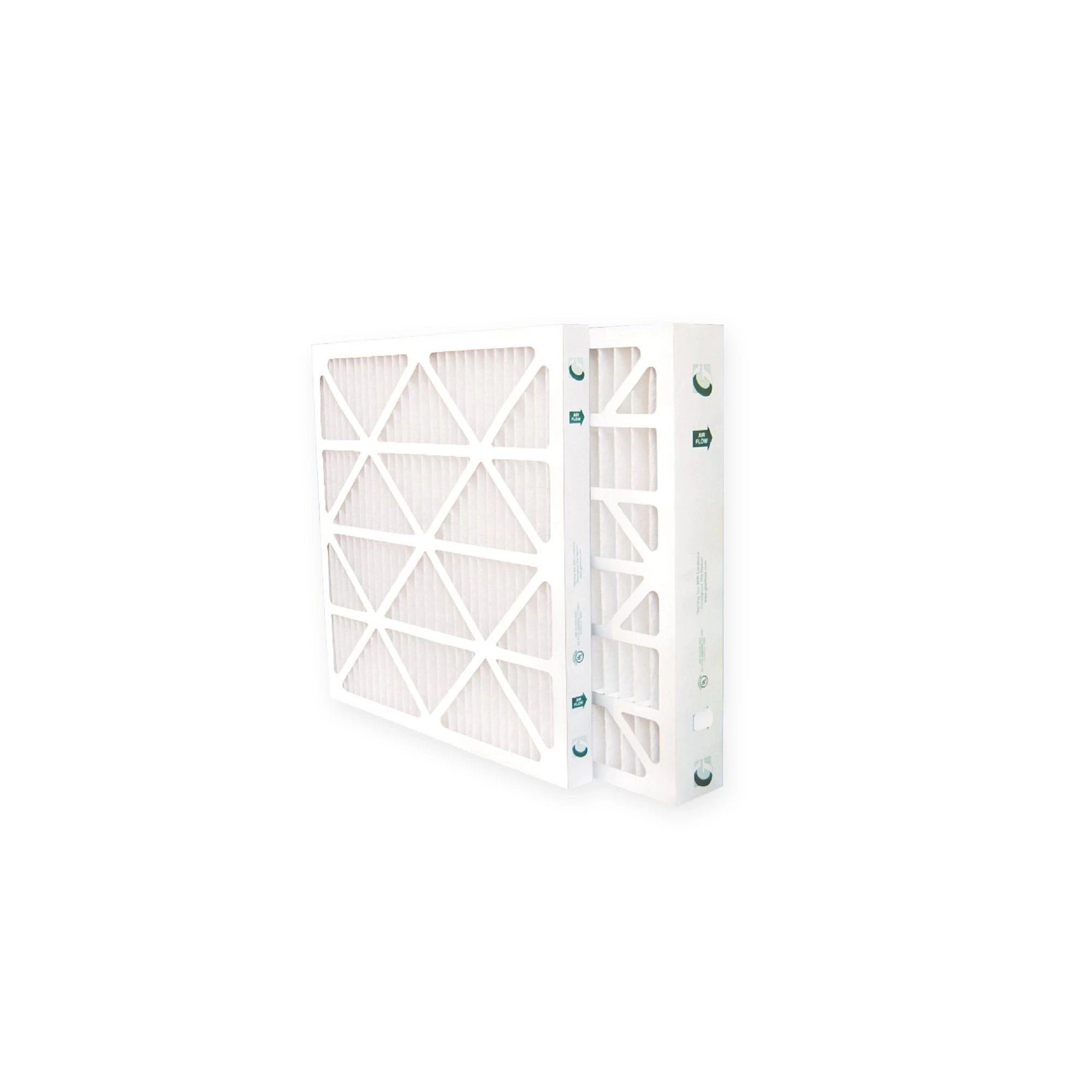

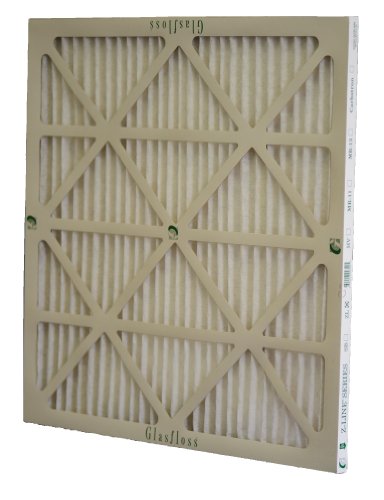

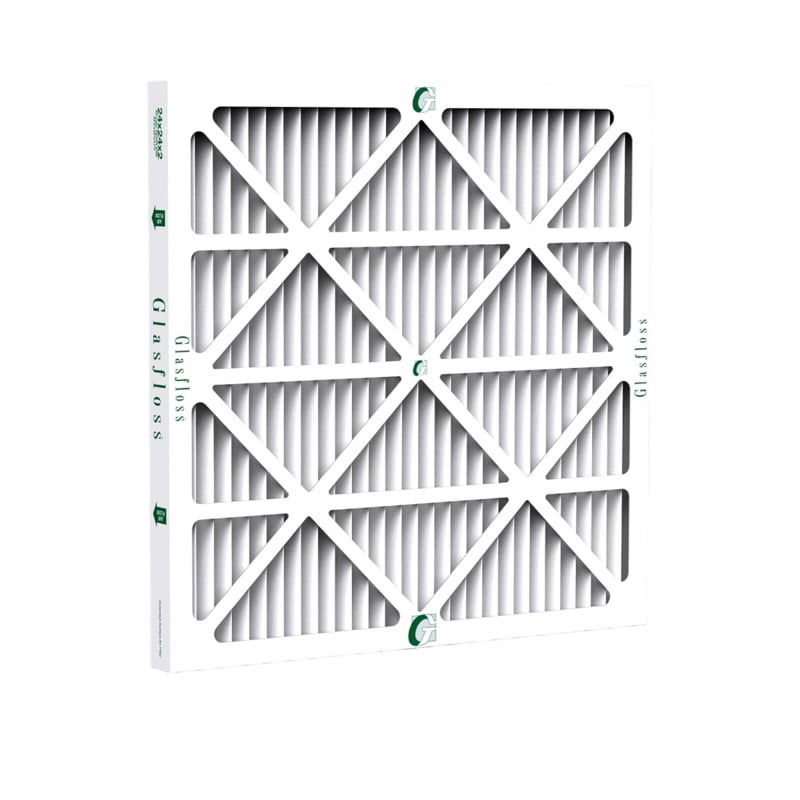

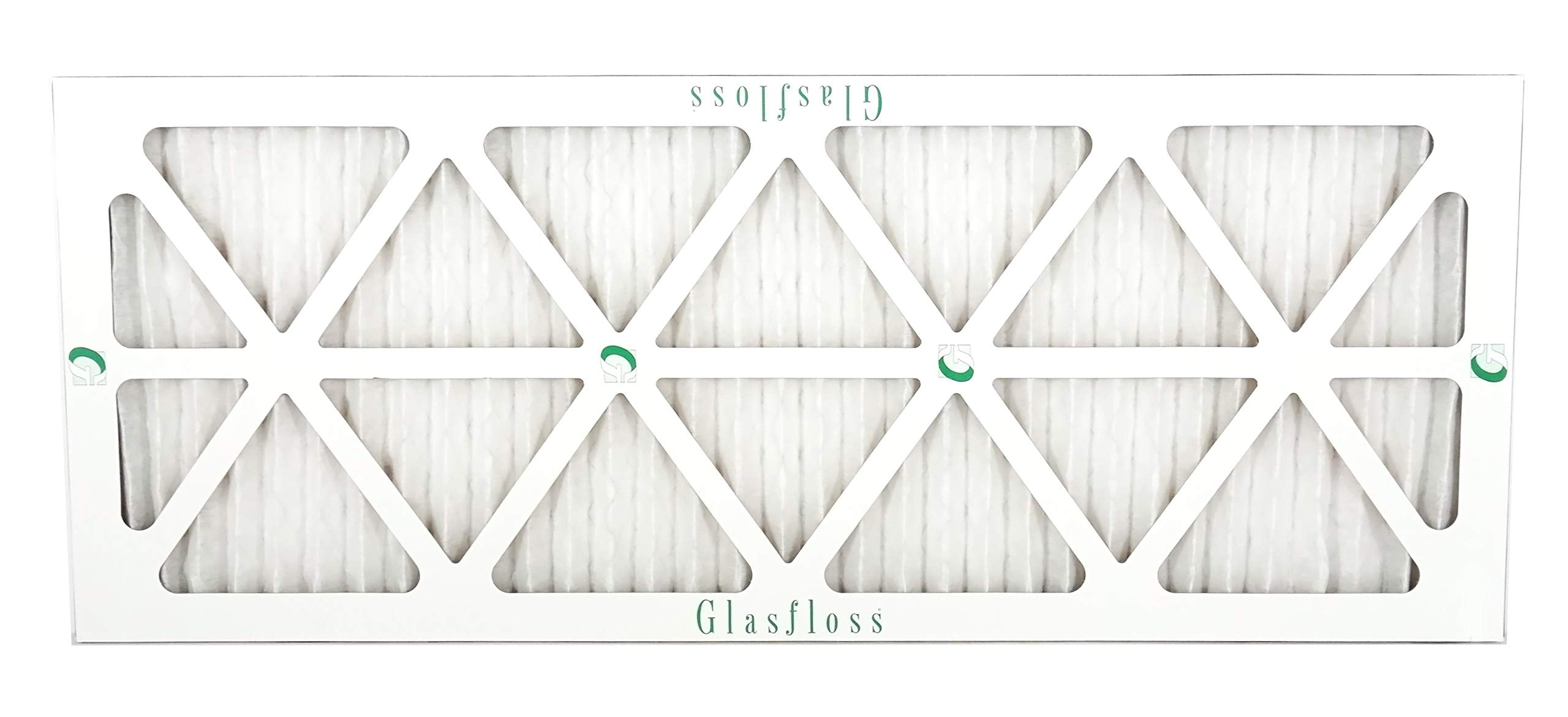

Glasfloss ZLP10301 Z-Line ZL Pleated Air Filter 10 x 30 x 1 MERV 10

Product Description

The Glasfloss ZLP10301 Z-Line Series pleated filters offer improved performance for virtually every application. These filters feature fibers which do not absorb moisture and will not support microbial growth. The SB, ZL and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

This extended-surface pleated-media filter is made with 100% synthetic fibers and is ideal for residential, commercial buildings, hospitals, and industrial applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP10301
• Country of Origin: US

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP10301
• Filter Type: Pleated
• MERV Rating: 10
• Width: 10 in
• Height: 30 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Efficiency: 40% to 85%
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Height in Inches: 30
• Nominal Filter Size in Inches (W x H x D): 10 x 30 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 10
• Pleats per Linear Feet: 14
• Prop 65: Yes
• Removes Fine Dust: Yes
• Removes Smoke: No
• Country of Origin: USA
• Temperature Rating: 180 deg F
• Flow Rate: 300 fpm
• Media Material: Synthetic Fiber
• Domestic/Import: Domestic
• Final Resistance: 1 in WG
• Initial Resistance: 0.18 in wg
• Series: Z-Line ZL
• Overall Dimensions: 9-5/8 in W x 7/8 in D x 29-5/8 in H
• Nominal Pleat: 14 Plates/Linear-Ft
