Genesis 32170112 bttwpr188cl2p 18/8 Stranded OAS CL2P (Plenum) Control Cable 250 feet

Product Description

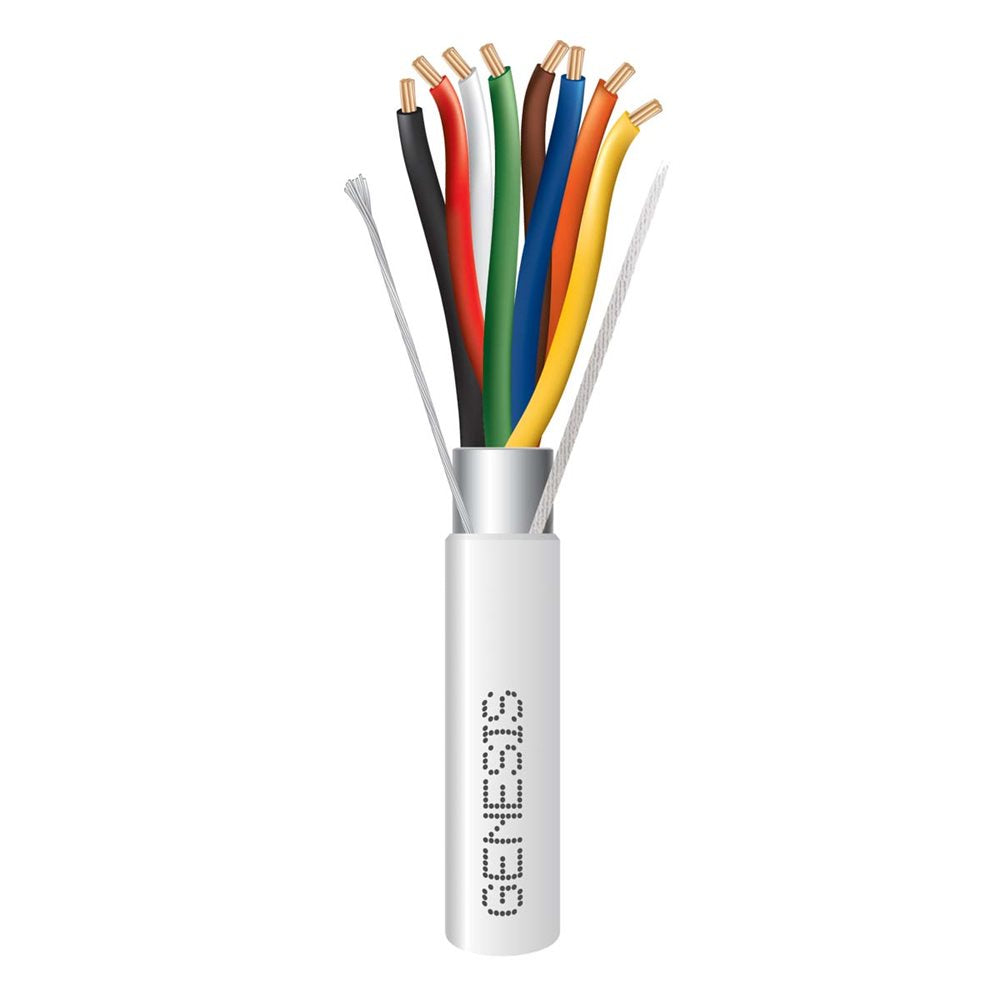

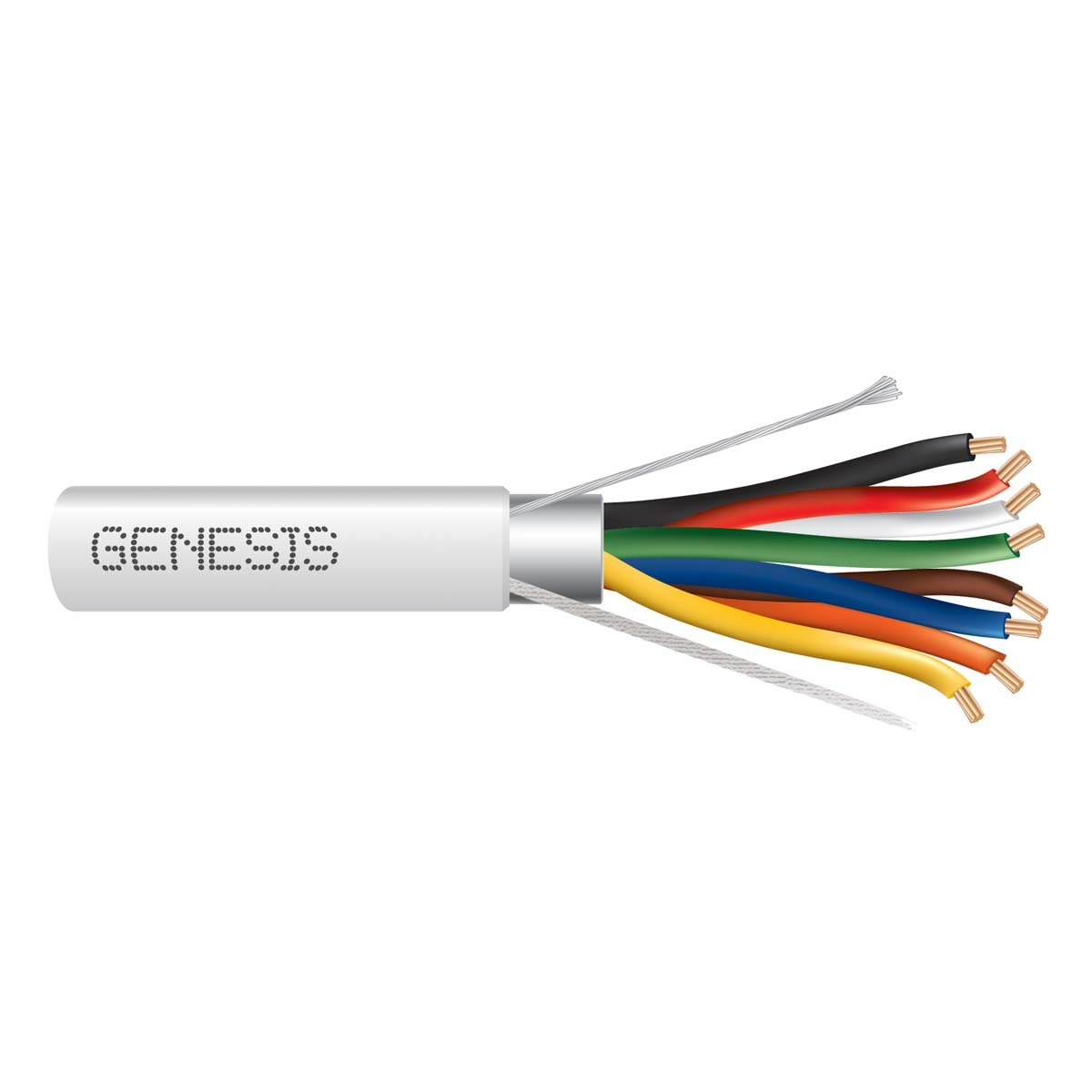

The GENESIS 32170112 BTTWPR188CL2P is an 18/8 stranded overall shielded CMP/CL2P (Plenum) control cable. This thermostat cable features plenum polyvinyl chloride (PVC) insulation and jacket material. It is suitable for wiring burglar alarms, public address systems, and other low voltage circuits. Available as a 250′ reel.

• 18/8 Stranded and Overall Shielded
• CMP/CL2P (Plenum) Control Cable

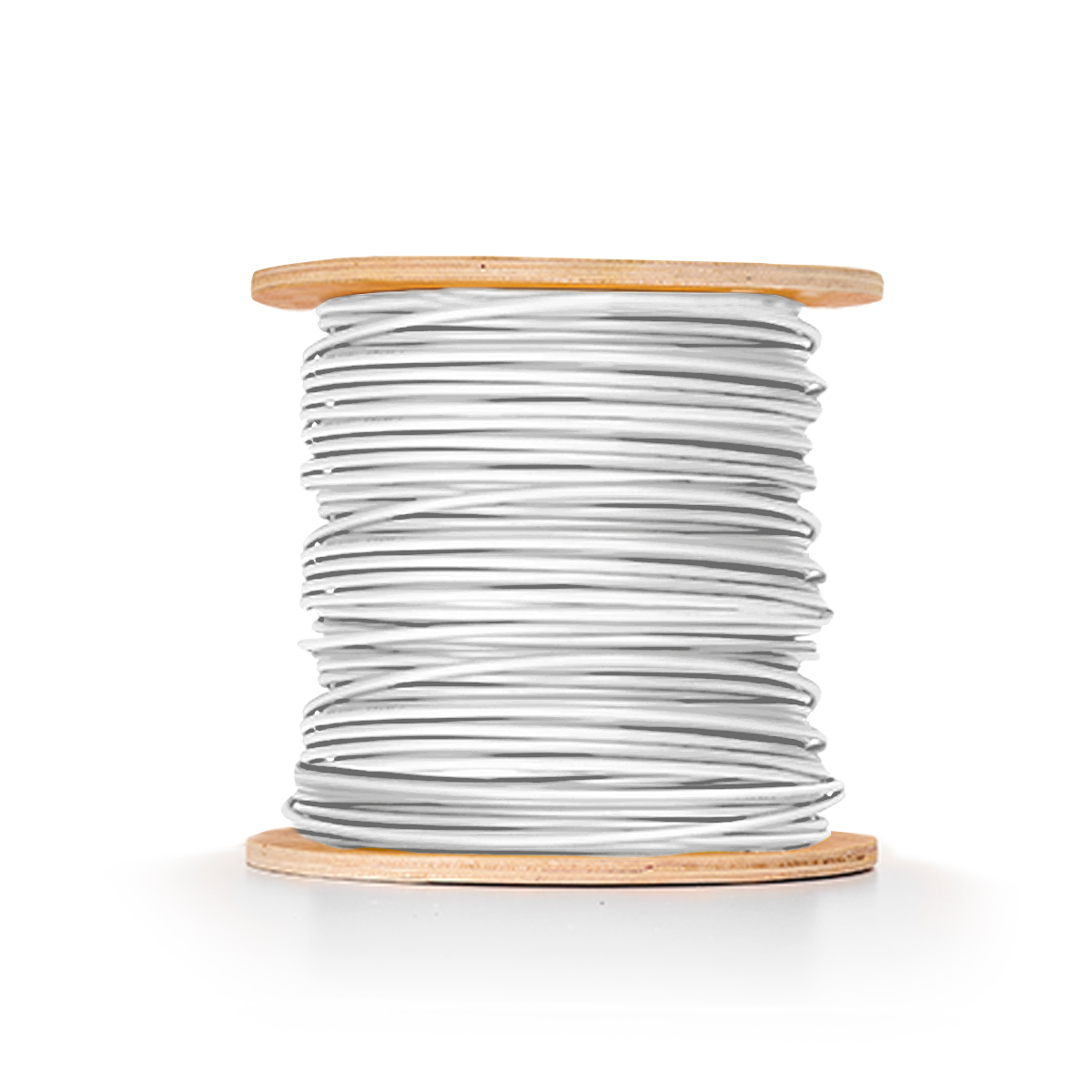

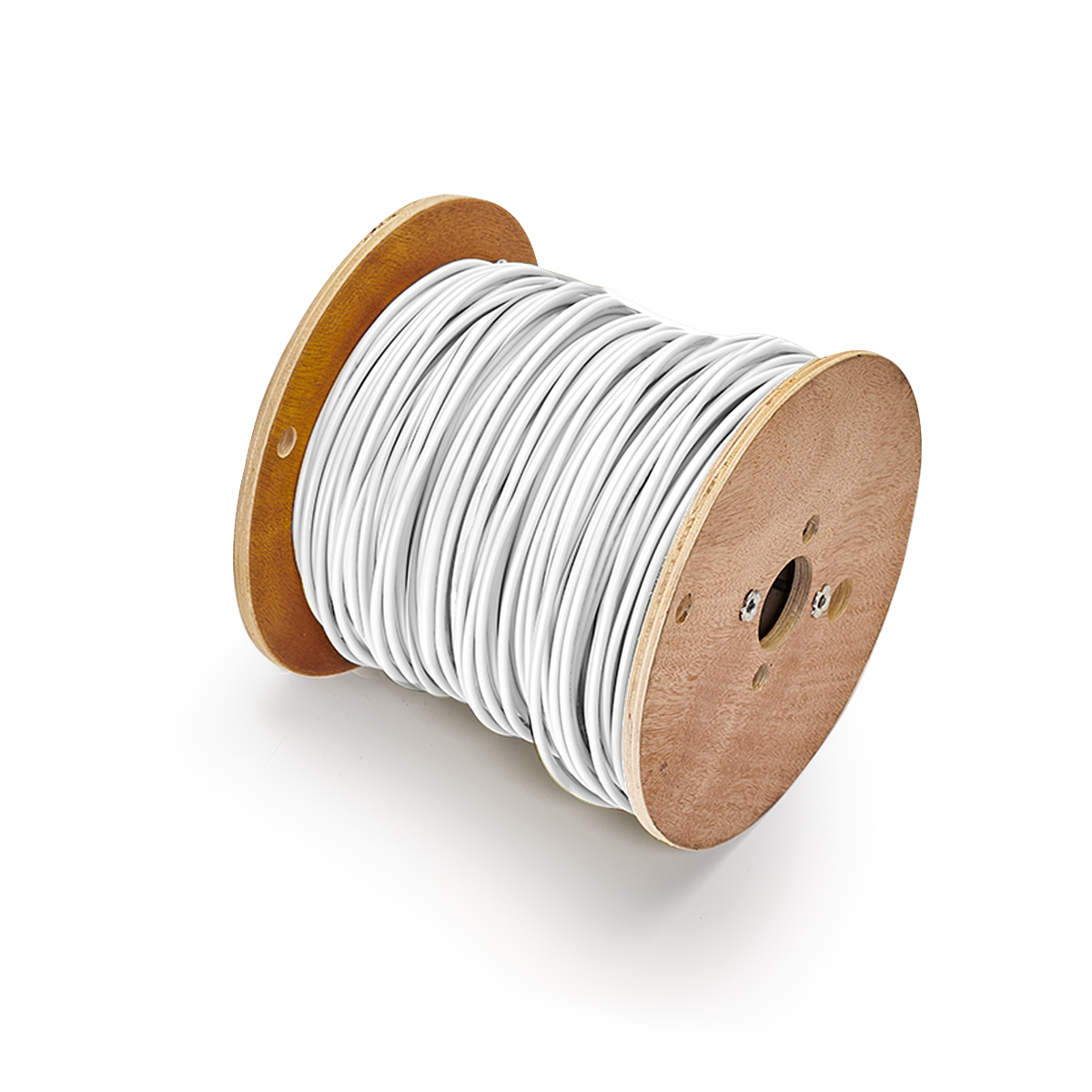

• 250′ Reel

Product Highlights

This GENESIS control cable is ideal for security, controls, audio, and other low-voltage applications requiring a plenum-rated cable.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 32170112
• Country of Origin: USA

Technical Specifications

• Brand: GENESIS
• Cable Type: CMP/CL2P
• Capacitance Range: 60 pf/ft nom.
• Coil Length: 250′
• Flame/Smoke Rating: UL910, CSA FT6, NFPA 262
• Insulation Type: Plenum Polyvinyl Chloride (PVC)
• Jacket Material: Plenum Polyvinyl Chloride (PVC)
• Temperature Rating: -4°F to 140°F (-20°C to 60°C)
• Wire Gauge: 18 AWG
• Wire Type: Thermostat
• UV Resistant: No
• Shielded: Yes
• Packaging: Reel
• Conductors: 8
• Jacket Rating: Plenum
• Conductor Type: Stranded
• Voltage: 300v
• AWG: 18
• Features: Plenum-Rated
• Outside Diameter: 0.230
• Application: Multi-Purpose
• Package Type: Reels
• Approvals: CMP, FT6, OAS, C(UL), CL2P
• Size (AWG or kcmil): 18 AWG
• Size (mm2): 18 AWG
• No. of Conductors: 8
• Stranding: Stranded
• Nominal Total Weight (lbs/1000′): 57
• Nominal Total Weight (kgs/km): 85
• Number of Wire: 8
• Prop 65: No
