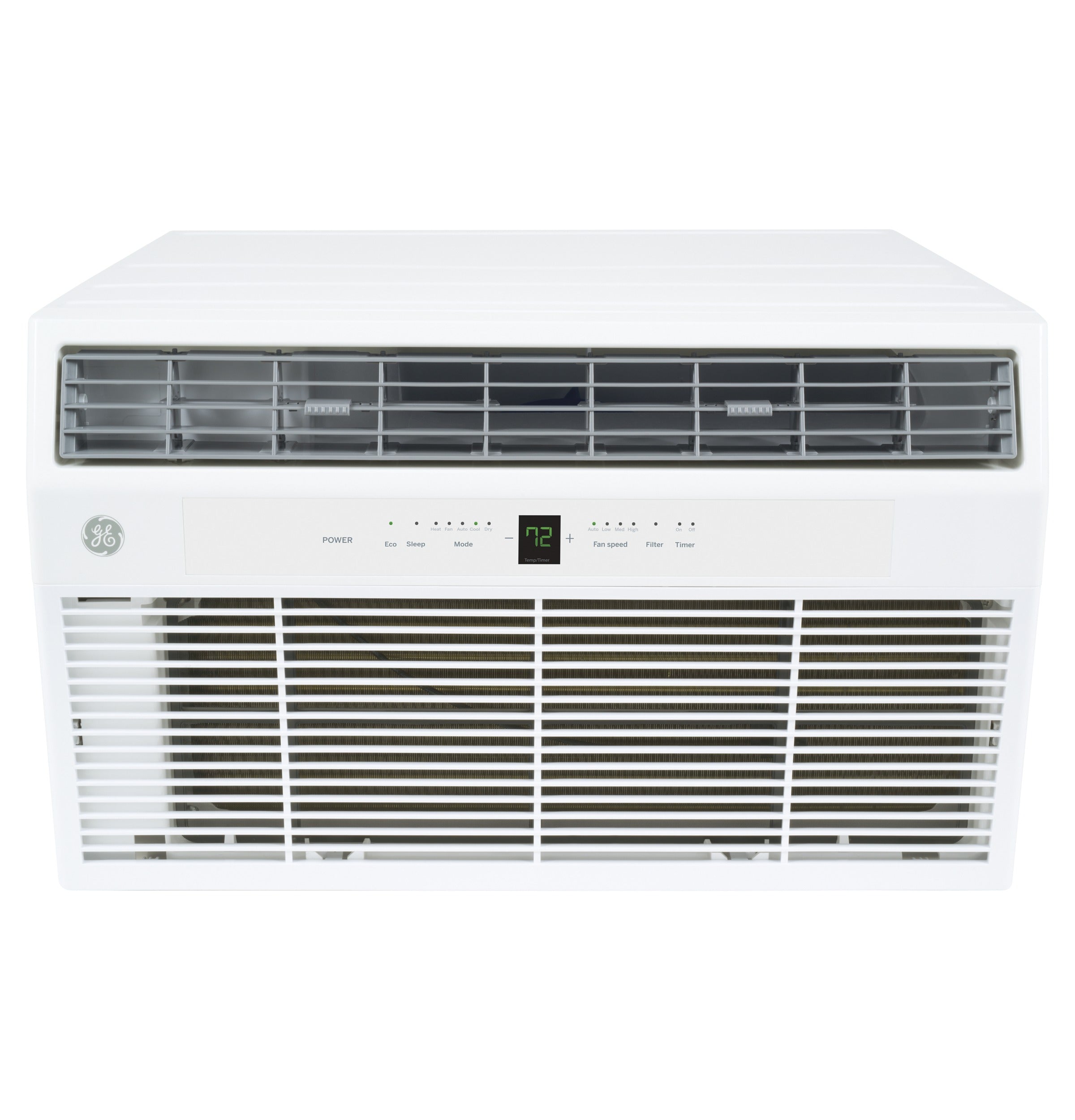

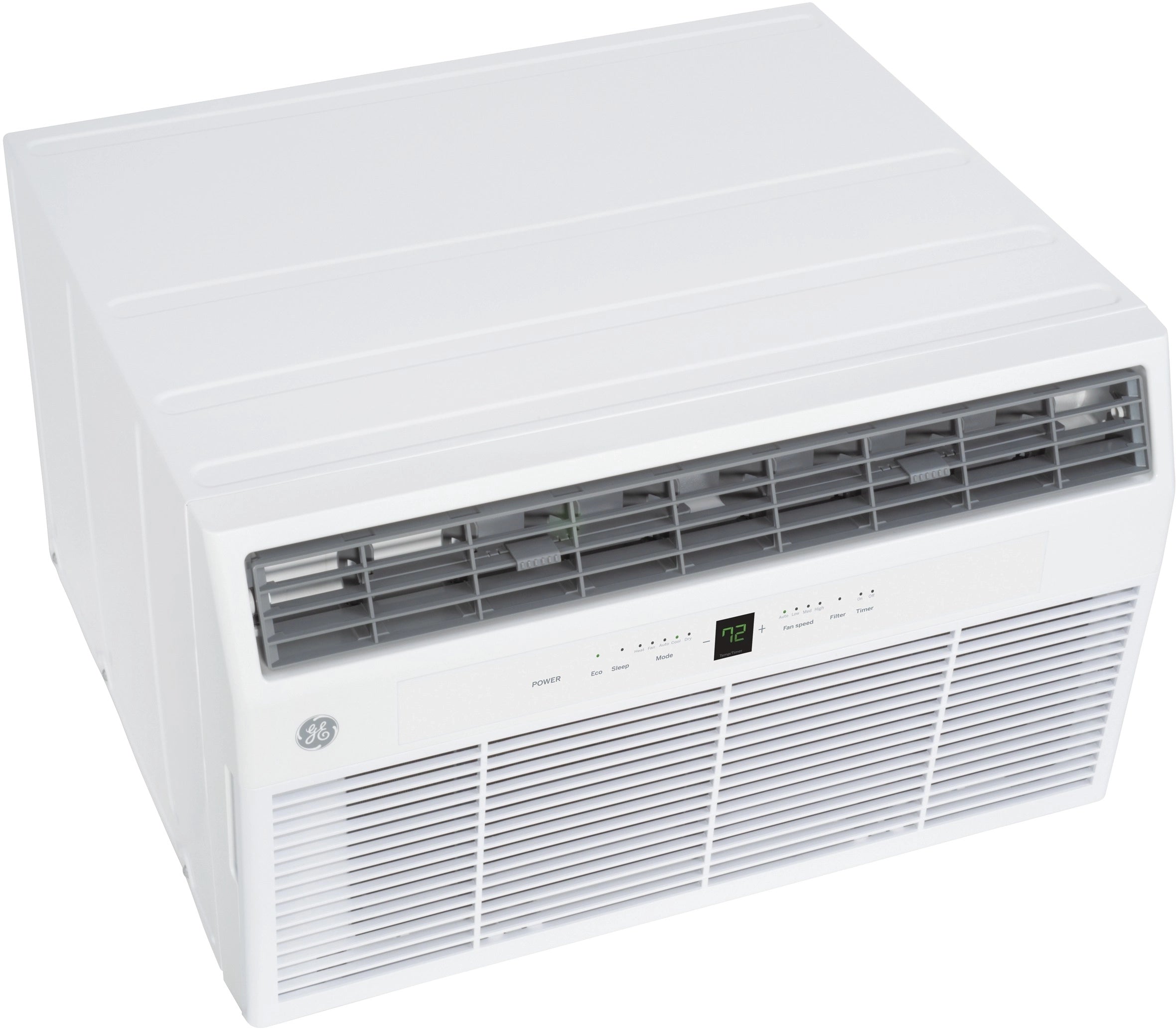

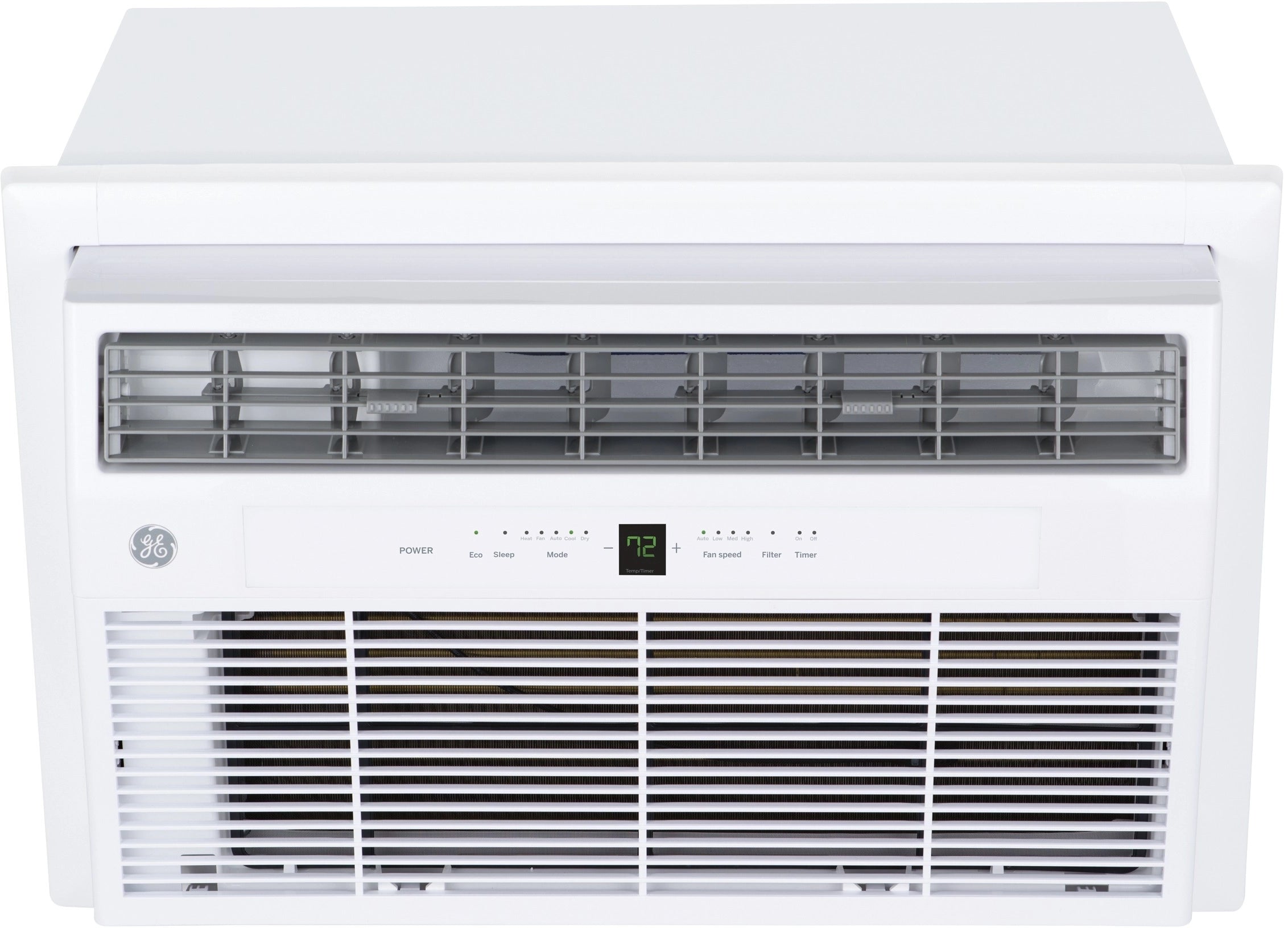

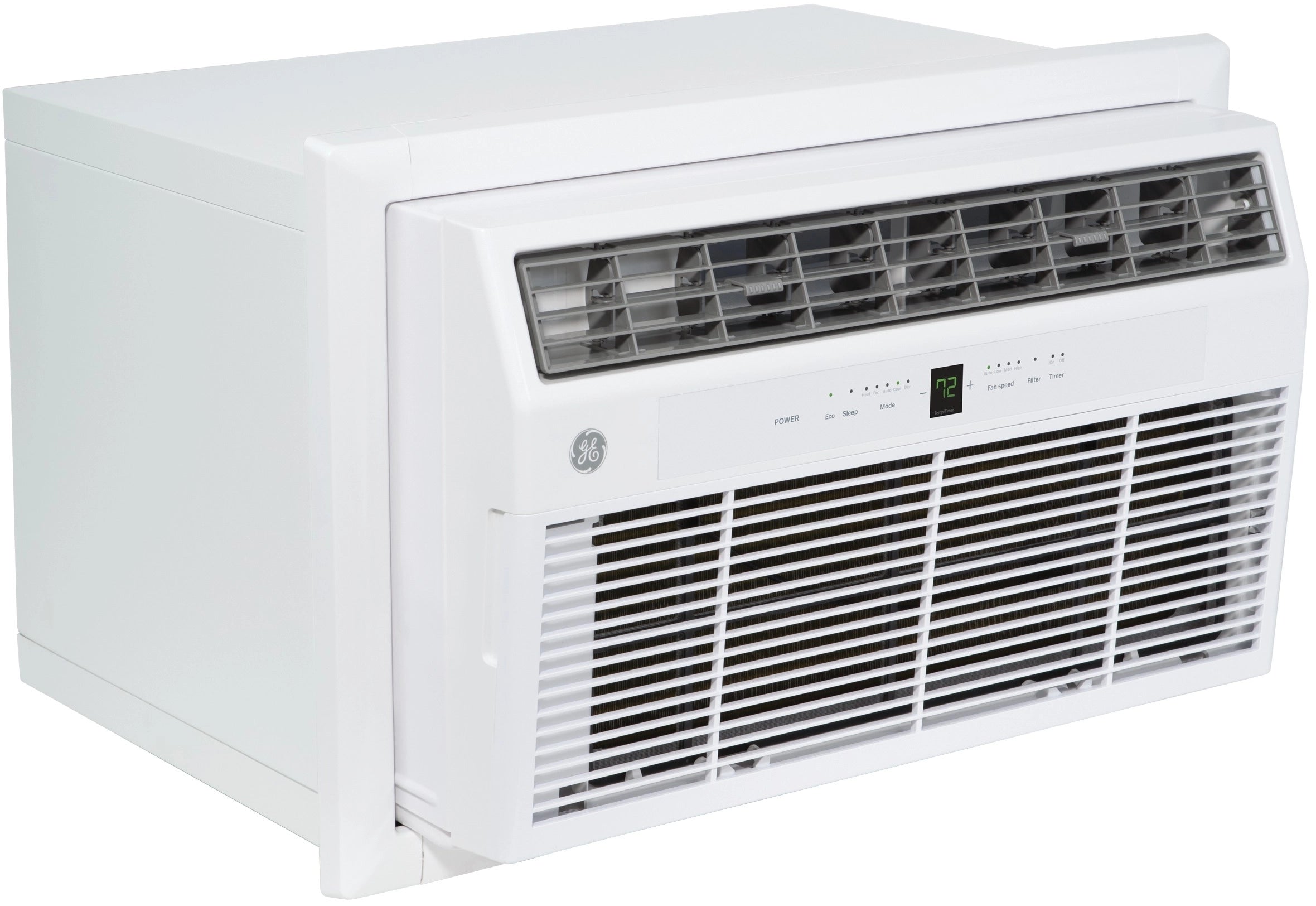

Ge Appliances AKEQ12DCH Built In Air Conditioner 12,000 BTU

Product Description

The GE Appliances AKEQ12DCH built-in air conditioner offers a true universal fit with simple slide-in installation for a precise fit into various wall sleeves. Features include ECO Mode for energy savings, Dry Mode for dehumidification, and a 3-speed fan for air comfort flexibility. It also has 6-way directional airflow and a washable filter to help remove dust and particles.

• True Universal Fit for easy installation
• Large LCD display for easy control
• Includes a remote control for convenient adjustments

Product Highlights

This built-in air conditioner provides both cooling and heating with multiple modes and fan speeds for optimal comfort and energy savings.

Product Information

Standard Information

• Brand: GE APPLIANCES
• Manufacturer Part Number: AKEQ12DCH

Technical Specifications

• ACCESSORIES: Wall Case RAB46/47/48/24 Required At Additional Cost
• Cooling BTUH (MAX): 12,000 Btu
• Cooling BTUH (MIN): 11,700 Btu
• Cooling EER (BTUH / Watt): 9.5
• Dehumidification (pts./hr.): 3.6
• Heating – Electric – BTUH – AHAM – 1R: 10600/8600
• Air Flow Volume CFM High/Medium/Low: 286/264/240
• Chassis Type: Fixed
• Cord Length: 48″
• Digital Time Temp Display: Yes
• Fan Speed Selections: 3 Cooling
  3 Fan Only

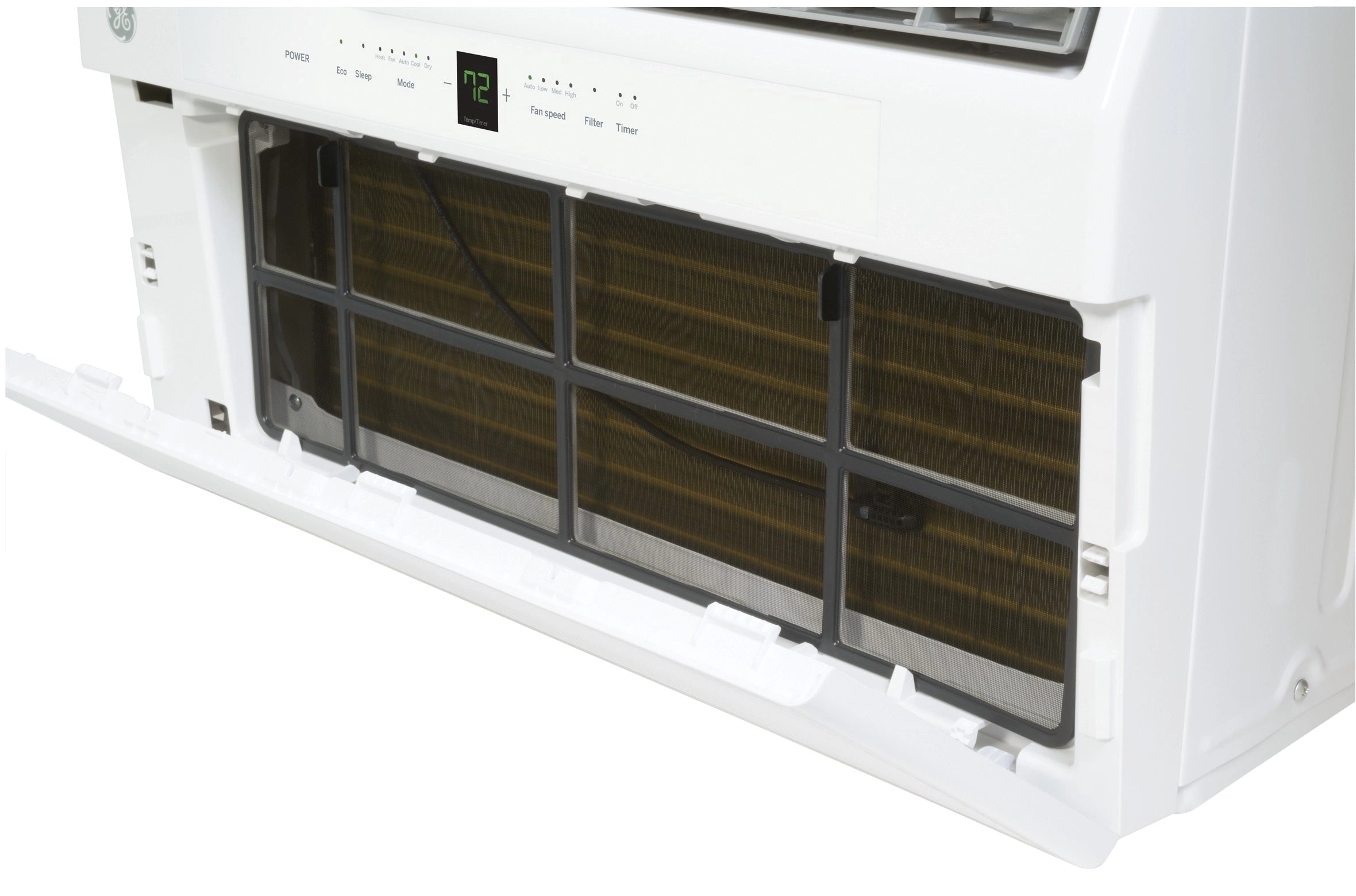

• Filter Type: Rigid
  Easy Access
  Washable
  Tilt-Out
• LCDI / AFCI power cord: Yes
• Louver Style: 6-Way
• Optional Grill: RAG13/RAG13A/RAG14E
• Plug Type: Perpendicular/NEMA 6-20
• Product Type: Built-In
• Refrigerant Type: R410A
• Room Air Conditioner Features: On/Off Timer
  Energy Saver
  Auto Fan
  Dehumidify Function
  Sleep Mode
  Infrared Remote Control
  Batteries Included
  Filter Indicator
  Rotary Compressor
• Thermostat Type: Thermistor
• Vent/Air Exchange Exhaust: Top
• CEER: 9.5
• Cooling – Rated Cooling Amps AHAM: 5.5/5.9
• Cooling – Watts: 1263/1232
• Heating – Electric – Heater Amps: 15.0/13.5
• Heating – Electric – Heater Watts: 3450/2821
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Voltage/Hertz/Phase: 230-208/60/1
• Labor Warranty: Limited 1-year entire appliance
  Limited 5-year sealed system
• Parts Warranty: Limited 2-year entire appliance
• Warranty Notes: See written warranty for full details
• Approximate Shipping Weight: 90 lb
• Depth to Louvers: 20.625 in
• Net Weight: 90 lb
• Overall Depth: 19 in
• Overall Height: 14.5625 in
• Overall Width: 24.0625 in
• Product Weight (lbs.): 90
• ENERGY STAR Certified: No
• Width (in.): 24.06
• Depth (in.): 19
• Height (in.): 14.56
• Frequency: 60
• Amp: 5.5/5.9
• Manufacturer Warranty: 2 Year
• Cord Length (in.): 48
• Voltage: 208/230
• Heater Included: No
• Auto Fan: Yes
• Batteries Included: Yes
• Dehumidify Function: Yes
• Energy Saver: Yes
• Filter Indicator: Yes
• Infrared Remote Control: Yes
• On/Off Timer: Yes
• Sleep Mode: Yes
• Built-In: Yes
• Eco Mode: Yes
• Air Discharge: Top
• Dry Mode: Yes
• Smart Compatible: No
• Wifi Capable: No
• Maximum CFM: 286
• BTU Cooling Rating: 12000
• BTU Heat Rating: 10600/8600
