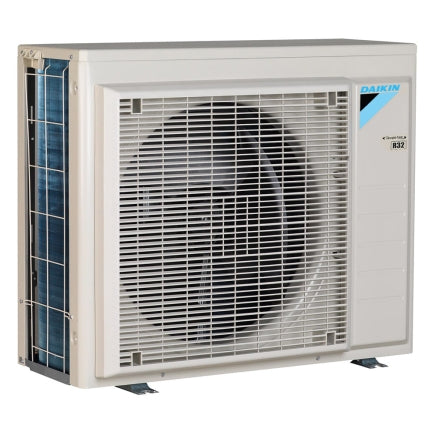

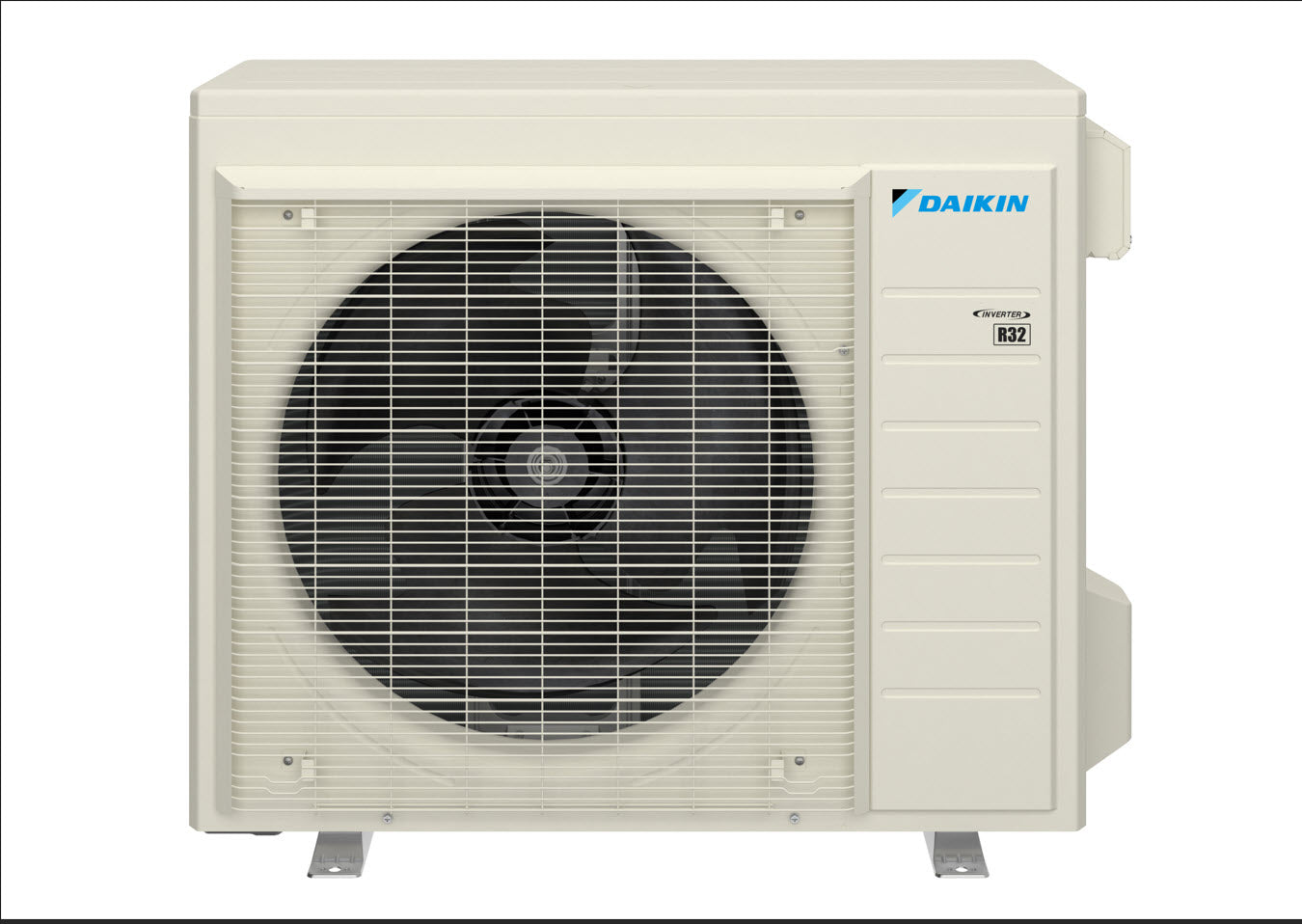

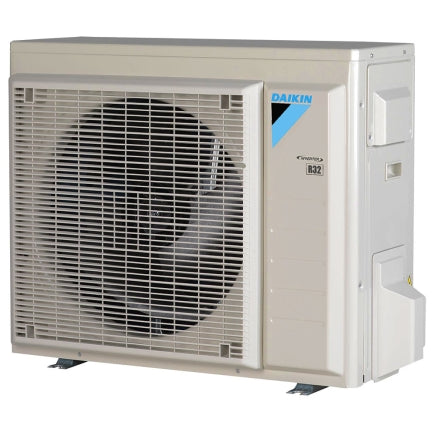

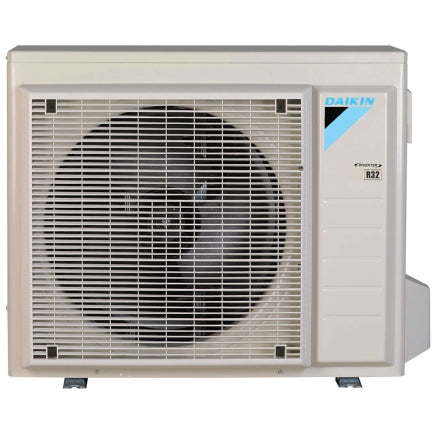

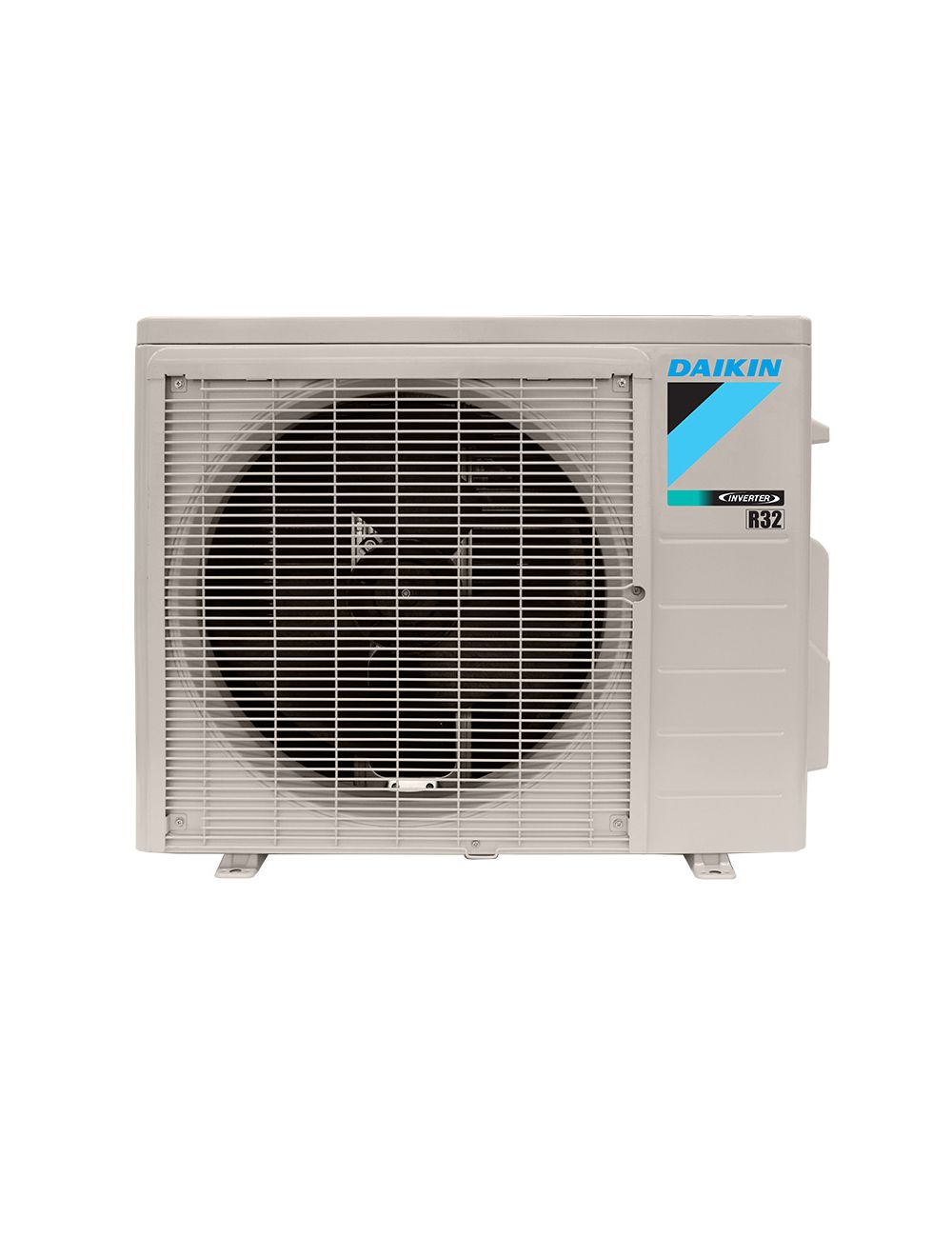

Daikin RXQ09ASBU9 Oterra 115V Heat Pump Ductless ODU 0.75 Ton

Product Description

The Daikin RXQ09ASBU9 Oterra 115V Heat Pump Ductless ODU is a 0.75 ton outdoor mini-split heat pump designed for single-zone residential use. It features a swing compressor and inverter system for efficient operation with R-32 refrigerant. The unit operates within a cooling range of 50 to 114.8°F and a heating range of 5 to 65°F.

• Quiet outdoor unit operation.
• Features a long compressor life.
• Saves on energy costs with efficient operation.

Product Highlights

This Daikin Oterra heat pump offers efficient and quiet heating and cooling for residential spaces, utilizing a swing compressor and inverter technology.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: RXQ09ASBU9
• Country of Origin: Mexico

Technical Specifications

• Brand: Daikin
• Model Number: RXQ09ASBU9
• Product Category: Ductless Mini-Splits
• Product Class – (PIM): Mini-Split Heat Pump
• System Family: Mini-Split
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: RXQ_ASBU9
• Series Name: Daikin Oterra 115V
• Model Efficiency: 20 SEER
• Family Description: 0.75-1 Ton Daikin Oterra 115V Heat Pump
• Compressor Stages: Inverter
• Compressor Type: Swing
• Refrigerant Type: R-32
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Power Phase: 1 Ph
• Cooling Operation Range – (Std. Max): 114.8 °F
• Cooling Operation Range – (Std. Min): 50 °F
• Heating Operation Range – (Std.Max): 65 °F
• Heating Operation Range – (Std.Min): 5 °F
• Rated Cooling Condition – (Ambient DB): 95 °F
• Rated Cooling Condition – (Ambient WB): 75 °F
• Rated Cooling Condition – (Room DB): 80 °F
• Rated Cooling Condition – (Room WB): 67 °F
• Rated Heating Condition – (Ambient DB): 47 °F
• Rated Heating Condition – (Ambient WB): 43 °F
• Rated Heating Condition – (Room DB): 70 °F
• Rated Heating Condition – (Room WB): 60 °F
• Cooling Capacity – (Max): 10500 Btu/H
• Cooling Capacity – (Min): 2800 Btu/H
• Cooling Capacity: 9000 Btu/H
• Heating Capacity – (Max): 12000 Btu/H
• Heating Capacity – (Min): 3800 Btu/H
• Heating Capacity: 10900 Btu/H
• Tonnage: 0.75
• Current Type: AC
• Fuse Size: 15 A
• Min. Circuit Amps: 14.9 A
• Max Overcurrent Protection: 15 A
• Air Flow Rate (High) – Cooling: 1233 ft³/min
• Air Flow Rate (High) – Heating: 1151 ft³/min
• Expansion Device: EEV
• Heat Exchanger Type: Air Cooled
• Sound Pressure (High) – Cooling: 48 dBA
• Sound Pressure (High) – Heating: 49 dBA
• Additional Refrigerant Charge – (oz/ft): 0.22
• Condensate Drain Outlet: 5/8 in
• Factory Std. Refrigerant Charge: 1.15 oz
• Pipe Size Gas: 3/8 in
• Pipe Size Liquid: 1/4 in
• Rated Height Difference: 50 ft
• Rated Piping Length: 50 ft
• Refrigerant Pre-Charged Line Length: 50 ft
• Standard Line Set Length – (Max): 66 ft
• Standard Line Set Length – (Vertical): 50 ft
• ETL Listed: Yes
• Proposition 65 Label: Yes
• Voltage: 120
• Amps: 14.9
• Circuit Breaker Size (Amps): 15
• Outdoor Unit Noise Level (dBA): 48
• Inverter Technology: Yes
• Line Set Liquid Line: 1/4″
• Line Set Suction Line: 3/8″
• Maximum Pipe Length (ft.): 66
• Max. Height Difference (Indoor / Outdoor) (ft.): 50
• Ambient Temperature Range – Cooling: 50°F – 115°F
• Ambient Temperature Range – Heating: 5°F – 65°F
• Min. Outdoor Temp for Heat °F: 5
• EER Rating: 12
• HSPF Rating: 9
• Mounting Type: Outdoor
• Nominal Capacity: 0.75T
• Power Source: 60 Hz, 1 Ph, 115 V
• SEER Rating: 20
• Series: Oterra
• Suction Line Size: 3/8 in
• Type: Heat Pump
• AHRI Number: 216504980
• Avg Coverage Area: Less than 500 Sq Ft
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF): 9
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Primary Heating Capacity: 10,001 – 15,000 BTU
• Refrigerant: R-32
• Cooling Efficiency (SEER2): 20
• System Application Type: Ductless Split Systems
• Warranty: 12 Year Parts
• Region Compatibility: Nationwide
• Discharge Line Size: 1/4 in
• Max Indoor Units: 1.0
• Inter Connecting Wires: 4
