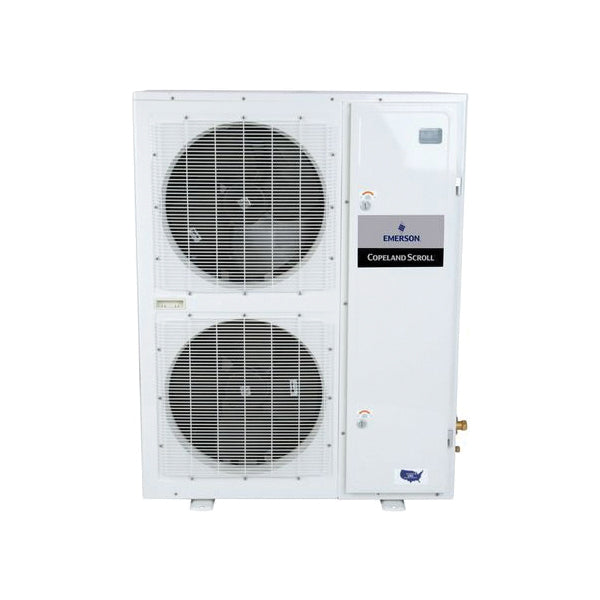

Copeland XFAM-025Z-TFC-081 condensing unit medium temp
$4,901.48
The Copeland XFAM-025Z-TFC-081 is a condensing unit designed for medium temperature applications. This unit provides essential features for effective operation with built-in protection against corrosion. Corrosion-resistant pre-painted enclosures.
Product Description
The Copeland XFAM-025Z-TFC-081 is a condensing unit designed for medium temperature applications. This unit provides essential features for effective operation with built-in protection against corrosion.
- Corrosion-resistant pre-painted enclosures.
- Equipped with electronic defrost control and external brass service valves.
- Features a variable speed fan and two-way Modbus communication.
Product Highlights
This condensing unit is factory tested for leaks and performance to ensure reliability. With a heated and insulated receiver and a pressure relief valve, it can handle demanding conditions.
Product Information
Standard Information
- Brand: Copeland
- MPN: XFAM-025Z-TFC-081
Technical Specifications
- Application: Medium Temp
- Chassis Size: 1 Fan
- Compressor Model: ZS19KAETF5118
- Connection Liquid: 1/2 S
- Connection Suction: 7/8 S
- Connection Type: ODS
- Horsepower: 2 1/2
- Maximum Fuse/Breaker Size: 30 Amps
- MCA: 18.2 Amps
- Oil Type: Polyol Ester
- Receiver Capacity: 9.1 Lbs (90% Full)
- Receiver Included: Yes
- Refrigerant: R22, R134a, R404A, R407A, R407C
- Voltage: 208/230-3-60
- Length: 40.59 in
- Width: 17.34 in
- Height: 33.03 in
- Shipping Weight: 245.00 Lbs
| Weight | 305.00 lbs |
|---|---|
| Brand | COPELAND |
| Voltage | 208-230/3/60 |
| Refrigerant | R22, R134a, R404A, R407A, R407C |
